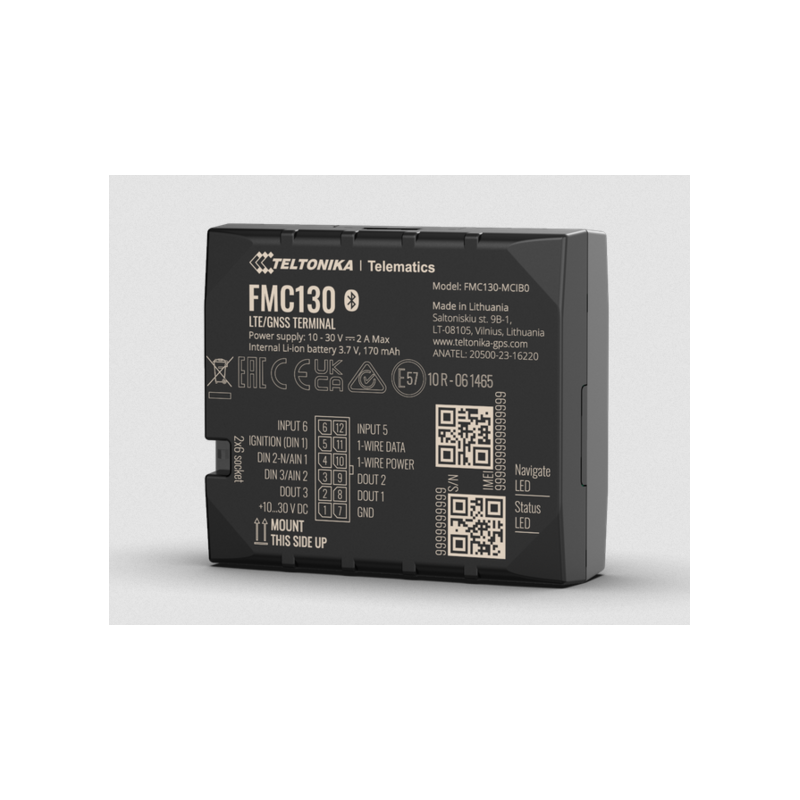

Teltonika FMC130 - GPS tracker for vehicles with 4G LTE Cat 1 communication

Description

FMC130 is an advanced 4G LTE Cat 1 GPS tracker designed for professional vehicle monitoring and fleet management. The device offers extensive remote monitoring capabilities, enabling real-time control of driving parameters, driving behavior, and vehicle status. With support for LTE, GSM, GNSS, and Bluetooth® LE, the tracker ensures stable communication and precise positioning in various conditions. The built-in GNSS receiver supporting multiple satellite systems guarantees high positioning accuracy, even in challenging urban environments.

FMC130 stands out due to its rich set of inputs and outputs, allowing integration with additional sensors and vehicle systems. CAN adapter support enables reading data from the vehicle’s CAN bus, including fuel consumption and engine operation information. The device also allows remote output control, e.g., for engine immobilization or activation of external equipment. A built-in accelerometer enables detection of events such as collisions, harsh acceleration, or vehicle towing.

With features such as geofencing, jamming detection, and parking monitoring, FMC130 significantly improves vehicle security. Multiple sleep modes help optimize power consumption and extend operating time. Its compact housing and wide operating temperature range make the device suitable for various environmental conditions. Additionally, configuration and firmware updates can be performed remotely via FOTA or locally via USB and Bluetooth. FMC130 is a versatile solution for transport companies, logistics providers, and individual users who require a reliable and functional vehicle tracking system.

Features

• Module: FMC130-ME1: MeiG SLM320-E1 with Teltonika TM2500; FMC130-ME3: MeiG SLM320-E2 with Teltonika TM2500; FMC130-MCIB0: MeiG SLM320-LA with Teltonika TM2500
• Technology: LTE (Cat 1) / 2G (GSM/GPRS) / GNSS / Bluetooth® LE
• GNSS: GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
• Receiver: 33 tracking channels, 99 acquisition channels
• Tracking sensitivity: -165 dBm
• Position accuracy: < 2.5 m CEP
• Speed accuracy: < 0.1 m/s (±15%)
• Hot start: < 1 s; warm start: < 25 s; cold start: < 35 s
• LTE bands (ME1): B1/B3/B5/B7/B8/B20; LTE-TDD: B38/B40/B41
• LTE bands (ME3): B1/B3/B7/B8/B20/B28; LTE-TDD: B38/B40/B41
• LTE bands (MCIB0): B1/B2/B3/B4/B5/B7/B8/B20/B28; LTE-TDD: B40
• 2G bands: GSM B2/B3/B5/B8
• Data transfer: LTE up to 10 Mbps (DL) / 5 Mbps (UL), GSM up to 85.6 kbps
• Data support: SMS (text/data)
• Transmit power: GSM 850/900: 33±2 dBm; GSM 1800/1900: 30±2 dBm; LTE: 23±2.7 dBm
• Bluetooth: 4.0 + LE
• Supported Bluetooth devices: temperature and humidity sensors, OBDII, barcode scanners, BLE sensors
• Digital inputs: 3
• Negative inputs: 1 (Digital Input 2)
• Pulse inputs: 2 (Digital Input 1, Digital Input 2)
• Digital outputs: 3
• Analog inputs: 2
• CAN input: 1
• 1-Wire interface: 1
• Antennas: internal high-gain GNSS and GSM
• USB: 2.0 Micro-USB
• SIM: Micro-SIM or eSIM
• Memory: 128 MB Flash
• Sensors: accelerometer
• Functions: geofencing, jamming detection, fuel monitoring, collision detection, immobilizer, driving behavior monitoring, disconnection detection
• Operating modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
• Configuration: FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth)
• Time synchronization: GNSS, NITZ, NTP
• Fuel monitoring: LLS, LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII
• Ignition detection: digital input, accelerometer, voltage, RPM
• Power supply: 10–30 V DC with overvoltage protection
• Battery: 170 mAh Li-Ion 3.7 V
• Fuse: 3A, 125V
• Power consumption: from <3 mA (Ultra Deep Sleep) to <250 mA (max)
• Operating temperature: -20 °C to +85 °C (without battery), -20 °C to +40 °C (with battery)
• Operating humidity: 5% to 95% non-condensing
• Protection rating: IP41
• Dimensions: 65 x 56.6 x 20.6 mm
• Weight: 61 g
