Low-noise RF amplifier 10 MHz – 6 GHz ZK06-UM Zeenko UM Series, USB-C
ID: 1201360
5902186331549
zł55.69
Tax included
zł45.28 tax excl.
Zeenko ZK06-UM is a precise, wideband RF amplifier for the 10 MHz – 6 GHz range, designed for high-sensitivity measurements with low interference. Powered via USB-C and optimized for use with devices such as the tinySA ULTRA, it offers high linearity and a low noise figure across the entire supported band.
Description

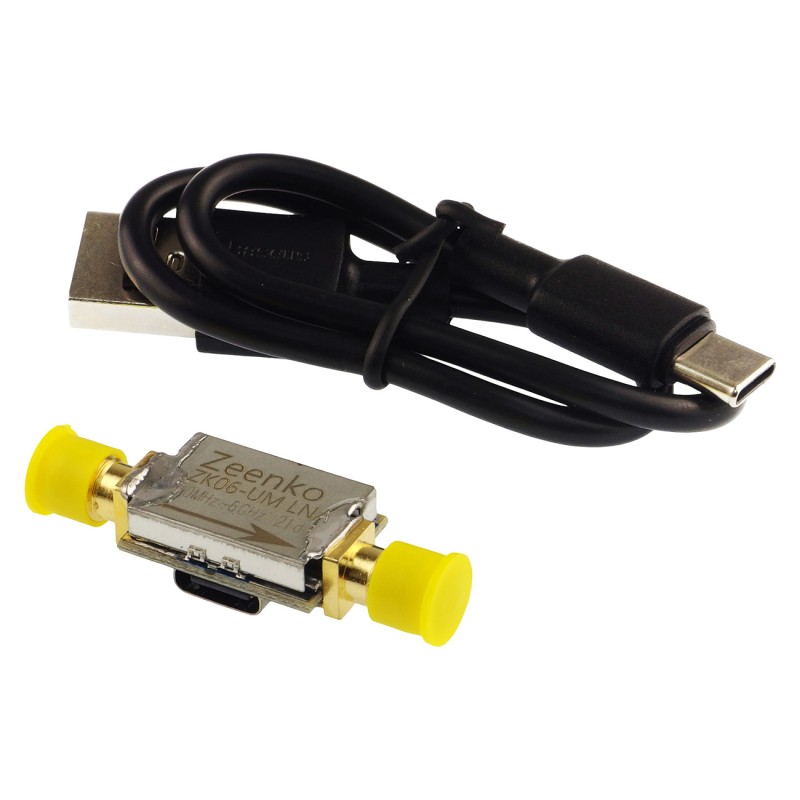

The ZK06-UM is a wideband low-noise amplifier (LNA) from Zeenko designed to operate in the 10 MHz – 6 GHz band. Powered via a USB Type-C connector, the module features good gain flatness across 1–6 GHz and a low noise figure, making it suitable for RF applications, including use as an external preamplifier for the tinySA ULTRA spectrum analyzer for measurements up to 5.8 GHz.
The circuit allows precise parameter tuning thanks to adjustable supply current via an external bias resistor. High OP1dB and OIP3 values ensure strong overload resistance and good signal quality in laboratory and hobbyist applications. It can serve as a replacement for popular devices such as the QPL9503 and QPL9504.
Properties
- Frequency range: 10 MHz – 6 GHz
- Power supply: USB Type-C, 5 V
- Supply current: 80 mA (adjustable via external resistor)
- Gain:
- 5 dB @ 100 kHz
- 23.5 dB @ 5 MHz
- 27 dB @ 10 MHz
- 25.5 dB @ 100 MHz
- 22.5 dB @ 1 GHz
- 22.5 dB @ 2 GHz
- 21 dB @ 3 GHz
- 22 dB @ 4 GHz
- 23 dB @ 5 GHz
- 22.5 dB @ 6 GHz
- Noise figure (NF):
- 2.3 dB @ 10 MHz
- 0.8 dB @ 100 MHz
- 0.6–1.0 dB in the 1–6 GHz range
- OP1dB (1 dB compression point):
- 16 dBm @ 10 MHz
- 18 dBm @ 100 MHz – 4 GHz
- 17 dBm @ 5 GHz
- 16 dBm @ 6 GHz
- OIP3 (third-order intercept point):
- 26 dBm @ 10 MHz
- 32–34 dBm @ 100 MHz – 3 GHz
- 31 dBm @ 5 GHz
- 25 dBm @ 6 GHz
- Enclosure: compact, shielded
- Notes: good gain flatness from 1–6 GHz, low noise
- Compatibility: recommended as a preamplifier for tinySA ULTRA 5.8 GHz
- Possible replacements: QPL9503, QPL9504
