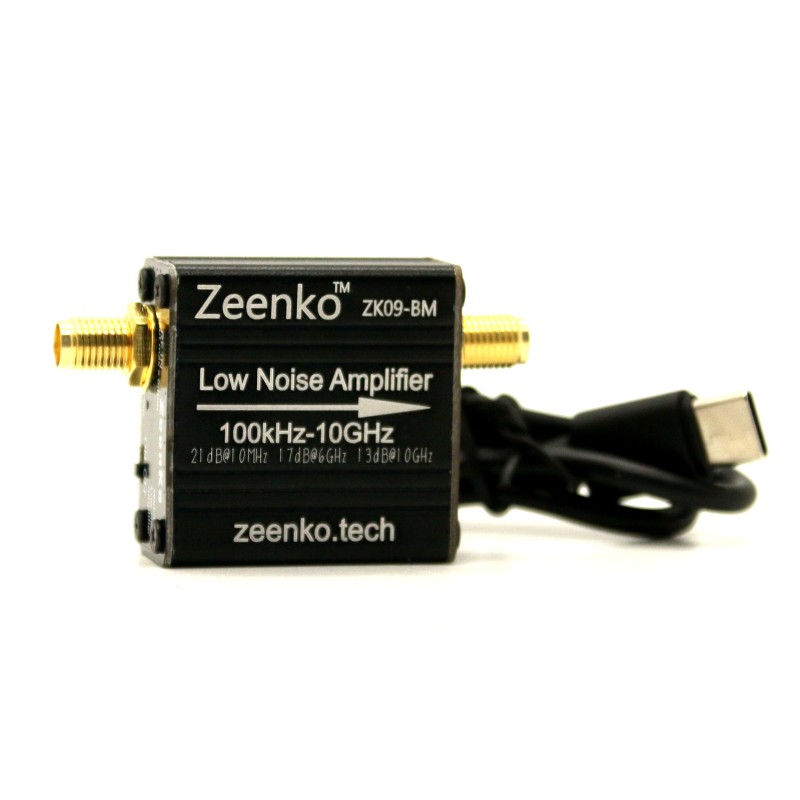

Zeenko ZK09-BM is a low-noise, ultra-wideband RF amplifier with an operating range up to 10 GHz, powered by a built-in battery. Thanks to its good linearity and noise performance, it is used in measurements, receiver paths and communication systems. Compact and mobile, it will work well both in laboratories and in the field.

6 weeks
Awaiting delivery

Description

ZK09-BM is an ultra-wideband low-noise RF amplifier by Zeenko from the BM series, operating in the range from 100 kHz to 10 GHz. The version with a built-in battery allows up to 5 hours of mobile operation and is charged with a current of 210 mA. The module is characterized by stable gain, good bandwidth flatness and a low noise level across the entire frequency range.

ZK09-BM is designed for demanding RF applications – measurement, communication and laboratory. It can be used as a direct replacement for the popular amplifiers: ADM-8095, ADM-8625 and HMC8413.

Properties

  • Frequency range: 100 kHz – 10 GHz
  • Power supply: built-in battery
  • Charging current: 210 mA
  • Total current consumption: 260 mA
  • Battery operating time: up to 5 hours
  • Gain:
  • 21 dB @ 100 kHz
  • 21.5 dB @ 5–100 MHz
  • 21.5 dB @ 1–2 GHz
  • 18 dB @ 3 GHz
  • 20 dB @ 4 GHz
  • 17.5 dB @ 5 GHz
  • 16.5 dB @ 6 GHz
  • 15 dB @ 7 GHz
  • 14 dB @ 8 GHz
  • 13 dB @ 9–10 GHz
  • Noise figure (NF):
  • 6.7 dB @ 10 MHz
  • 2.2 dB @ 100 MHz
  • 2.0–3.9 dB in the range 1–10 GHz
  • OP1dB (output power at 1 dB compression):
  • 11 dBm @ 10 MHz
  • 13 dBm @ 100 MHz – 3 GHz
  • 12–9 dBm @ 4–10 GHz
  • OIP3 (third-order intercept point):
  • 24 dBm @ 10 MHz
  • 23 dBm @ 100 MHz
  • 22 dBm throughout the range from 1 GHz to 10 GHz
  • Notes: ultra-wideband, low-noise, good flatness
  • Can be used as a replacement for: ADM-8095, ADM-8625, HMC8413
