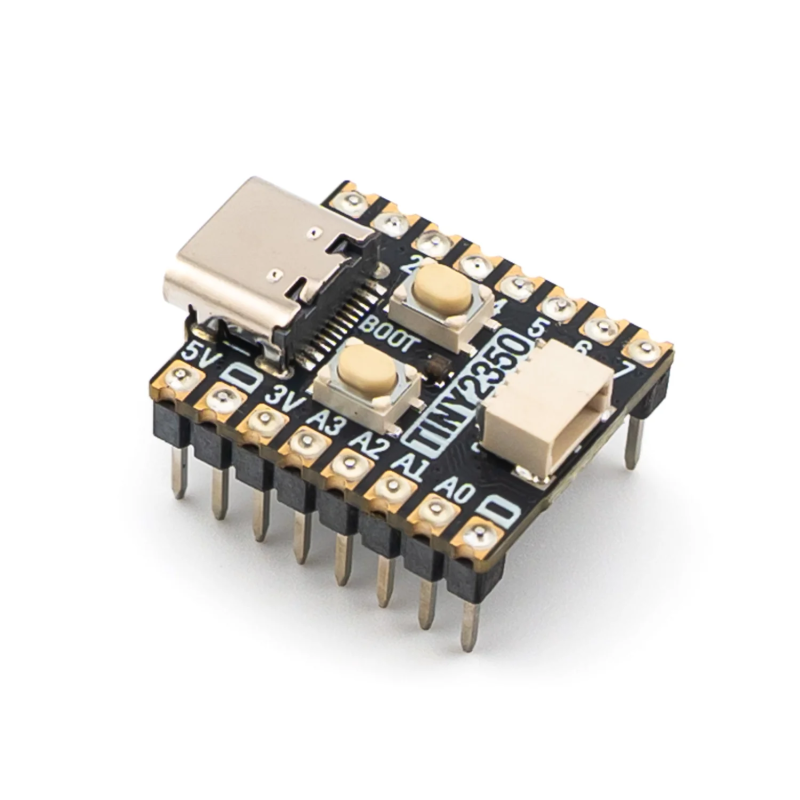

Pimoroni Tiny 2350 development board – RP2350, 4MB Flash, USB-C, Headered – PIM766
ID: 1199006
769894026618
zł79.00
Tax included
zł64.23 tax excl.
Pimoroni Tiny 2350 PIM766 in the Headered version is a compact development board with the RP2350A, 4 MB of flash memory and a USB-C connector, created for miniature projects. Thanks to the integrated pins, support for MicroPython and the Qw/ST port, it works well in prototyping portable devices and wearables.
Description
A miniature development board based on the RP2350A chip, equipped with a USB-C connector and 4 MB of QSPI flash memory, designed for mobile projects, wearable devices and integration with custom PCBs. The version with factory-soldered pin headers enables convenient use on a breadboard or easy wire connection. The board offers 12 GPIO pins, including 4 ADC channels with 12-bit resolution, a programmable RGB LED, a RESET button and a BOOT button, which can serve as a user button. Additionally, a Qw/ST connector for I2C devices is integrated. Power and programming are done via USB-C. Compatible with Raspberry Pi Pico 2 firmware and supporting programming in C/C++ and MicroPython.
Properties
- RP2350A chip (Dual Arm Cortex M33, up to 150 MHz, 520 KB SRAM)
- 4 MB QSPI flash memory with XiP support
- USB-C connector for power, programming and data transmission
- Programmable RGB LED
- Qw/ST connector (Qwiic/STEMMA QT) for I2C devices

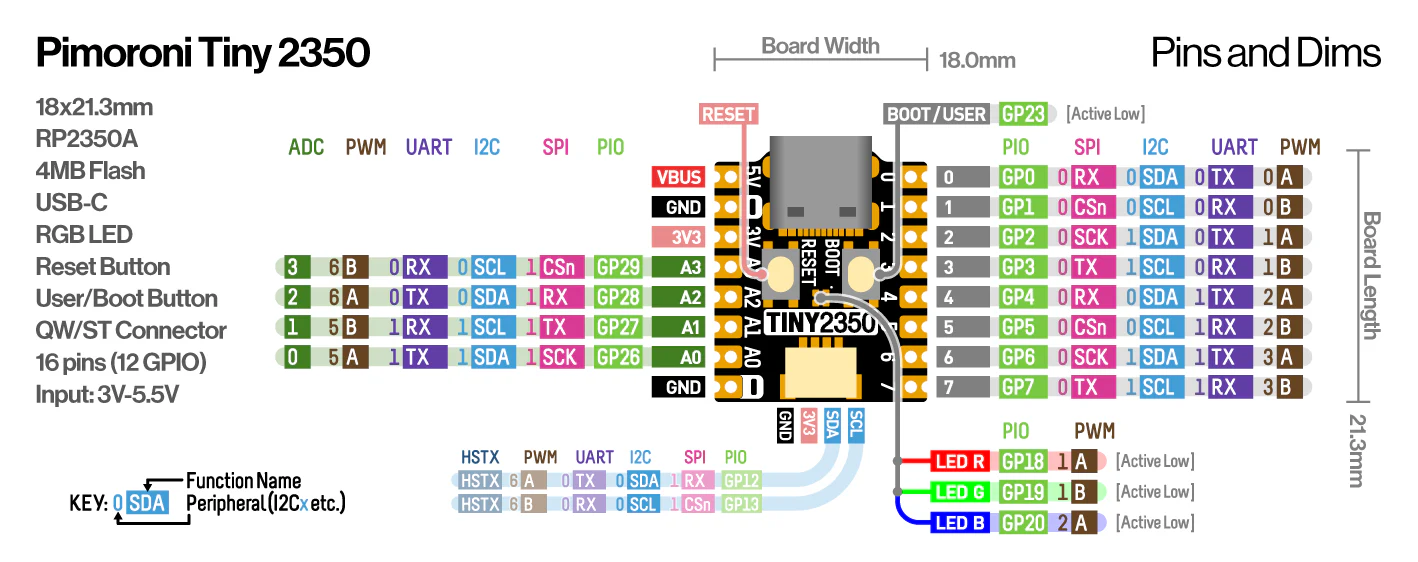

- 12 GPIO pins (including 4x 12-bit ADC inputs)
- RESET and BOOT buttons (BOOT can act as a user button)
- Built-in 3.3 V regulator (max current output 300 mA)
- Supply voltage range: 3 V – 5.5 V
- Support for C/C++ and MicroPython
- Dimensions: 22.9 x 18 x 5.8 mm (length x width x height with USB-C port)
1199006
Data sheet
- Microcontroller
- RP2350
- Flash memory
- 4 MB
- Number of I/O
- 12
- Ethernet
- none
- WiFi/BT module
- No
- Bluetooth module
- No
- MicroSD slot
- No
- Length
- 22,9 mm
- Width
- 18 mm
- USB connector type
- USB type C
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
