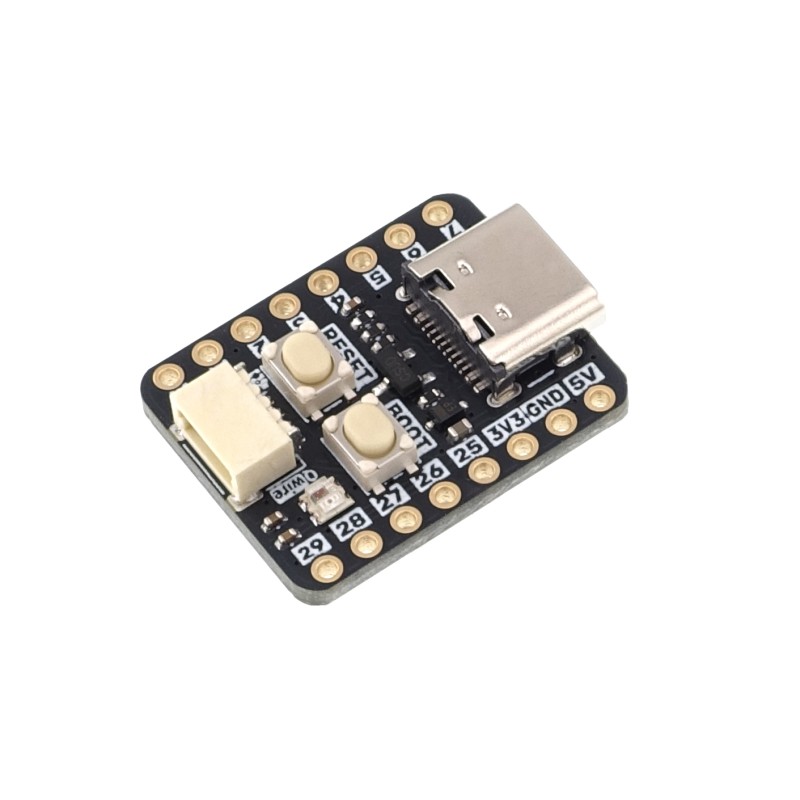

KAmod RP2040 - Miniature module with Raspberry RP2040 microcontroller and 16MB flash
ID: 1200042
5902186328631
zł22.21
Tax included
zł18.06 tax excl.
Miniature KAmod RP2040 module with Raspberry RP2040 microcontroller and 16 MB flash memory provides high computing performance in a compact format. Suitable for educational, hobbyist, and prototyping applications of devices with USB, I2C, SPI, and UART communication.
Description
Miniature module equipped with a Raspberry RP2040 microcontroller with two ARM Cortex-M0+ cores clocked up to 133 MHz and 264 kB of SRAM memory. The integrated 16 MB QSPI flash memory allows for handling extensive applications and scripts utilizing the full potential of the RP2040. The module features a USB-C connector used both for power supply and programming in Drag&Drop mode or through environments such as Arduino IDE. The board includes Reset and Boot buttons, a WS2812 LED, and an I2C Qwire connector in JST SH 4-pin 1 mm standard, compatible with the Qwiic and STEMMA QT ecosystems. Compact dimensions allow for easy integration into projects requiring minimal mounting space. The module offers 15 GPIO pins and a full set of communication interfaces, including SPI, I2C, UART, ADC, and PWM.
Features
- RP2040 microcontroller designed by Raspberry Pi
- Two ARM Cortex-M0+ cores clocked up to 133 MHz
- RAM: 264 kB
- USB 1.1 Host/Device
- RTC
- 3.3 V 250 mA voltage regulator
- 16 MB external flash memory
- Built-in USB Type-C connector for power supply and programming
- Reset and Boot buttons
- Drag&Drop programming in USB mass storage mode
- WS2812 LED
- 15 GPIO pins
- Extensive communication interfaces: 2 x SPI, 2 x I2C, 2 x UART
- ADC converter 4 x 12-bit
- PWM outputs, max 13 channels
- I2C Qwire connector type JST SH 4-pin 1 mm (compatible with Qwiic / STEMMA QT)
- Dimensions: 18 x 22 mm
1200042
Data sheet
- Microcontroller
- RP2040
- Flash memory
- 16 MB
- Number of I/O
- 15
- Ethernet
- none
- WiFi/BT module
- No
- Bluetooth module
- No
- MicroSD slot
- No
- Length
- 22 mm
- Width
- 18 mm
- USB connector type
- USB type C
Manufacturer BTC Korporacja sp. z o. o. Ludwinowo Zegrzyńskie 52G 05-140 Ludwinowo Zegrzyńskie Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Ludwinowo Zegrzyńskie 52G 05-140 Ludwinowo Zegrzyńskie Poland sprzedaz@kamami.pl 22 767 36 20
