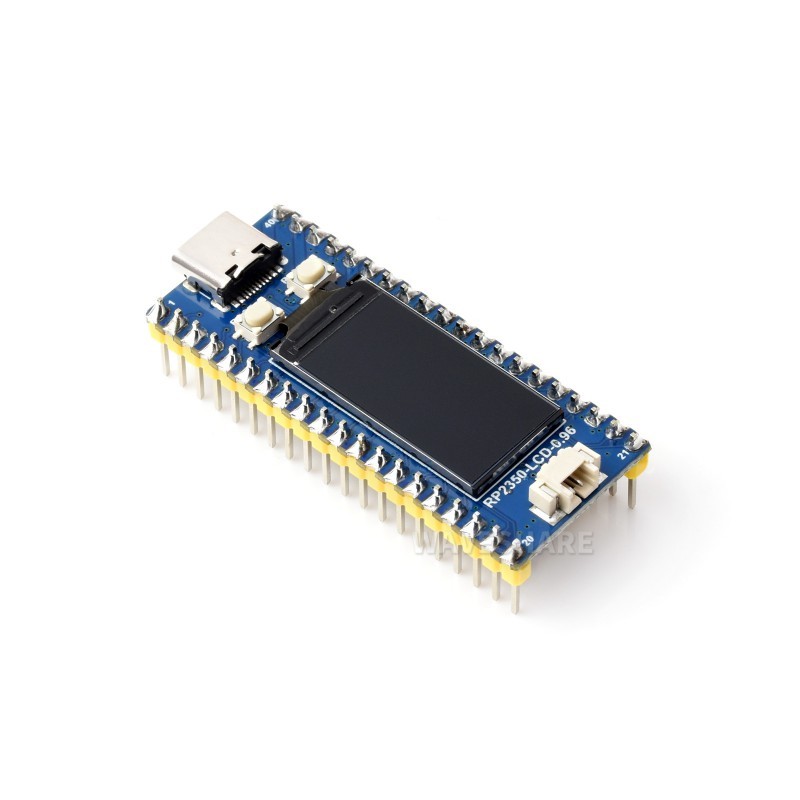

RP2350-LCD-0.96 development board with 160×80 display - Waveshare 29438
ID: 1197547
5902186307667
zł45.42
Tax included
zł36.93 tax excl.
RP2350-LCD-0.96-M is a versatile development board with a display, designed for projects based on RP2350A microcontrollers. It supports multiple interfaces and programming languages, features pre-soldered headers, and is compatible with Pico HAT modules, making it ideal for prototyping embedded systems, portable devices, and educational projects.
Description
The RP2350-LCD-0.96-M module features the RP2350A microcontroller and an integrated 0.96-inch color LCD display (160×80 px). Built on the Raspberry Pi Pico 2 architecture, it comes with pre-soldered goldpin headers. The dual-core microcontroller combines ARM Cortex-M33 and Hazard 3 RISC-V cores, operating at up to 150 MHz. Supports Raspberry Pi’s MicroPython and C/C++ SDK. Additionally, it includes a Li-Ion battery charging circuit and a buck-boost DC-DC converter.
Features
- Microcontroller: Raspberry Pi RP2350A, 2× ARM Cortex-M33 + 2× RISC-V Hazard 3
- Clock frequency: up to 150 MHz
- Memory: 520 KB SRAM, 4 MB Flash
- Display: 0.96" IPS LCD, 160×80 px, 65K colors
- USB interface: USB 1.1 host/device, USB-C connector
- Li-Ion battery connector 3.7 V (MX1.25) with charging and power function
- MP28164 DC-DC buck-boost converter, 2 A
- GPIO headers: 26 multifunction pins
- Peripherals: 2× SPI, 2× I2C, 2× UART, 4× 12-bit ADC, 16× PWM
- Built-in temperature sensor, real-time clock, and timers
- 12 programmable PIO (programmable I/O) states
- Power-saving modes (sleep, dormant)
- Drag-and-drop programming support
- Header layout compatible with Raspberry Pi Pico 2
1197547
Data sheet
- Microcontroller
- RP2350
- Flash memory
- 4 MB
- Number of I/O
- 26
- Ethernet
- none
- WiFi/BT module
- No
- Bluetooth module
- No
- MicroSD slot
- No
- Length
- 51mm
- Width
- 21 mm
- USB connector type
- USB type C
