Adafruit Feather RP2040 - board with RP2040 microcontroller
search
  • Adafruit Feather RP2040 - board with RP2040 microcontroller
  • Adafruit Feather RP2040 - board with RP2040 microcontroller
  • Adafruit Feather RP2040 - board with RP2040 microcontroller
ID: 583888
5906623430000
zł79.03
Tax included

zł64.25 tax excl.

The board with the RP2040 microcontroller equipped with two ARM Cortex-M0+ cores, which work at a frequency of 133 MHz, 256 kB RAM. The board also has 8 MB of QSPI flash memory. The system can be programmed in C/C++ or MicroPython. Adafruit 4884

24h
Available
Available quantity: 5
Kamami is the official distributor of Adafruit modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

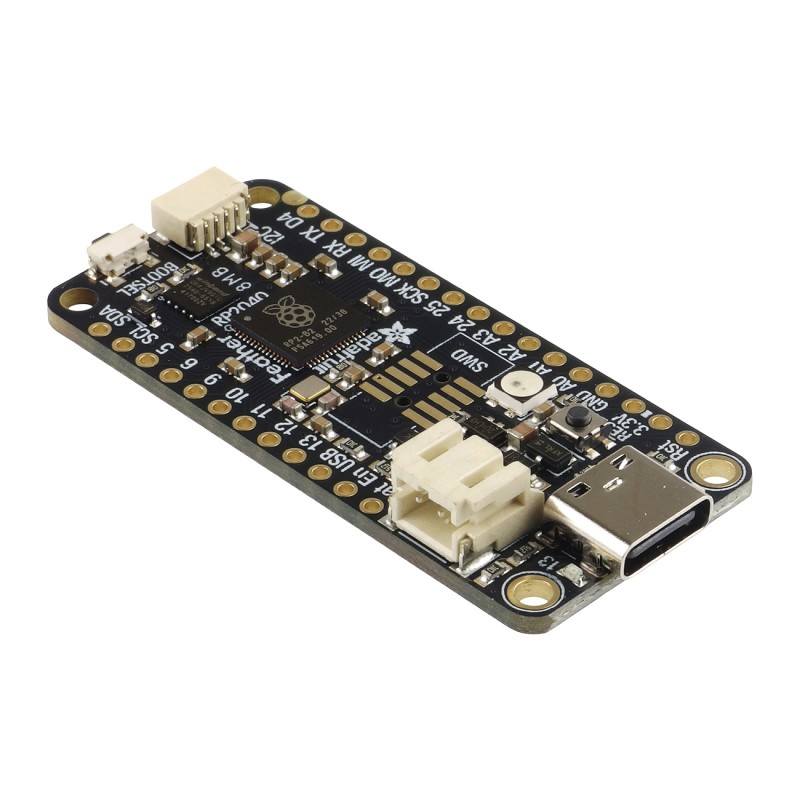

Adafruit Feather RP2040 is a board equipped with the RP2040 microcontroller designed by the Raspberry Pi foundation. The system has two ARM Cortex M0+ cores operating at a frequency of 133 MHz and 256 KB of RAM. The microcontroller is not equipped with flash memory, but on the board there is an external memory with a capacity of 8 MB connected via QSPI interface.

On the board, in addition to the RP2040 system and Flash memory, the user will find a 3.3 V voltage stabilizer, Boot and Reset buttons, LED and RGB NeoPixel diodes, a USB type C connector for powering and programming the module, and 21 GPIO outputs with such parameters. as four 12-bit ADC inputs, 16 PWM outputs, two I2C, SPI and UART interfaces.

The platform supports the popular MicroPython and C/C++ programming languages. Programs can be loaded to the memory via the USB interface using the built-in UF2 bootloader or an external programmer via the SWD interface.

Features

  • RP2040 microcontroller designed by Raspberry Pi
    • Dual ARM Cortex-M0+ cores clocked up to 133 MHz
    • 264 kB of onboard SRAM
    • Real time clock (RTC)
  • Voltage regulator 3.3 V 500 mA
  • Battery charging circuit 200 mA
  • Built-in USB Type-C connector for programming with USB 1.1, operating in Host and Device modes
  • 21 x multi-functional GPIO pins
    • 4 x 12-bit ADC inputs with internal temperature sensor, 0.5 MSa / s
    • 16 PWM channels
    • 2 x UART
    • 2 x I2C
    • 2 x SPI
  • Reset and Boot buttons
  • LEDs and NeoPixel
  • STEMMA QT connector compatible with Qwiic and Grove systems
  • SWD interface connector
  • 8 MB external flash memory
  • Supported programming languages: MicroPython and C/C++
  • Dimensions: 50.8 x 22.8 x 7 mm
583888

Data sheet

Microcontroller
RP2040
Flash memory
8 MB
Number of I/O
21
Ethernet
none
WiFi/BT module
No
Bluetooth module
No
MicroSD slot
No
Length
50,8 mm
Width
22,8 mm
USB connector type
microUSB type B
