reSpeaker Flex XVF3800 - audio module with XMOS XVF3800 processor and microphone array - Seeed Studio 100099135
ID: 1205294
zł246.93
Tax included
zł200.76 tax excl.
A microphone array module designed for AI, robotics, and voice interface applications. It utilizes an XMOS XVF3800 processor and four MEMS microphones to deliver real-time audio processing with features such as noise reduction, echo cancellation, beamforming, and sound source direction detection. Its voice detection range is up to 5 meters, and its 180° pickup pattern enables precise spatial speech capture. Integration with the XIAO ESP32S3 and support for USB and I2S make the module easy to implement in embedded projects and voice control systems. Seeed Studio 100099135
Description
reSpeaker Flex XVF3800 Linear-4 is an advanced microphone array module designed for applications in robotics, embedded systems, and interactive HMI devices. The device is based on the XMOS XVF3800 processor, which delivers high-quality real-time audio signal processing. Thanks to built-in AI algorithms such as noise suppression (NS), echo cancellation (AEC), and beamforming, the module significantly enhances captured audio quality. The split-design construction, separating the processing unit from the microphone array, allows flexible placement of components in robotic projects and space-constrained devices.
The version supports integration with XIAO ESP32S3 (not included), enabling direct compatibility with MCU ecosystems such as Arduino and ESPHome, which simplifies rapid deployment of voice-based projects. Support for USB and I2S modes ensures wide compatibility with computers, Raspberry Pi, NVIDIA Jetson, and microcontrollers. The 4-microphone array enables precise sound capture within a 180° range, making it ideal for front-facing applications such as information kiosks or control panels.
The system offers a voice capture range of up to 5 meters, allowing convenient voice control in larger spaces without the need to be close to the device. Thanks to DoA (Direction of Arrival) technology, it is possible to determine the direction of the sound source, improving interaction precision in robotics and AI systems. The module is designed for professional applications, offering high resistance to interference and stable operation even in challenging acoustic environments. Built-in interfaces and DFU support enable easy firmware updates and device customization. The reSpeaker Flex XVF3800 Linear-4 is a comprehensive solution for projects requiring advanced voice recognition and processing.
Features
- Main chipset: XMOS XVF3800
- Amplifier: Texas Instruments TPA3139D2, supports speakers up to 10 W
- Audio algorithms: AEC, AGC, DoA, beamforming, VAD, noise suppression, de-reverberation

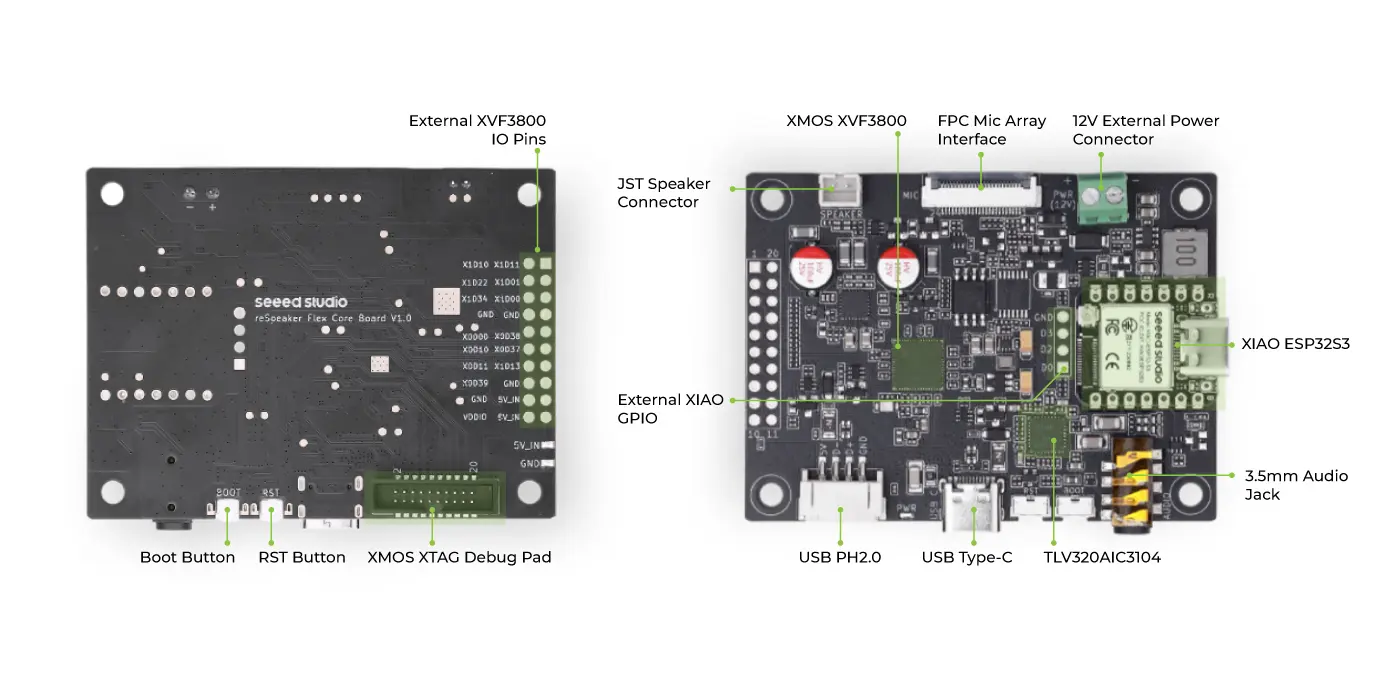

- Interfaces:
- USB Type-C (external connection and debugging)
- USB JST connector (internal signal routing and motherboard integration)
- XIAO-compatible pins (XIAO not included)
- XMOS XVF3800 XTAG debug pins
- XMOS XVF3800 I/O pins
- Audio outputs: 1× 3.5 mm audio jack, 1× 2-pin speaker connector
- Power supply: 5 V via USB Type-C or 5 V via JST connector; 12 V input via 2-pin terminal connector
- Microphone array interface: 1× 24-pin FPC connector
- Buttons: 1× reset button, 1× boot button
- Maximum sampling rate: 16 kHz

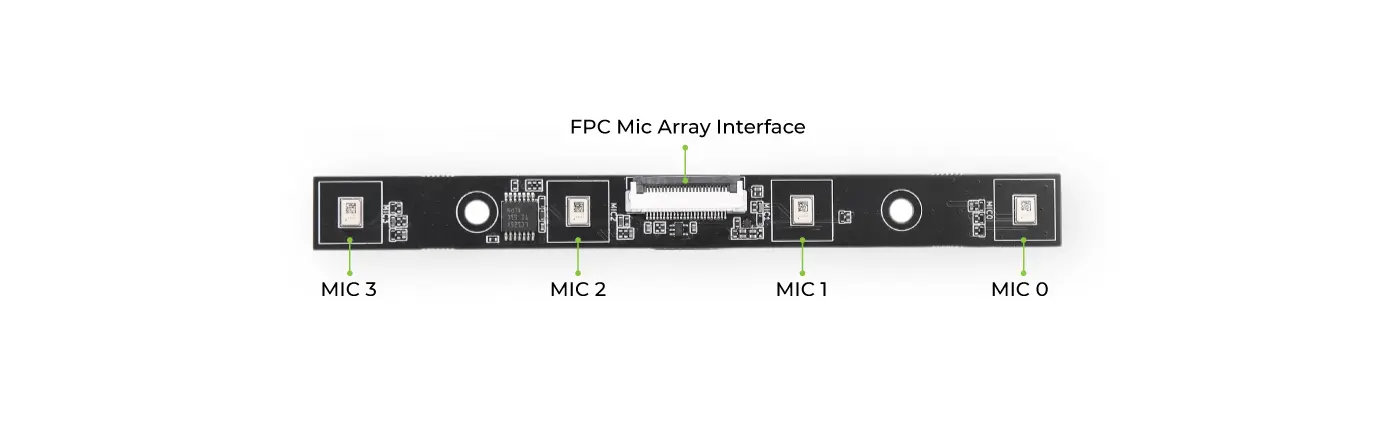

- Microphones: 4× high-performance MEMS PDM microphones
- Array topology: linear microphone array with 33 mm spacing
- Directional characteristic: 180° directional sound capture
- Voice capture range: up to 5 meters
- Mounting: 2× M3 mounting holes

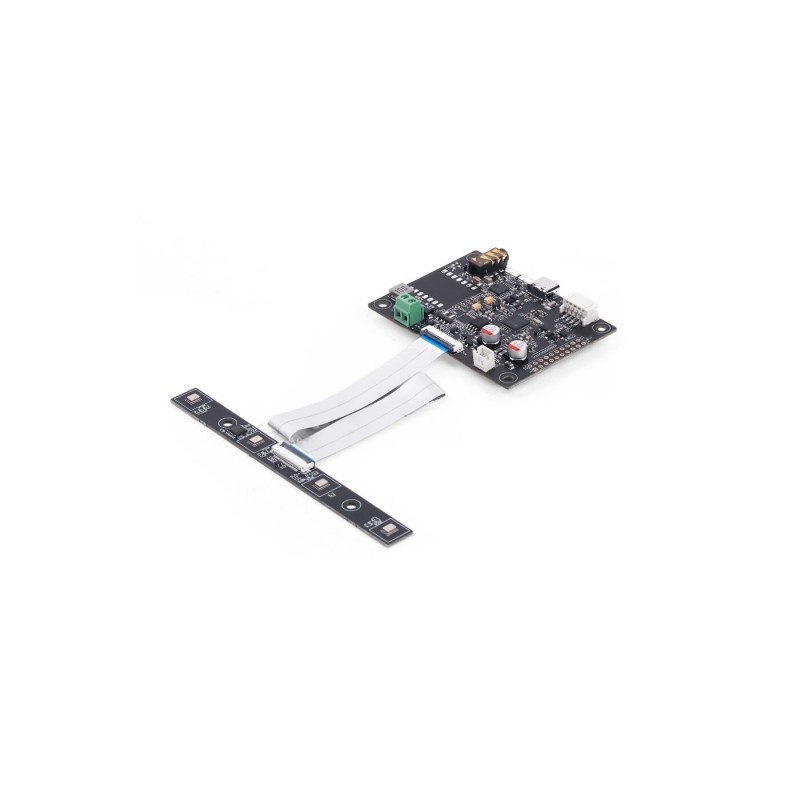

Kit contains
- reSpeaker Flex Core module
- reSpeaker Flex Linear Mic Array module
- 20 cm FPC cable
- Connector
1205294
