Digital Multimeter Vorel 81780
ID: 1202871
5906083817809
zł16.90
Tax included
zł13.74 tax excl.
Digital universal multimeter with manual range selection, designed for measuring AC and DC voltage up to 500 V, DC current up to 5 A, resistance up to 2 MΩ, as well as diode testing and hFe transistor measurement. Vorel 81780
Description

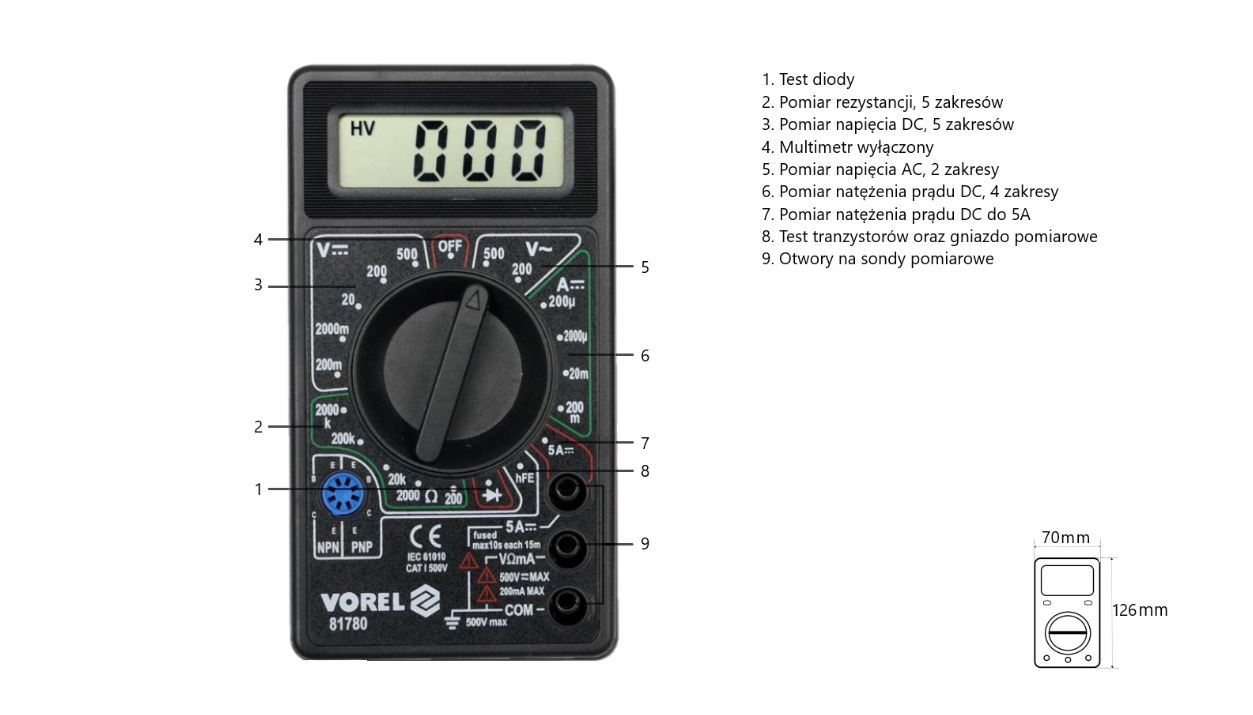

The Vorel 81780 is a digital universal multimeter intended for basic electrical measurements in installation, service, and workshop applications. The device operates with manual range selection and allows measurement of AC and DC voltage up to 500 V, DC current up to 5 A, and resistance up to 2 MΩ.
The multimeter supports diode testing and current gain (hFe) measurement for PNP and NPN transistors using a built-in transistor test socket. A clear LCD display with a maximum reading of 1999 counts ensures easy result interpretation, while integrated overload protection enhances operational safety. The Vorel 81780 is suitable for basic diagnostics of electrical circuits, installation checks, and educational or hobbyist applications.
Features
- Device type: Digital multimeter
- AC voltage measurement range: 0–500 V AC
- DC voltage measurement range: 0–500 V DC
- DC current measurement range: 0–5 A DC
- Resistance measurement range: 0–2 MΩ
- Diode test: Yes
- Transistor hFe test: PNP, NPN
- Display: LCD, maximum reading 1999
- Range selection: Manual
- Audible continuity signal: No
- Protection: Overload protection
- Low battery indicator: Yes
- Housing material: ABS
- Power supply: 9 V battery (6F22)
- Application: Electrical measurements
- Brand: Vorel
- Manufacturer code: 81780
Kit includes
- 1x Digital multimeter Vorel 81780
- 1x Set of test leads
1202871
Data sheet
- Upper DC voltage range
- 200mV/2V/20V/200V/500V
- Upper AC voltage range
- 200V/500V
- Upper DC current range
- 5 A
- Upper AC current range
- No
- Upper resistance range
- 200Ω/2000Ω/20kΩ/200kΩ/2MΩ
- Upper capacitance range
- No
- Frequency range
- No
- Temperature measurement
- No
- Range adjustment
- Manually
- True RMS
- No
- Hold function
- No
- Continuity tester
- No
- Diode tester
- Yes
- Transistor hFE measurement
- Yes
- Buzzer
- No
- Battery indicator
- Yes
- Automatic shut-off
- No
- Display backlight
- No
- Battery type
- 6F22
- Length
- 155 mm
- Width
- 75 mm
- Thickness
- 30 mm
- Weight
- 130 g
Manufacturer TOYA S.A. Sołtysowicka 13-15 51-168 Wrocław Poland info@yato.pl
Responsible person TOYA S.A. Sołtysowicka 13-15 51-168 Wrocław Poland info@yato.pl
