- New
zł971.80

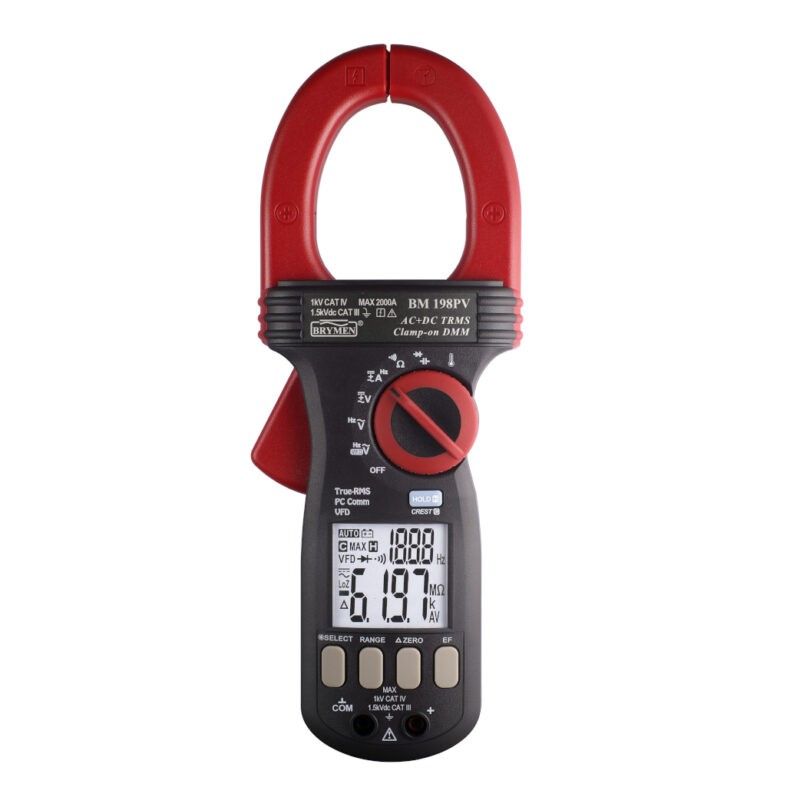

Brymen BM198PV - 2000A clamp meter
ID: 1205029
zł971.80
Tax included
zł790.08 tax excl.
A clamp meter designed for use in photovoltaic and industrial installations, as well as high-voltage networks, enabling true RMS AC/DC/AC+DC current measurement up to 2000 A. The device supports DC voltage measurement up to 1500 V, VFD functions, and simultaneous V+Hz measurement, making it an ideal tool for diagnosing systems with inverters. Large jaws with a 55 mm opening, REL, HOLD, CREST functions, and non-contact EF voltage detection enhance convenience and safety. Brymen BM198PV
Description
Brymen BM198PV is a next-generation clamp meter designed for demanding applications, including photovoltaic (PV) installations, industrial systems, and high-voltage power networks. The device enables measurement of AC, DC, and AC+DC current in True RMS mode up to 2000 A, allowing precise analysis even of very high loads. With a maximum jaw opening of 55 mm, the meter is suitable for thick conductors and busbars.
The BM198PV model stands out with its ability to measure DC voltage up to 1500 V DC, making it an ideal tool for photovoltaic systems and high-voltage power applications. The use of VFD (Variable Frequency Drive) functionality enables accurate voltage and frequency measurements in inverter-driven systems. Additionally, the device offers simultaneous V + Hz measurement, significantly improving drive system diagnostics. The meter is equipped with advanced functions such as Crest 5 ms for peak value capture, REL for differential measurements, and HOLD for freezing results on the display. The EF-Detection function enables non-contact voltage detection, increasing user safety. An additional signal filter improves measurement stability in environments with high electromagnetic interference.
The device features a dual backlit LCD display, allowing simultaneous presentation of multiple parameters. Thanks to the USB interface, communication with a computer and analysis of measurement data is possible. High safety category CAT IV 1000 V and CAT III 1500 V along with 12 kV surge protection ensure safe operation even in the most demanding conditions.
Features
- DC voltage range: up to 1500 V
- AC voltage range: up to 1000 V (VFD up to 1000 V)
- DC/AC current range: up to 2000 A
- Resistance range: up to 40 MΩ
- Capacitance range: up to 2000 µF
- Temperature range: -50 °C to 1000 °C
- Frequency measurement: 10 Hz – 50 kHz (VFD), 40 Hz – 1999 Hz (standard)
- EF detection: 50/60 Hz
- Display: 3 5/6-digit LCD + additional 3 1/2-digit Hz display
- Maximum display: 6000 / 1999 (Hz)
- Sampling rate: 5×/s
- True RMS measurement: AC, AC + DC
- Maximum conductor diameter: 55 mm
- Tests: continuity test, diode test
- Communication interface: USB
- Surge protection: 12 kV (1.2/50 µs SURGE)
- Measurement category: CAT IV 1000 V
- Power supply: 2 × AA 1.5 V batteries (LR06)
- Automatic power off
- Operating conditions: 0 °C to 40 °C, humidity up to 80%
- Dimensions: 264 × 97 × 43 mm
- Weight: 608 g
Kit contains
- Brymen BM198PV clamp meter
- Test leads
- Type K temperature probe
- Set of batteries
- User manual
1205029
Data sheet
- Upper DC voltage range
- 1500 V
- Upper AC voltage range
- 600mV/6V/60V/600V/1000V
- Upper DC current range
- 2000 A
- Upper AC current range
- 2000 A
- Upper resistance range
- 400 Ω/4 kΩ/40 kΩ/400 kΩ/4 MΩ/40 MΩ
- Upper capacitance range
- 2nF/20nF/200nF/2μF/20μF/200μF/2mF
- Frequency range
- 10 Hz - 50 kHz
- Temperature measurement
- Yes
- Range adjustment
- Automatic
- True RMS
- Yes
- Hold function
- Yes
- Continuity tester
- Yes
- Diode tester
- Yes
- Transistor hFE measurement
- No
- Buzzer
- Yes
- Battery indicator
- Yes
- Automatic shut-off
- Yes
- Display backlight
- Yes
- Battery type
- LR06/AA
- Length
- 260,0 mm
- Width
- 97 mm
- Thickness
- 45 mm
- Weight
- 600 g
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
