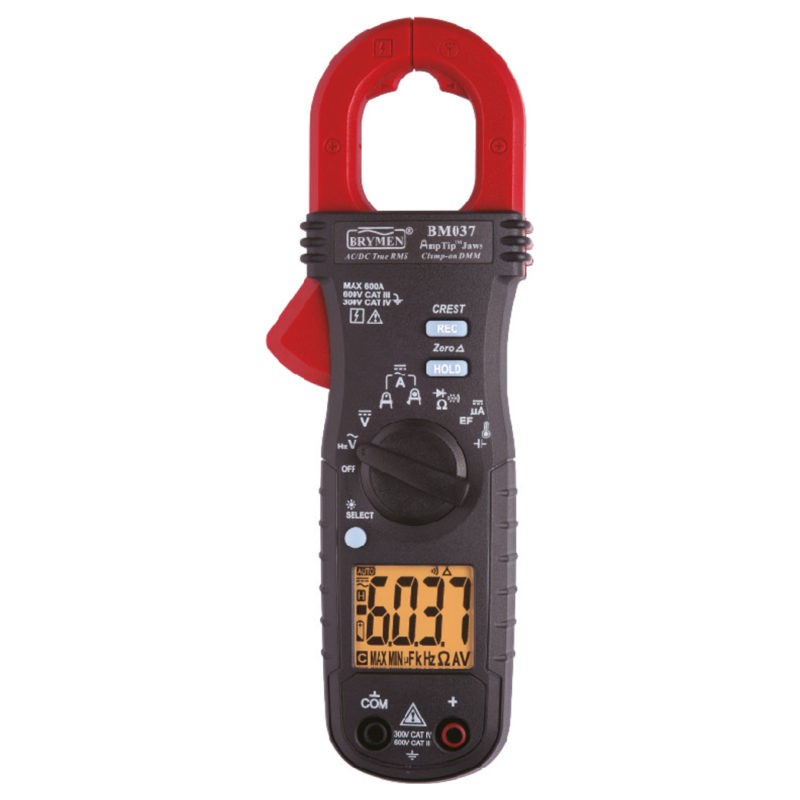

Brymen BM037 - 600A clamp meter

Description

Brymen BM037 clamp meter is an advanced yet compact measuring instrument designed for professionals involved in electrical installation diagnostics. The device enables AC/DC current measurement up to 600 A using True RMS technology, ensuring high accuracy even for distorted signals. Thanks to innovative jaws, the meter allows precise measurement of small currents, including in thin wires and hard-to-reach places. The design of the device focuses on ergonomics and ease of use, making it ideal for everyday service work. The BM037 model offers a wide range of measurement functions, such as DC and AC TRMS voltage measurement, resistance, capacitance, frequency, and temperature. Additionally, it enables accurate DCµA microcurrent measurement, which is particularly useful in HVAC systems. Built-in test functions such as continuity test and diode test allow quick diagnostics of electrical installation components. The device is also equipped with a non-contact voltage detector (EF), enhancing safety by enabling quick detection of voltage presence. A clear 6000-count LCD display ensures convenient reading of results, while fast data refresh improves work efficiency. Robust construction, high safety category CAT III 600 V / CAT IV 300 V, and 6 kV surge protection guarantee safe operation even in demanding industrial environments.

Features

• DC voltage measurement: range 600 V, resolution 100 mV, accuracy ± (1% + 5 digits)
• AC voltage measurement AC TRMS: range 600 V, resolution 100 mV, accuracy ± (1.5% + 5 digits)
• Resistance measurement:
  • 600 Ω (0.1 Ω), accuracy ± (1% + 5 digits)
  • 60 kΩ (10 Ω), accuracy ± (1% + 5 digits)
  • 600 kΩ (100 Ω), accuracy ± (1% + 5 digits)
  • 6000 kΩ (1 kΩ), accuracy ± (1% + 5 digits)
• Capacitance measurement:
• 200 µF (0.1 µF), accuracy ± (2% + 4 digits)
• 2500 µF (1 µF), accuracy ± (2% + 4 digits)
• DCµA current measurement:
  • 200 µA (0.1 µA), accuracy ± (1% + 5 digits)
  • 2000 µA (1 µA), accuracy ± (1% + 5 digits)
• Temperature measurement:
  • -40 °C – 99.9 °C (0.1 °C), accuracy ± (1% + 10 digits)
  • 100 °C – 400 °C (1 °C), accuracy ± (1% + 1 digit)
  • 400 °C – 1000 °C (1 °C), accuracy ± (3% + 5 digits)
• AC current measurement: 60 A, resolution 0.01 A, accuracy ± (1% + 5 digits)
• DC current AmpTip measurement: 60 A, resolution 0.01 A, accuracy ± (1% + 5 digits)
• AC current measurement TRMS: 600 A, resolution 0.1 A, accuracy ± (1.5% + 5 digits) for 50 Hz–100 Hz and ± (2% + 5 digits) for 100 Hz–400 Hz
• DC current measurement: 600 A, resolution 0.1 A, accuracy ± (2% + 5 digits)
• Frequency measurement: 5.00 Hz – 999.9 Hz, resolution 0.01 Hz – 0.1 Hz, accuracy ± (2% + 5 digits)
• Continuity test
• Diode test
• Maximum conductor diameter: 26 mm
• Display: 6000-count LCD, automatic polarity
• Refresh rate: 5 times/s
• Measurement type: True RMS
• Safety standards: IEC/UL/CSA/EN 61010
• Measurement category: CAT III 600 V, CAT IV 300 V
• Surge protection: 6.0 kV
• Overload protection: up to 600 A (clamp), voltage up to 660 V DC / 920 V AC
• EMC compliance: EN61326-1
• Power supply: 2 × AAA 1.5 V batteries
• Low battery indication: < 2.85 V (capacitance), < 2.5 V (others)
• Auto power off: after approx. 32 minutes
• Operating temperature range: 0 °C to 40 °C
• Operating humidity: up to 80% (up to 31 °C), decreasing to 50% at 40 °C
• Dimensions: 188 × 66 × 32 mm
• Weight: 202 g

Kit contains

• Brymen BM037 clamp meter
• Test leads set
• Type K temperature probe with banana plug
• User manual
