A portable mini soldering station with up to 200W of power, powered by USB-C PD 3.1 or a 12-28V DC source. The device heats up to 300°C in just 2-3 seconds and offers precise temperature control with real-time measurement. It's compatible with T210 and T245 soldering iron handles, and features like auto-sleep, calibration, and firmware updates enhance user convenience. Miniware TS1M

4 weeks
Awaiting delivery
Kamami is the official distributor of Miniware soldering irons, power supplies and measuring tools. All products of this brand in our offer are original and come directly from the manufacturer.

Description

Miniware TS1M is a compact and advanced mini soldering station that combines performance, portability, and modern control features. The device offers up to 200 W of power and supports the PD 3.1 protocol, allowing it to be powered from both an AC adapter and LiPo batteries. This model is fully compatible with T210 and T245 handle series, providing flexibility for different applications and soldering tip types.

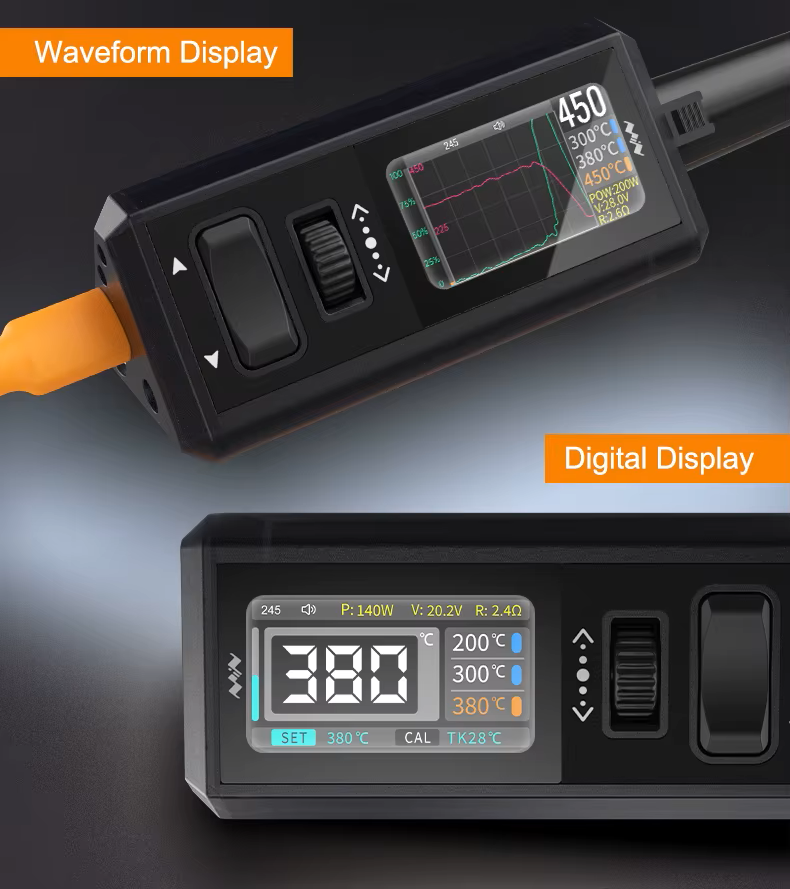

The station features real-time temperature measurement, enabling precise control over the soldering process. With its intelligent tip detection system, the device automatically prevents overheating of faulty tips. The dual display interface allows switching between waveform and classic digital modes, giving users full control over temperature and operating parameters.

The TS1M station also includes an automatic sleep function when connected to a stand (not included), extending tip lifespan and improving work safety. The device offers a multilingual interface (including Polish and English) and supports firmware updates. Thanks to its compact size and durable construction, the TS1M is ideal for service, hobby, and mobile applications. Users will appreciate its rapid heating time — only 2–3 seconds to reach 300°C — and precise performance, making it a perfect tool for both professionals and electronics enthusiasts.


Features

  • Maximum power: 100 W (T210) / 200 W (T245)
  • Power supply: USB-C PD3.1 or DC 12–28 V
  • Temperature range: 100–450°C
  • Heating time to 300°C: 2–3 seconds
  • Temperature stability: ±3%
  • Ground resistance: <2 Ω
  • Compatibility: Miniware, T210, T245 handles
  • Display: digital + waveform view
  • Functions: automatic calibration, auto sleep, temperature measurement, firmware update

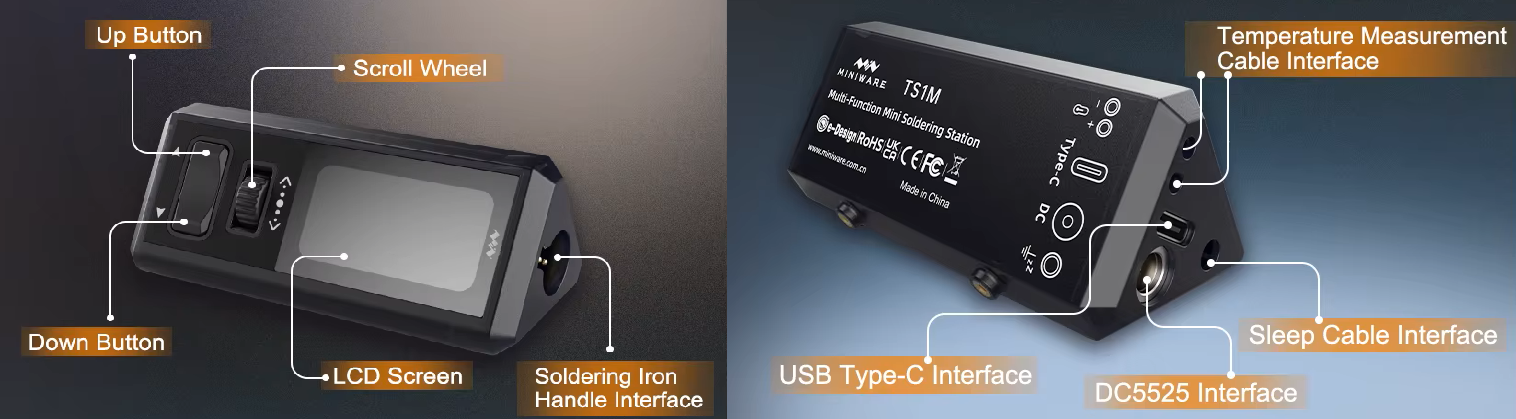

  • Power interface: USB-C / DC 5525
  • Cable length: 120 cm
  • Dimensions: 79 × 33.5 × 36 mm

Kit contains

  • TS1M Controller
  • Temperature Sensor Cable
  • 2 x Sleep Wire
  • Ground Wire
  • USB-C to C Power Cable
  • User Manual
1201170

Data sheet

Station type
Tip soldering iron
Tip soldering iron temperature
100 - 450°C
HotAir temperature
No HotAir
Power
200 W
