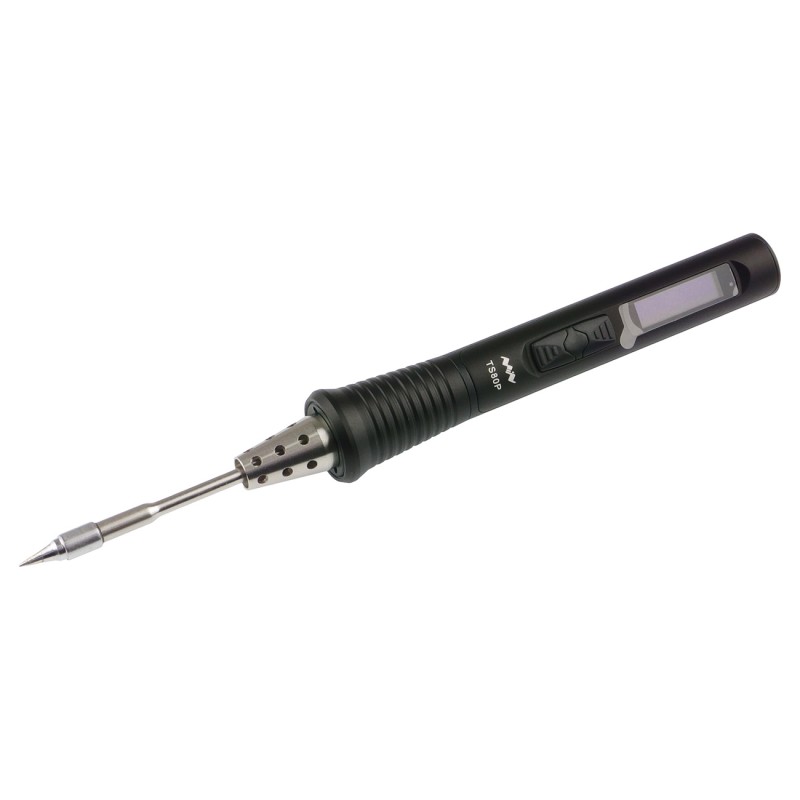

MiniWare TS80P - portable digital 30W soldering iron with display
ID: 1185458
6970634010864
zł221.98
Tax included
zł180.47 tax excl.
Portable soldering iron with a power of 30 W. It has an adjustable operating temperature in the range of 100 ° C to 400 ° C. It can be powered via the USB type C connector and supports the PD2.0 and QC3.0 protocols. MiniWare TS80P
Description
30W portable digital soldering iron with built-in OLED display. It has an adjustable operating temperature ranging from 100°C to 400°C. It has many built-in functions, such as automatic sleep, shutdown and intelligent compensation system, which ensure good temperature control and intuitive operation of the device. The dynamic circuit detection system ensures safety and protects the circuits from damage.
The TS80P model is equipped with an OLED display, which is used to present the current operating parameters. It uses a new tip mount that provides better grip and easy replacement. The device can be powered via the USB type C socket with a voltage of 9V/2A in the case of the QC3.0 protocol or 12V/3A using the Power Delivery standard. In addition, it can be powered by a LiPo battery or Power Bank, making it a portable tool for work outside the workshop. The soldering iron is easy to assemble and disassemble, and when unfolded it takes up much less space and is easier to transport. The user can connect the soldering iron to the computer and update the firmware easily using the DFU function, which gives access to the latest functionalities.
Features
- Model: TS80P
- Power: 30W
- Temperature range: 100 °C to 400 °C
- Temperature Stability: ±3%
- Input voltage: 9V/2A (QC 3.0) or 12V/3A（PD2.0）
- Power Delivery and Quick Charge support
- Heating time to 300°C: 8 sec
- Interface: USB Type-C
- Tip resistance: < 2 Ω
- Tip mounting: Audio Jack 3.5mm
- Controller dimensions: 96 x 13 mm
- Tip dimensions: 100 mm
- Weight: 38g
Kit contains
- TS80P soldering iron
- Ssoldering tip
- User manual
