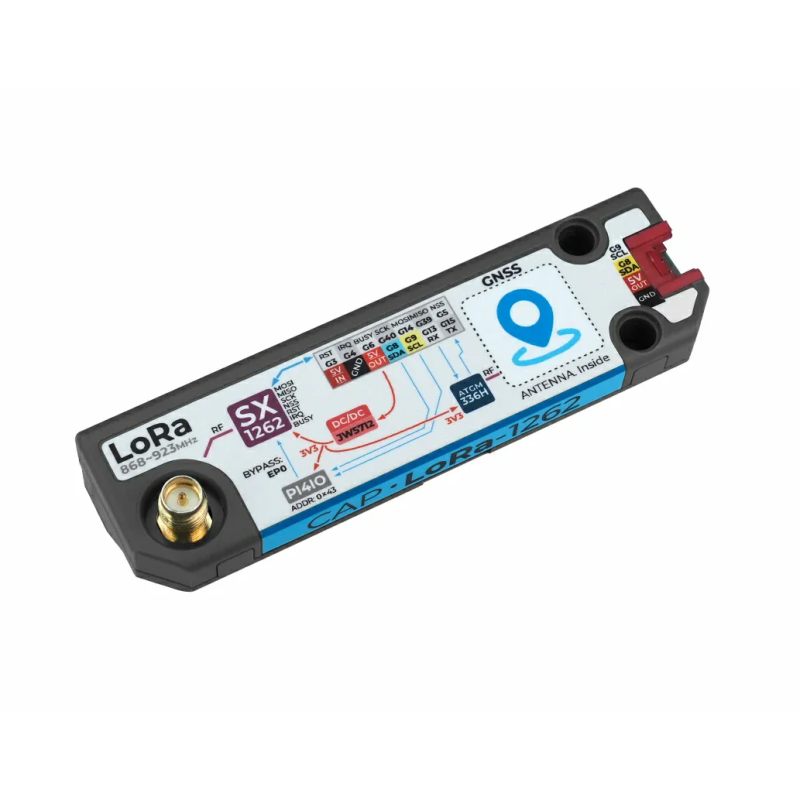

Main view
search
  • Main view
  • Top view
  • Bottom view
  • Side view
ID: 1203471
zł78.51
Tax included

zł63.83 tax excl.

An expansion module combining long-range LoRa 868–923 MHz communication with precise GNSS positioning in a single, compact device. The SX1262 offers high receive sensitivity down to -147 dBm, transmit power up to +22 dBm, and low power consumption, making it ideal for IoT and telemetry applications. The integrated ATGM336H GNSS receiver supports multiple satellite systems and provides sub-1.5 m positioning accuracy. The module is designed for use with the Cardputer-Adv. M5Stack U214

24h
Available
Available quantity: 5

Description

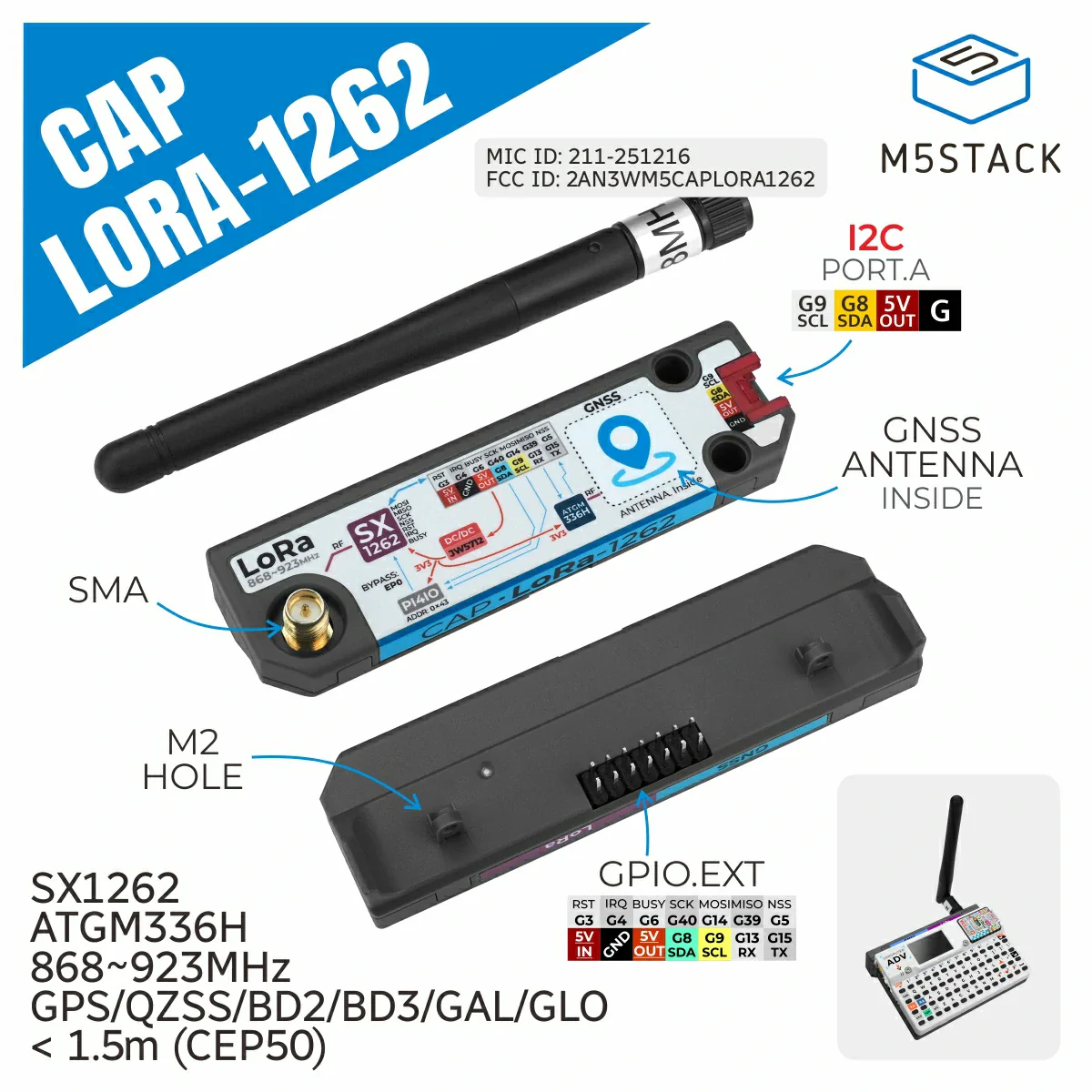

Cap LoRa 1262 for Cardputer Adv is an advanced communication expansion module that combines long-range LoRa connectivity with precise GNSS positioning. It is designed specifically for use with the Cardputer-Adv platform, ensuring easy integration via the HY2.0-4P interface. The LoRa module, based on the SX1262 chipset, enables stable wireless communication in the 868–923 MHz frequency range, offering very high receiver sensitivity and low power consumption. The use of an external SMA antenna significantly improves range and interference resistance, making the module an ideal solution for IoT applications.


The built-in GNSS receiver based on the ATGM336H (AT6668) chip provides fast and accurate positioning even in challenging signal conditions. The module supports multiple global navigation satellite systems, including GPS, BeiDou, GLONASS, Galileo, and QZSS. This allows for both multi-constellation positioning and single-system operation. High location accuracy and a short time to first fix make the module well suited for mobile projects. Cap LoRa 1262 is designed for applications requiring long range, low power consumption, and high reliability. It is an excellent choice for smart city solutions, smart homes, telemetry, and IoT device tracking. The module supports popular development environments, enabling a quick and easy start.

Features

  • LoRa module: SX1262
  • LoRa frequency range: 868–923 MHz
  • Maximum LoRa transmit power: up to +22 dBm
  • LoRa receiver sensitivity: up to −147 dBm (low data rate mode)
  • Supported modulations: FSK, GFSK, MSK, GMSK, LoRa, OOK
  • Programmable data rate: up to 300 kbps
  • LoRa communication interface: SPI
  • Antennas: external SMA antenna for LoRa, built-in ceramic GNSS antenna
  • GNSS module: ATGM336H-6N (AT6668)
  • Supported GNSS systems: GPS, QZSS, BD2, BD3, GALILEO, GLONASS
  • GNSS positioning accuracy: < 1.5 m (CEP50)
  • GNSS update rate: up to 10 Hz
  • GNSS interface: UART (default 115200 bps)
  • Supported platforms: Arduino, UiFlow2
  • Current consumption (LoRa): DC 5 V @ 163.4 mA
  • Power consumption (GNSS, active): approx. 33.1 mA
  • Dimensions: 84.0 × 24.0 × 15.2 mm
  • Weight: 34 g

Kit contains

  • Cap LoRa-1262
  • LoRa antenna (SMA)
