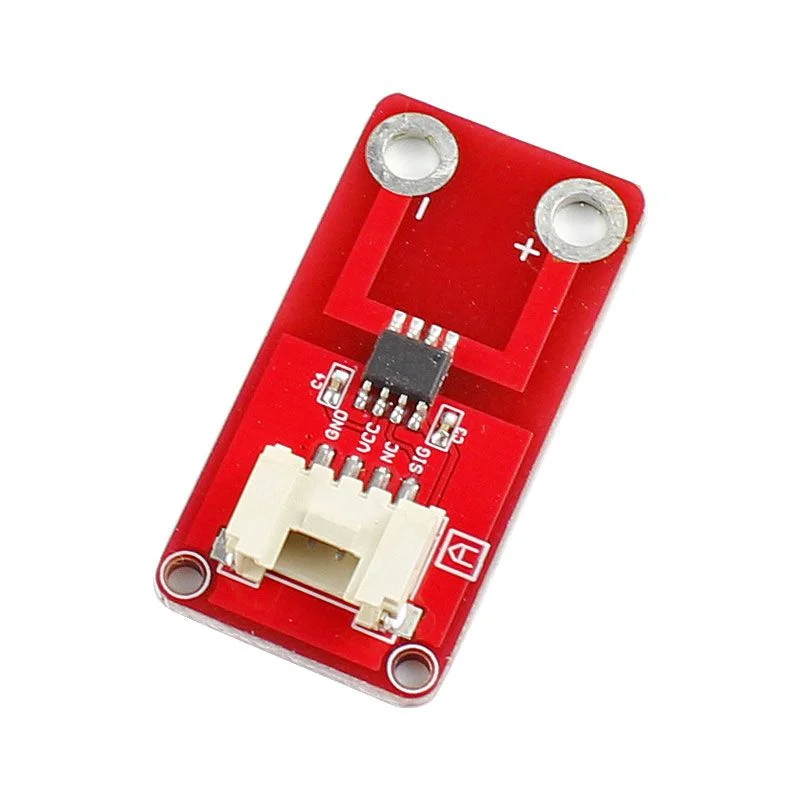

Crowtail – Current Sensor 2.0 – AC/DC current sensor up to ±20 A with ACS712 chip, analog output
ID: 1201710
5902186332164
zł37.74
Tax included
zł30.68 tax excl.
Crowtail – Current Sensor 2.0 enables AC/DC current measurement up to ±20 A using the ACS712 chip and generates an analog signal for further analysis. Used in energy-consumption monitoring systems, automation, and laboratory measurements.
Description
The Crowtail – Current Sensor 2.0 module enables precise measurement of direct and alternating current up to ±20 A using the ACS712 measurement chip. The module’s output is an analog voltage proportional to the measured current, which allows direct reading via an ADC in a microcontroller. The sensor is suitable for applications involving energy-consumption monitoring, load measurement, and measurement systems for consumer electronics and automation. Offset and sensitivity adjustment allows calibration of the system under laboratory conditions.
Properties
- Measurement range: ±20 A (AC/DC)
- Output: analog voltage proportional to current
- Support for alternating and direct current
- Measurement chip: ACS712
- Offset and sensitivity calibration capability
- Compatibility with the Crowtail system
- Dimensions: 40.0 × 20.0 × 6.8 mm
Included
- Crowtail – Current Sensor 2.0 module x1
- Crowtail 4-pin cable x1
1201710
Data sheet
- Interface
- Sygnał analogowy
- Zakres pomiarowy
- ±20 A
- Sposób podłączenia
- Nieinwazyjny
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
