ACS71240KEXBLT-010B5 Current Sensor - current sensor module -10A to 10A, 5V
ID: 1194394
5906623497270
zł21.37
Tax included
zł17.37 tax excl.
The ACS71240 current sensor module uses the Hall effect to accurately and safely measure AC and DC current, providing electrical isolation of the current path. With a wideband analog output (up to 120 kHz) and low conduction resistance (0.6 mΩ), it minimizes energy loss and offers a fast response time of less than 5 µs. Pololu 5243
Description
The ACS71240 current sensor module is a modern solution based on the Hall effect, providing electrical isolation of the current path. This allows it to be placed anywhere in an electrical circuit while ensuring safe and precise current measurement. The sensor features a noise-resistant design, eliminating the influence of uniform magnetic fields such as the Earth's field. With a low conduction path resistance (0.6 mΩ) and 2 oz copper layers, energy losses are minimized.
The sensor provides a wide-band analog output (up to 120 kHz) proportional to AC or DC current, with a response time of less than 5 µs. A unique feature of this model is its voltage output independent of supply voltage, ensuring resistance to interference. The built-in overcurrent detection function with a 1.5 µs response time allows for rapid short-circuit detection and system protection. The module operates over a wide temperature range (-40°C to 125°C), making it ideal for automotive and industrial applications.
Multiple mounting methods allow for easy circuit integration – you can solder wires directly to the holes, use solderless ring terminals, or attach screw terminals. The largest holes accommodate wires up to 8 AWG and M3.5 screws, while additional 3.5 mm and 5 mm holes support screw connectors or header pins.
The module is ideal for applications requiring precise current measurement, such as energy management systems, battery monitoring, protection circuits, and industrial electronics. Its electrical isolation allows safe current monitoring in high-voltage systems, while its low power consumption makes it suitable for mobile and battery-powered devices. With a user-friendly interface and compact design, the sensor is an excellent choice for both professionals and hobbyists. It can be used in prototyping, testing, and as a component in fully developed measurement systems. The ease of integration and broad range of applications make the ACS71240 an essential tool in modern electronics.
Features
- Sensor: Allegro ACS71240KEXBLT-010B5
- Measurement range: -10 A to 10 A
- Sensitivity: 200 mV/A
- Supply current: 12 mA
- Hall effect sensor with an isolated current path
- Operating voltage range: 4.5V to 5.5V
- Conduction resistance: 0.6 mΩ
- Bandwidth: 120 kHz
- Response time: < 5 µs
- Analog output: voltage proportional to current
- Temperature compensation: built-in digital compensation
- Overcurrent detection: FAULT output with a 1.5 µs response
- Mounting options: soldered wires, ring terminals, screw terminals
- Supported wires: 8 AWG (M3.5), 12 AWG (M2)
- Dimensions: 17.78 x 20.32 mm
- Weight: 1.1 g
1194394
Data sheet
- Interface
- Sygnał analogowy
- Zakres pomiarowy
- ±10 A
- Sposób podłączenia
- Szeregowy
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
The ACS71240 current sensor module uses the Hall effect to accurately and safely measure AC and DC current, providing electrical isolation of the current path. With a wideband analog output (up to 120 kHz) and low conduction resistance (0.6 mΩ), it minimizes energy loss and offers a fast response time of less than 5 µs. Pololu 5244
zł22.15
24h
Available quantity: 3
Available
The ACS71240 current sensor module uses the Hall effect to accurately and safely measure AC and DC current, providing electrical isolation of the current path. With a wideband analog output (up to 120 kHz) and low conduction resistance (0.6 mΩ), it minimizes energy loss and offers a fast response time of less than 5 µs. Pololu 5245
zł21.37
24h
Available quantity: 3
Available
The ACS71240 current sensor module uses the Hall effect to accurately and safely measure AC and DC current, providing electrical isolation of the current path. With a wideband analog output (up to 120 kHz) and low conduction resistance (0.6 mΩ), it minimizes energy loss and offers a fast response time of less than 5 µs. Pololu 5246
zł21.37
24h
Available quantity: 3
Available
Other products in the same category (16)
Compact current sensor based on TMR technology, enabling precise measurements up to 30 A with minimal energy losses. Thanks to a wide 1 MHz bandwidth, galvanic isolation and interference immunity, it is perfect for applications requiring fast response and high accuracy. Pololu 5305
zł50.92
24h
Available quantity: 2
Available
This board is a simple carrier of Broadcom’s bidirectional ±50A ACHS-7125 Hall effect-based linear current sensor, which offers a low-resistance (~0.7 mΩ) current path and electrical isolation up to 3 kV RMS. Pololu 4034
zł17.72
24h
Available quantity: 3
Available
A compact Hall-effect current sensor that provides accurate DC and AC current measurement within a ±10 A range with galvanic isolation. It features a high-sensitivity analog VOUT output with a 150 kHz bandwidth, enabling fast and precise readings in dynamic systems. The module operates over a wide temperature range of -40°C to 125°C, and the low current path resistance minimizes energy loss. Its small size and flexible mounting options make it ideal for prototyping, industrial systems, and space-constrained projects. Pololu 5456
zł18.86
6 weeks
No product available!
The ACS71240 current sensor module uses the Hall effect to accurately and safely measure AC and DC current, providing electrical isolation of the current path. With a wideband analog output (up to 120 kHz) and low conduction resistance (0.6 mΩ), it minimizes energy loss and offers a fast response time of less than 5 µs. Pololu 5241
zł22.16
24h
Available quantity: 3
Available
This module provides precise, galvanically isolated current measurement within a range of ±30 A and voltage up to 480 VRMS, providing RMS, instantaneous, and active, reactive, and apparent power readings. Equipped with an I²C interface, 4-pin JST SH connectors, and 2.54 mm pins, it allows for easy integration with Qwiic, STEMMA QT, and standard microcontrollers. Configuration stored in EEPROM allows for defining address and overload thresholds. The sensor offers three voltage measurement ranges (120 V - default, 240 V, 480 V RMS) and the ability to detect overvoltages. Built-in protection and low conduction resistance ensure safe and accurate measurements. The version comes with soldered screw terminals. Pololu 5411
zł172.30
4 weeks
No product available!
A compact Hall-effect current sensor that provides accurate DC and AC current measurement within a ±10 A range with galvanic isolation. It features a high-sensitivity analog VOUT output with a 150 kHz bandwidth, enabling fast and precise readings in dynamic systems. The module operates over a wide temperature range of -40°C to 125°C, and the low current path resistance minimizes energy loss. Its small size and flexible mounting options make it ideal for prototyping, industrial systems, and space-constrained projects. Pololu 5454
zł19.13
4 weeks
No product available!
The ACS72981 current sensor module uses the Hall effect to accurately and safely measure AC and DC current, providing electrical isolation of the current path. With a wideband analog output (up to 250 kHz) and low conduction resistance (0.2 mΩ), it minimizes energy loss and offers a fast response time of less than 2 µs. Pololu 5272
zł71.45
24h
Available quantity: 5
Available
Module with an analog AC current sensor in a set with a probe for non-contact measurement of alternating current with a current of up to 5A. DFRobot SEN0287
zł82.52
24h
Available quantity: 3
Available
The ACS72981 current sensor module uses the Hall effect to accurately and safely measure AC and DC current, providing electrical isolation of the current path. With a wideband analog output (up to 250 kHz) and low conduction resistance (0.2 mΩ), it minimizes energy loss and offers a fast response time of less than 2 µs. Pololu 5259
zł58.79
24h
Available quantity: 2
Available
The ACS71240 current sensor module uses the Hall effect to accurately and safely measure AC and DC current, providing electrical isolation of the current path. With a wideband analog output (up to 120 kHz) and low conduction resistance (0.6 mΩ), it minimizes energy loss and offers a fast response time of less than 5 µs. Pololu 5246
zł21.37
24h
Available quantity: 3
Available

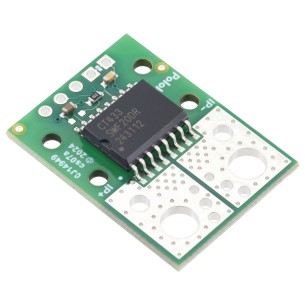

Compact current sensor based on TMR technology, enabling precise measurements up to 20 A with minimal energy losses. Thanks to a wide 1 MHz bandwidth, galvanic isolation and interference immunity, it is perfect for applications requiring fast response and high accuracy. Pololu 5316
