SCT-013-020

The ACS72981 current sensor module uses the Hall effect to accurately and safely measure AC and DC current, providing electrical isolation of the current path. With a wideband analog output (up to 250 kHz) and low conduction resistance (0.2 mΩ), it minimizes energy loss and offers a fast response time of less than 2 µs. Pololu 5261

The ACS72981 current sensor module uses the Hall effect to accurately and safely measure AC and DC current, providing electrical isolation of the current path. With a wideband analog output (up to 250 kHz) and low conduction resistance (0.2 mΩ), it minimizes energy loss and offers a fast response time of less than 2 µs. Pololu 5270

This board is a simple carrier of Broadcom’s bidirectional ±40A ACHS-7124 Hall effect-based linear current sensor, which offers a low-resistance (~0.7 mΩ) current path and electrical isolation up to 3 kV RMS. Pololu 4033

Non-invasive AC Current Sensor, 100A, YHDC, RoHS

The ACS72981 current sensor module uses the Hall effect to precisely and safely measure DC current while providing electrical isolation of the current path. With a wideband analog output (up to 250 kHz) and low conduction resistance (0.2 mΩ), it minimizes power loss and offers a fast response time of less than 2 µs. Pololu 5284

A compact Hall-effect current sensor that provides accurate DC and AC current measurement within a ±30 A range with galvanic isolation. It features a high-sensitivity analog VOUT output with a 150 kHz bandwidth, enabling fast and precise readings in dynamic systems. The module operates over a wide temperature range of -40°C to 125°C, and the low current path resistance minimizes energy loss. Its small size and flexible mounting options make it ideal for prototyping, industrial systems, and space-constrained projects. Pololu 5445

The ACS72981 current sensor module uses the Hall effect to accurately and safely measure AC and DC current, providing electrical isolation of the current path. With a wideband analog output (up to 250 kHz) and low conduction resistance (0.2 mΩ), it minimizes energy loss and offers a fast response time of less than 2 µs. Pololu 5272

A modern current sensor with a measurement range of -40 A to +40 A, combining the Hall effect with an inductor, allows for precise measurements of both DC and AC components up to 5 MHz. Its lightning-fast response time and low path resistance make it ideal for motor control systems, power converters, and protection systems. Pololu 5231

Module with ACHS-7123 current sensor with a measuring range of direct and alternating current from -30 to 30 A. It communicates via an analog interface. Pololu 4032

Module with an analog current sensor. It enables the measurement of alternating and direct currents up to 50 A. Cytron BB-ACS756

Module with ACS723 current sensor with a measuring range of AC and DC ± 5 A. It communicates via an analog interface. SparkFun SEN-13679

This module provides precise, galvanically isolated current measurement within a range of ±30 A and voltage up to 480 VRMS, providing RMS, instantaneous, and active, reactive, and apparent power readings. Equipped with an I²C interface, 4-pin JST SH connectors, and 2.54 mm pins, it allows for easy integration with Qwiic, STEMMA QT, and standard microcontrollers. Configuration stored in EEPROM allows for defining address and overload thresholds. The sensor offers three voltage measurement ranges (120 V - default, 240 V, 480 V RMS) and the ability to detect overvoltages. Built-in protection and low conduction resistance ensure safe and accurate measurements. Pololu 5410

Bidirectional current sensor module based on the ACS724 circuit. It allows you to measure current in the range -50A to + 50A. It operates with a voltage of 4.5V to 5.5V and is intended for use in 5V systems. Pololu 4049

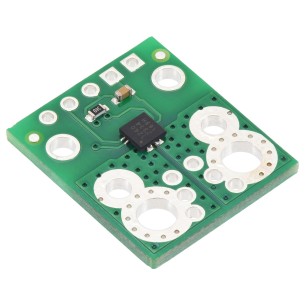

Pololu 5242 with the ACS71240KEXBLT-050B3 chip is a compact current sensor module for precision measurement applications in the ±50 A range. With galvanic isolation, fast response to current changes, and short-circuit detection capability, it is used in power systems, automotive and industrial electronics, and embedded projects. It is ideal for measuring currents in both DC and AC circuits while ensuring safety and accuracy.

The ACS72981 current sensor module uses the Hall effect to accurately and safely measure AC and DC current, providing electrical isolation of the current path. With a wideband analog output (up to 250 kHz) and low conduction resistance (0.2 mΩ), it minimizes energy loss and offers a fast response time of less than 2 µs. Pololu 5262

This module provides precise, galvanically isolated current measurement within a range of ±30 A and voltage up to 480 VRMS, providing RMS, instantaneous, and active, reactive, and apparent power readings. Equipped with an I²C interface, 4-pin JST SH connectors, and 2.54 mm pins, it allows for easy integration with Qwiic, STEMMA QT, and standard microcontrollers. Configuration stored in EEPROM allows for defining address and overload thresholds. The sensor offers three voltage measurement ranges (120 V - default, 240 V, 480 V RMS) and the ability to detect overvoltages. Built-in protection and low conduction resistance ensure safe and accurate measurements. The version comes with soldered screw terminals and a 240 Vrms jumper. Pololu 5412
