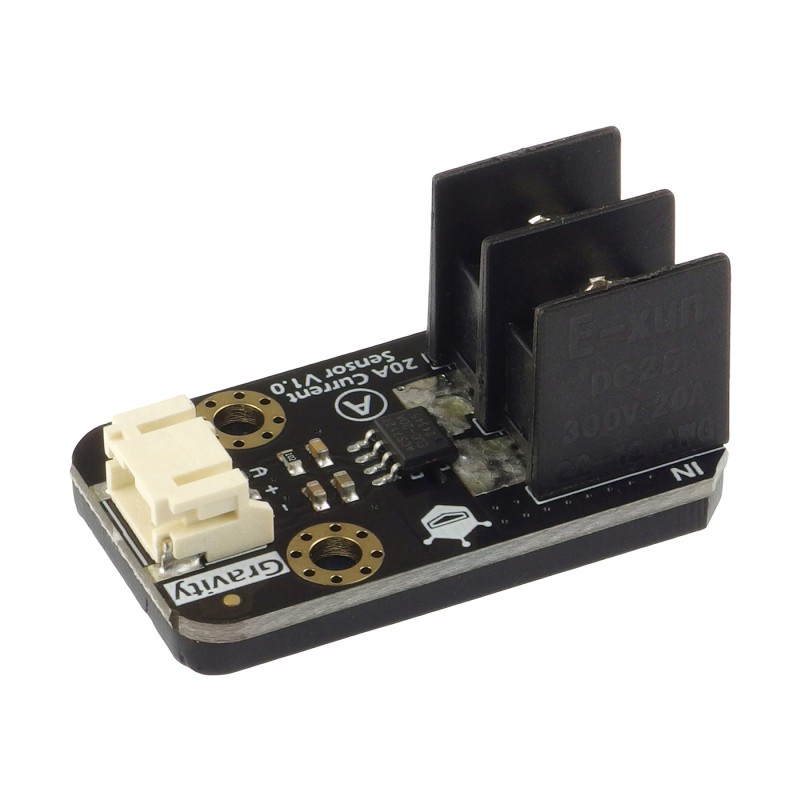

Gravity: Analog 20A Current Sensor - module with analog 20A AC/DC current sensor
ID: 564327
5902186312722
zł45.46
Tax included
zł36.96 tax excl.
Module with an analog current sensor. Enables measurement of alternating and direct current up to 20 A. DFRobot SEN0214
Description
Module with an analog current sensor. It enables the measurement of alternating and direct currents up to 20 A. The module has an analog output compatible with the Gravity standard. The measurement is based on the use of the Hall effect. At the bottom of the plate there is an acrylic insulation protecting against accidental short circuits. The module will be used in projects of controlling automation devices. On the Wiki page there is a user manual with a sample Arduino program.
Features
- Current measurement range: 0 to 20 A DC, 0 to 17 A (RMS) AC
- Maximum measurement voltage: 220 V AC, 311 V DC
- Relative error: ± 3%
- Interface: Gravity PH2.0-3P
- Power supply: 5V
- Dimensions: 39 x 22 x 17 mm
- Weight: 18g
Kit contains
- Module with AC/DC current sensor
- Gravity-3P cable
564327
Data sheet
- Interface
- Sygnał analogowy
- Zakres pomiarowy
- 0 - 20 A
- Sposób podłączenia
- Szeregowy
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
