DFRduino UNO R3
ID: 234816
5906623405732
zł87.24
Tax included
zł70.93 tax excl.
(DFR0216) DFRduino UNO R3
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
(DFR0216) DFRduino UNO R3
INTRODUCTION
DFRduino Uno V3.0 from DFRobot is a physical world computing board of small size for academics or development . It is a simple microcontroller board fully compatible with Arduino UNO R3 and Arduino IDE open-source development environment. This environment implements the Processing / Wiring language. Arduino can be used to develop stand-alone interactive objects or can be connected to software on your computer (e.g. Flash, Processing, MaxMSP). The open-source IDE can be downloaded for free (currently for Mac OS X, Windows, and Linux).
This board features the ATmega16U2 programmed as a USB-to-serial converter. An added bonus is that our DFRduino is still using the DIP package AVR Chip. You could remove it to update or reprogram the chips firmware, or even to place it on a finished, more compact project. The cool thing about our new DFRduino microcontroller is that the headers use different colors to feature I/O ports of different types:
- Red for Power Section.
- Blue for Analog I/O.
- Green for Digital I/O.
These colors match our sensor cables. This makes it really easy to figure out where to connect sensors, or to identify which side is Analog (blue) or Digital (green).
The Arduino Uno is a microcontroller board based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.
This board added SDA and SCL pins that are near to the AREF pin and two other new pins placed near to the RESET pin, the IOREF that allow the shields to adapt to the voltage provided from the board. In future, shields will be compatible both with the board that use the AVR, which operate with 5V and with the Arduino Due that operate with 3.3V. The second one is a not connected pin, that is reserved for future purposes.
SPECIFICATION
- Microcontroller: ATmega328 (DIP Package)
- Operating Voltage: 5V
- Input Voltage (recommended): 7 ~ 12V
- Input Voltage (limits): 6 ~ 20V
- Digital I/O Pins: 14 (of which 6 provide PWM output)
- Analog Input Pins: 6
- DC Current per I/O Pin: 40 mA
- DC Current for 3.3V Pin: 50 mA
- Flash Memory: 32 KB of which 2KB used by bootloader
- SRAM: 2 KB (ATmega328)
- EEPROM: 1 KB (ATmega328)
- Clock Speed: 16 MHz
- Size: 75 x54 x15 mm
- Envionment Friendly: Rohs Compliance
SHIPPING LIST
- DFRduino Uno V3.0 x1
DOCUMENTS
234816
Data sheet
- Microcontroller
- ATmega328
- Core
- AVR
- Frequency
- 16MHz
- Flash memory
- 32kB
- RAM
- 2kB
- EEPROM memory
- 1kB
- Number of digital pins
- 20
- Number of PWM channels
- 6
- Ilość wejść analogowych
- 6
- ADC
- 1x 10bit
- DAC
- none
- CAN
- none
- USB
- 1
- Ethernet
- none
- WiFi/BT module
- No
- Bluetooth module
- No
- GSM/GPRS module
- No
- Logic voltage
- 5 V
- MicroSD slot
- No
- Supply voltage min
- 7
- Supply voltages max
- 12 V
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
Tracked chassis kit for the Pololu Zumo minisumo robot. The kit does not contain motors, batteries and electronic components. Pololu 1418
zł98.39 24hAvailable quantity: 2 Available2WD miniQ robotic platform is especially designed for students and hobbyists. It\'s versatile and small, suitable for most indoors applications. It features high quality and powerful metal gear motors which make it a speedy robot. It is ideal for maze competition and educational courses, and is very easy to assemble. ROB0049
zł187.38 24hAvailable quantity: 1 Available(DRI0009) 2A Motor Shield For Arduino

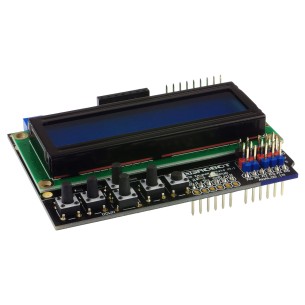

zł91.24 24hAvailable quantity: 3 Available(DFR0009) LCD Keypad Shield for Arduino
