New products
zł116.87 tax excl.
Freescale starter kit with Kinetis KL25Z family microcontroller (Cortex-M0 +), integrated with the programmer-debugger OpenSDA, capacitive switch, LED-RGB and MEMS 3D accelerometer. Arduino-compatible outputs.
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days

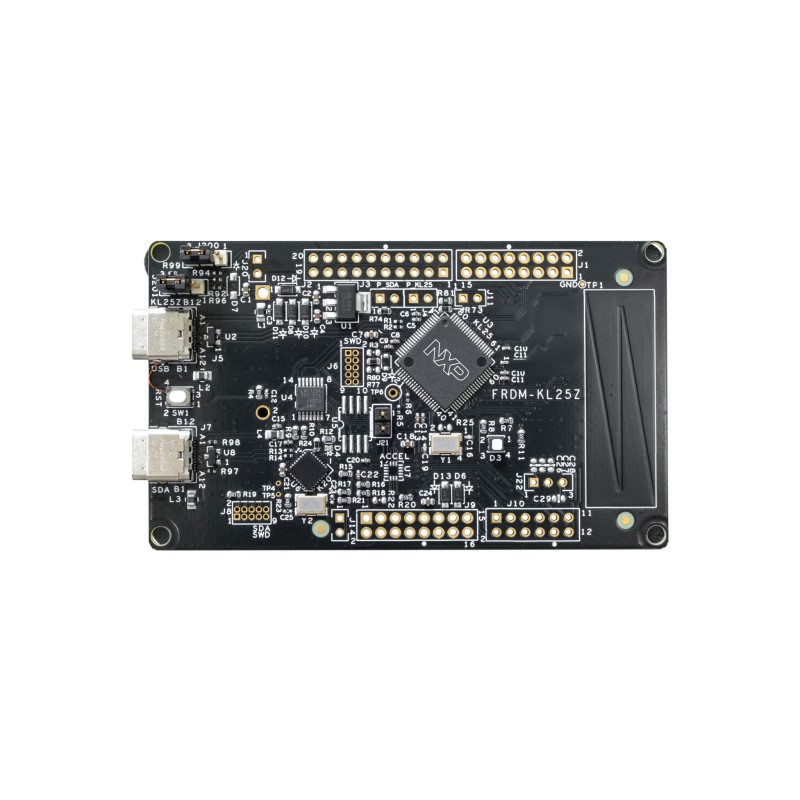

FREEDOM-KL25Z
Freedom development platform based on Kinetis KL25Z MCUs, Freescale, RoHS
The FRDM-KL25Z is an ultra-low-cost development platform enabled by Kinetis L Series KL1 and KL2 MCUs families built on ARM® Cortex ™ -M0 + processor. Features include easy access to MCU I / O, battery-ready, low-power operation, and a standard-based form factor with expansion board options and a built-in debug interface for flash programming and run-control. The FRDM-KL25Z is supported by the Freescale and third-party development software.
Features:
- KL25Z128VLK4 - Cortex-M0 + MCU with:
- 128KB flash, 16KB SRAM
- Up to 48MHz operation
- USB full-speed controller - OpenSDA - sophisticated USB debug interface
- Tri-color LED
- Capacitive touch "slider"
- Freescale MMA8451Q accelerometer
- Flexible power supply options
- Power from either on-board USB connector
- Coin cell battery holder (optional population option)
- 5V-9V Vin from optional IO header
- 5V provided to optional IO header
- 3.3V to or from optional IO header - Reset button
- Expansion IO form factor accepts peripherals designed for Arduino ™ -compatible hardware

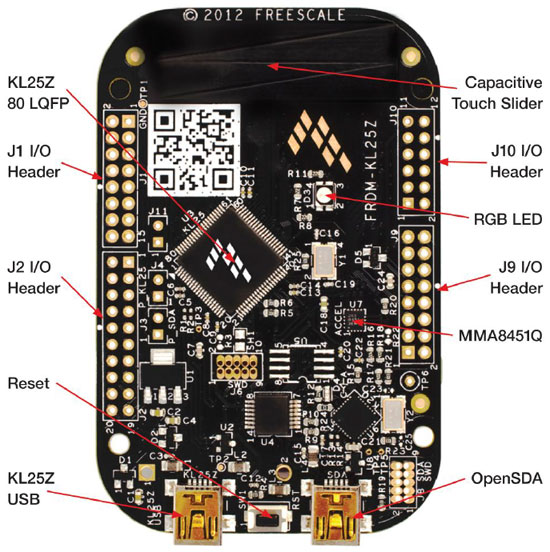

Freedom KL25
Contents:
- FREEDOM-KL25Z Board
Download:
