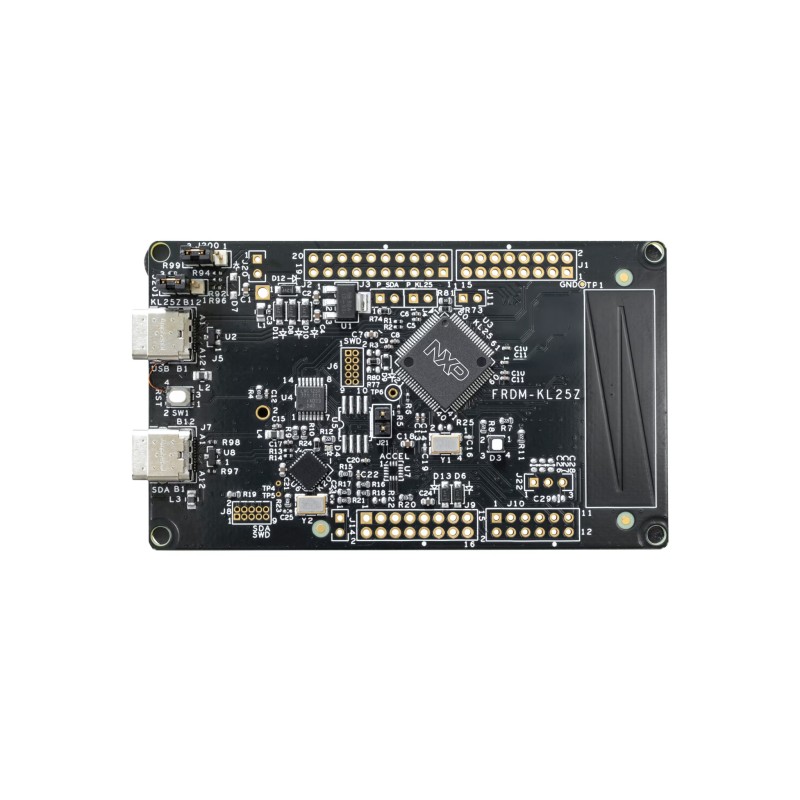

FRDM-KL25Z - zestaw startowy z mikrokontrolerem Freescale Kinetis KL25Z

FREEDOM-KL25Z
Freedom development platform based on Kinetis KL25Z MCUs, Freescale, RoHS

The FRDM-KL25Z is an ultra-low-cost development platform enabled by Kinetis L Series KL1 and KL2 MCUs families built on ARM® Cortex™-M0+ processor. Features include easy access to MCU I/O, battery-ready, low-power operation, a standard-based form factor with expansion board options and a built-in debug interface for flash programming and run-control. The FRDM-KL25Z is supported by a range of Freescale and third-party development software.

Features:

• KL25Z128VLK4--Cortex-M0+ MCU with:
  - 128KB flash, 16KB SRAM
  - Up to 48MHz operation
  - USB full-speed controller
• OpenSDA--sophisticated USB debug interface
• Tri-color LED
• Capacitive touch "slider"
• Freescale MMA8451Q accelerometer
• Flexible power supply options
  - Power from either on-board USB connector
  - Coin cell battery holder (optional population option)
  - 5V-9V Vin from optional IO header
  - 5V provided to optional IO header
  - 3.3V to or from optional IO header
• Reset button
• Expansion IO form factor accepts peripherals designed for Arduino™-compatible hardware

Freedom KL25

Contents:

• FREEDOM-KL25Z Board

Download:

• FREEDOM-KL25Z Quick Start Guide
• FREEDOM-KL25Z Quick Start Package
• Schematics
• KL24/KL25 Product Brief
• Tutorial
• Prezentacja zestawu w portalu Mikrokontroler.pl
