FRDM-KL05Z - Starter kit with Freescale Kinetis KL05Z microcontroller
ID: 199056
5906623434428
zł102.90
Tax included
zł83.66 tax excl.
Starter kit from Freescale Semiconductor based on the Kinetis KL05Z microcontroller with an Arm Cortex-M0+ core, featuring an OpenSDA debug interface, capacitive touch slider, RGB LED and a 3-axis MEMS accelerometer. FRDM-KL05Z
Description
FRDM-KL05Z is a starter kit from the Freedom Development Platform designed for the development and testing of applications based on Kinetis KL05 microcontrollers with an Arm Cortex-M0+ core. The board was developed by Freescale Semiconductor and enables quick startup without the need for an external programmer thanks to the integrated OpenSDA debug interface.

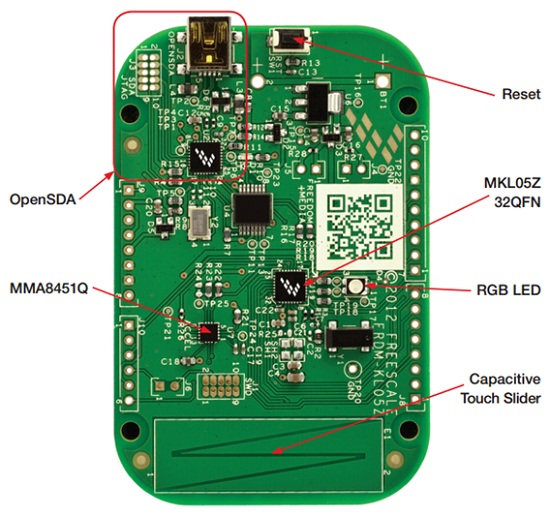

The kit provides easy access to the microcontroller I/O pins and supports low-power operating modes, including battery-powered operation. On-board user interface elements include a capacitive touch slider, a tri-color RGB LED and a 3-axis MEMS accelerometer MMA8451Q, enabling testing of applications responsive to touch, motion and orientation.
FRDM-KL05Z uses the standard mechanical form factor of the Freedom platform, allowing expansion with additional modules and expansion boards. The kit is suitable for education, embedded systems prototyping, low-power applications and research and development projects.
Features
- Microcontroller: MKL05Z32VFM4
- Core: Arm Cortex-M0+
- Clock frequency: up to 48 MHz
- Flash memory: 32 kB
- RAM memory: 4 kB
- Microcontroller package: 32QFN
- Debug interface: OpenSDA
- Flash programming via USB mass storage interface
- Support for P&E Multilink debug interface
- User interface elements: capacitive touch slider, RGB LED
- Accelerometer: MMA8451Q, 3 axes
- Battery-powered operation support
- Low-power operating modes
- Easy access to MCU I/O pins
- RoHS compliant
Kit includes
- FRDM-KL05Z development board
- Quick Reference Card
