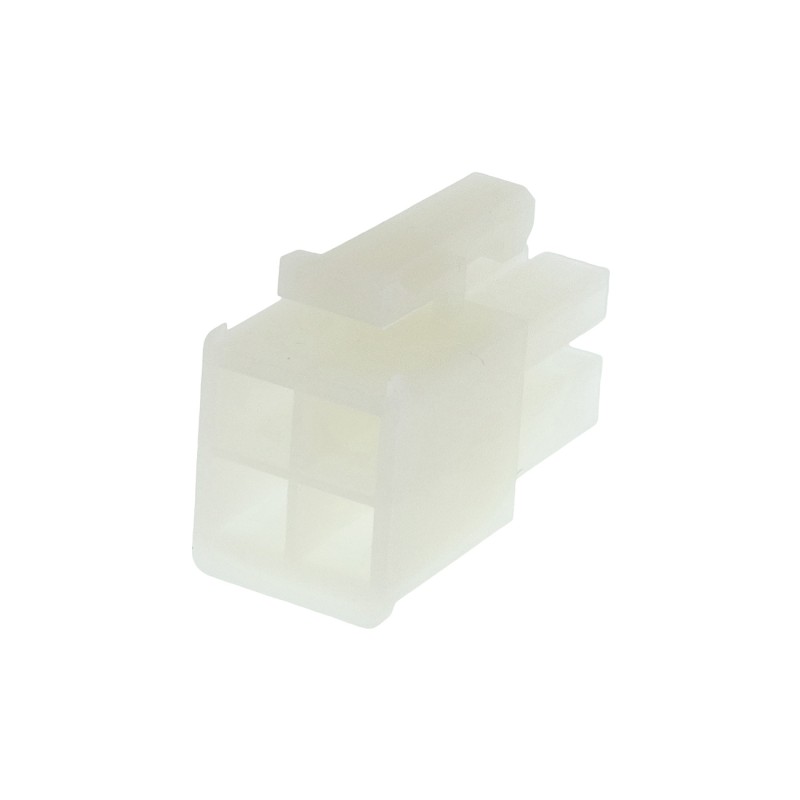

Molex 39-01-2040 – Wire-to-Wire/Board Connector, Female Plug, 4 Pin, 4.2mm, 600V
ID: 93244
€0.04
Tax included
€0.03 tax excl.
Molex 39-01-2040 Mini-Fit Jr. Series Connector designed for applications requiring compact and reliable electrical connections in low-voltage systems. Provides wire-to-wire or PCB-to-board connections in a 2x2 4.2 mm pitch configuration. Ideal for industrial, consumer electronics and automotive applications. Wire-mount female plug compatible with Molex contact system, featuring a latching mechanism to prevent accidental disconnection
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
Four-pin female Molex 39-01-2040 plug designed for wire-to-wire and wire-to-board connections in systems requiring reliability and mechanical durability. The element belongs to the Mini-Fit Jr. series, which is characterized by high packing density and compatibility with various connection configurations. Thanks to the 4.2 mm pitch and 2x2 layout, it allows convenient connection of signals and power in industrial, electronic and automotive applications. Mounting on the wire is done using separate contacts, which must be purchased separately. The connector is equipped with a latching system protecting the connection against accidental disconnection. The housing is made of material that meets the requirements of the UL94V-2 standard in terms of flammability.
Features
- Connector type: wire-to-wire/board
- Connector type: female
- Connector: plug
- Number of pins: 4
- Contact pitch: 4.2 mm
- Pin layout: 2x2
- Rated voltage: 600 V
- Mechanical mounting: on wire
- Locking system: latch
- Connector version: without contacts
- Series: Mini-Fit Jr.
- Flammability class: UL94V-2
- Operating temperature: -40...105°C
- Color: natural
- Gross weight: 1.02 g
93244
