- New
Axial fan 230V 28W Finder 7F.20.8.230.3100
ID: 1195552
8012823423821
€84.00
Tax included
€68.29 tax excl.
Finder 7F.20.8.230.3100 is an AC filter fan with a 230 V AC power supply, providing an airflow of 100 m³/h at a noise level of 42 dB(A). Designed for installation in electrical cabinets, it features dimensions of 209 x 209 x 80.2 mm and an IP54 protection rating, ensuring effective ventilation and protection against dust and water.
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
Finder 7F.20.8.230.3100 is an AC filter fan powered by 230 V AC, providing an airflow of 100 m³/h at a noise level of 42 dB(A). Designed for installation in electrical cabinets, it features compact dimensions of 209 x 209 x 80.2 mm and an IP54 protection rating, ensuring efficient ventilation and protection against dust and water. Finder 7F.20.8.230.3100 is a high-performance and durable solution for electrical enclosures, delivering effective cooling and protection against contaminants and moisture.
Specifications
- Fan type: AC
- Fan design: Axial
- Power consumption: 28 W
- Rated current: 0.12 A
- Airflow efficiency: 100 m³/h
- Noise level: 42 dBA
- Operating frequency: 50/60 Hz
- Protection rating: IP54
- Operating temperature range: -15...55°C
- Housing dimensions: 209 x 209 x 80.2 mm
- Color: Light gray
- Mounting hole dimensions: 177 x 177 mm
- Supply voltage: 230 V AC
- Gross weight: 932.8 g
1195552
Data sheet
- Voltage
- 230 V AC
- Power
- 28 W
- Length
- 209 mm
- Width
- 209 mm
- Height
- 80,2 mm
- Weight
- 0,9 kg
- Noise level
- 42 dBA
- Air flow efficiency
- 100 m³/h
- Rated current
- 130 mA
- Fan type
- Axial
Other products in the same category (16)
The AC fan with dimensions of 120x120x38mm operates on 230V, offering an air flow of 148m3/h and a rotation speed of 2750 rpm. Constructed of a thermoplastic rotor and aluminum housing, it has a noise level of 45dBA and a ball bearing. Sunon DP201A2123HBT.GN
€10.32 24hAvailable quantity: 12 AvailableThe compact SUNON axial fan offers high efficiency and low noise, ideal for space-constrained electronics and appliance applications. MF20080V2-A99-A
€9.46 24hAvailable quantity: 2 AvailableThe Sunon axial fan is a compact, quiet and efficient cooling solution, ideal for a variety of applications, ensuring the optimal operating temperature of components and long life. Sunon MF40202V2-1000U-A99
€4.80 24hAvailable quantity: 22 AvailableThe axial DC fan with dimensions of 40x40x10mm operates at a voltage of 4.5-13.8V and is characterized by a low noise level of 15.7dBA and a rotation speed of 5000 rpm. It is made of durable thermoplastic and designed to operate in the temperature range from -10°C to 70°C. Sunon HA40101V4-1000U-A99

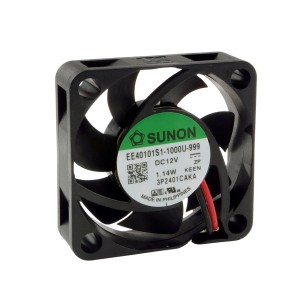

€3.78 24hAvailable quantity: 12 AvailableThe 40 × 40 × 10 mm axial fan with a nominal voltage of 12 V DC provides efficient cooling in systems with limited installation space. With a brushless motor, compact design and compliance with industrial flammability standards, it is used in power systems, automation equipment, control panels, computer equipment and automotive applications. Sunon EE40101S1-1000U-999
