DC axial fan 12V 40x40x10mm
ID: 1187228
zł16.90
Tax included
zł13.74 tax excl.
An axial DC fan with dimensions of 40x40x10mm operates in the voltage range of 4.5-13.8V with a rotational speed of 7000 rpm. The device has a low noise level of 27.3dBA and is made of thermoplastic with an operating temperature range from -10 to 70°C.
Description
The axial DC fan with dimensions of 40x40x10mm is designed to operate in the voltage range of 4.5-13.8V. It is characterized by an air flow of 13.52 m3/h and a rotation speed of 7000 rpm. Thanks to its low power consumption of 0.72W and rated current of 0.051A, it is an energy-saving device. This fan has a relatively low noise level of 27.3dBA. It uses a Vapo-type bearing and an F-type signal output. Both the rotor and the housing are made of thermoplastic. The fan meets the requirements of insulation class A, and its trouble-free operation is ensured by an operating temperature range from -10 to 70°C.
Features
- Fan type: DC
- Fan type: axial
- Operating voltage: 4.5 - 13.8V
- Fan size: 40x40x10mm
- Power consumption: 0.72W
- Rated current: 0.051A
- Fan efficiency: 13.52 m3/h
- Noise level: 27.3dBA
- Bearing type: Vapo
- Signal output: F type
- Rotational speed: 7000 rpm
- Insulation resistance min.: 10MΩ
- Rotor material: thermoplastic
- Housing material: thermoplastic
- Insulation class: A
- Operating temperature: -10 - 70°C
1187228
Data sheet
- Voltage
- 4,5 - 13,8 V
- Power
- 0,72 W
- Length
- 40mm
- Width
- 40mm
- Height
- 10
- Weight
- Other
- Noise level
- 27,3 dBA
- Air flow efficiency
- 13,52 m³/h
- Rated current
- 51 mA
- Fan type
- Axial
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Other products in the same category (16)
The SUNON 80x80x38mm AC axial fan offers quiet and efficient operation and high reliability thanks to ball bearings, making it an ideal choice for a variety of applications requiring durability and effective cooling. Sunon SF23080A2083HBL.GN
zł44.90
24h
Available quantity: 3
Available
The Sunon MF50152VX-1000U-A99 axial fan, 50 × 50 × 15 mm, powered by 24 V DC, provides efficient ventilation with low energy consumption. Designed for use in cooling systems for electronic and industrial components.
zł21.37
24h
Available quantity: 1
Available
YDM2006C05F micro fan with 5 VDC input and 20 x 20 x 6 mm dimensions, designed for efficient cooling of small electronic modules. Features low power consumption, quiet operation, and extended service life under continuous use
zł19.15
24h
Available quantity: 58
Available
The SUNON 120x120x38mm AC axial fan offers quiet and efficient operation in a compact form, meeting safety requirements for a wide range of industrial and electronic applications. Sunon DP201A2123HST.GN
zł39.98
24h
Available quantity: 3
Available
The Sunon axial fan is a compact, quiet and efficient cooling solution, ideal for a variety of applications, ensuring the optimal operating temperature of components and long life. Sunon MF40202V2-1000U-A99
zł21.89
24h
Available quantity: 58
Available
The Sunon PF38281B1-000U-S99 is a high-performance, compact 12 V DC axial fan with PWM control, speed detection, and auto-restart. Designed for demanding cooling applications in electronics and automation, it offers reliable operation and meets stringent material safety standards.
zł66.42
24h
Available quantity: 3
Available
The Sunon DP200A2123XBL.GN fan is an axial AC model with dimensions of 120x120x38 mm, powered by 230 VAC. Equipped with ball bearings, it achieves a rotational speed of 2850 RPM, generating an airflow of 165 m³/h (±10%) at a noise level of 45 dBA. Its power consumption is 22 W, and the nominal current is 140 mA. The fan features two lead wires for connection.
zł38.90
24h
Available quantity: 10
Available
The 12V axial DC fan with dimensions of 80x80x15mm offers a capacity of 62.86m3/h at a speed of 3000 rpm. Made of thermoplastic, it operates at temperatures from -10°C to 70°C and is characterized by a low noise level of 34.7dBA. Sunon EE80151S1-000U-A99
zł19.00
24h
Available quantity: 14
Available

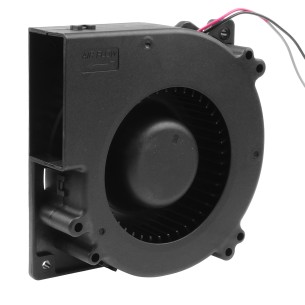

The SUNON blower fan with dimensions 120x120x32 mm and an operating voltage of 6...13.8V ensures intensive cooling and operational reliability, ideal for applications requiring high air flow, especially in difficult conditions. Sunon PMB1212PLB2A
