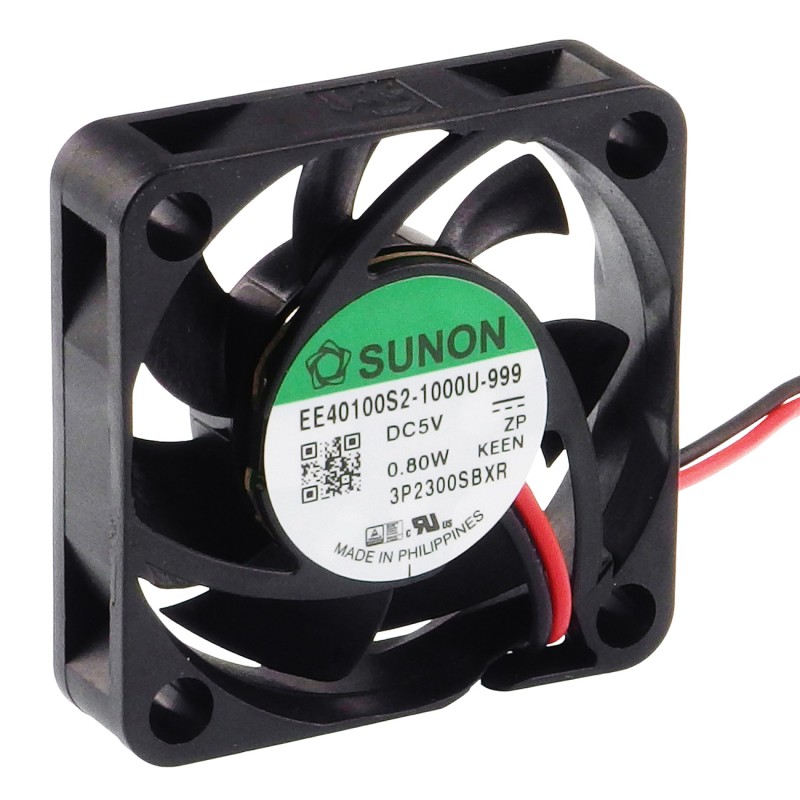

Sunon axial fan 40x40x10 mm 5V 11.99 m³/h
ID: 1197317
5902186301221
zł10.20
Tax included
zł8.29 tax excl.
Sunon axial fan EE40100S2-1000U-999 5 V DC with dimensions of 40 × 40 × 10 mm designed for electronic systems requiring effective cooling in limited space. Thanks to its high rotational speed, low noise level, and thermal resistance, it is suitable for applications such as power modules, embedded devices, IoT systems, and industrial electronic enclosures.
Description
Axial fan designed for cooling electronic components in devices with limited installation space. Powered by 5 V DC, it operates within a range of 3.5 V to 6 V. It provides an airflow of 11.99 m³/h at a static pressure of 3.05 mm H₂O and generates noise at a level of 23 dBA. The rotational speed is 6100 RPM. It is equipped with a brushless motor and a sleeve bearing. The housing and impeller are made of thermoplastic compliant with UL94V-0 flammability standard. Power supply wires with a length of 300 mm and a cross-section of 26 AWG facilitate installation in the system. The fan is intended for operation in a temperature range from -10°C to +70°C.
Specifications
- Dimensions: 40 × 40 × 10 mm
- Supply voltage: 5 V DC (operating range 3.5–6 V DC)
- Current consumption: 0.12 A
- Power: 0.8 W
- Airflow: 11.99 m³/h
- Static pressure: 3.05 mm H₂O
- Noise level: 23 dBA
- Rotational speed: 6100 RPM
- Bearing type: sleeve
- Motor: brushless DC
- Housing and impeller material: thermoplastic UL94V-0
- Insulation class: A
- Insulation resistance: ≥10 MΩ
- Wire length: 300 mm
- Wire cross-section: 26 AWG
- Operating temperature range: from -10°C to +70°C
1197317
Data sheet
- Voltage
- 5 V
- Power
- 0,8 W
- Length
- 40mm
- Width
- 40mm
- Height
- 10
- Weight
- Other
- Noise level
- 23 dBA
- Air flow efficiency
- 11,99 m³/h
- Rated current
- 120 mA
- Fan type
- Axial
