DC axial fan 1,92W 60x60x25 mm
search
  • DC axial fan 1,92W 60x60x25 mm
  • DC axial fan 1,92W 60x60x25 mm
  • DC axial fan 1,92W 60x60x25 mm
ID: 1193657
5902186306592
zł19.90
Tax included

zł16.18 tax excl.

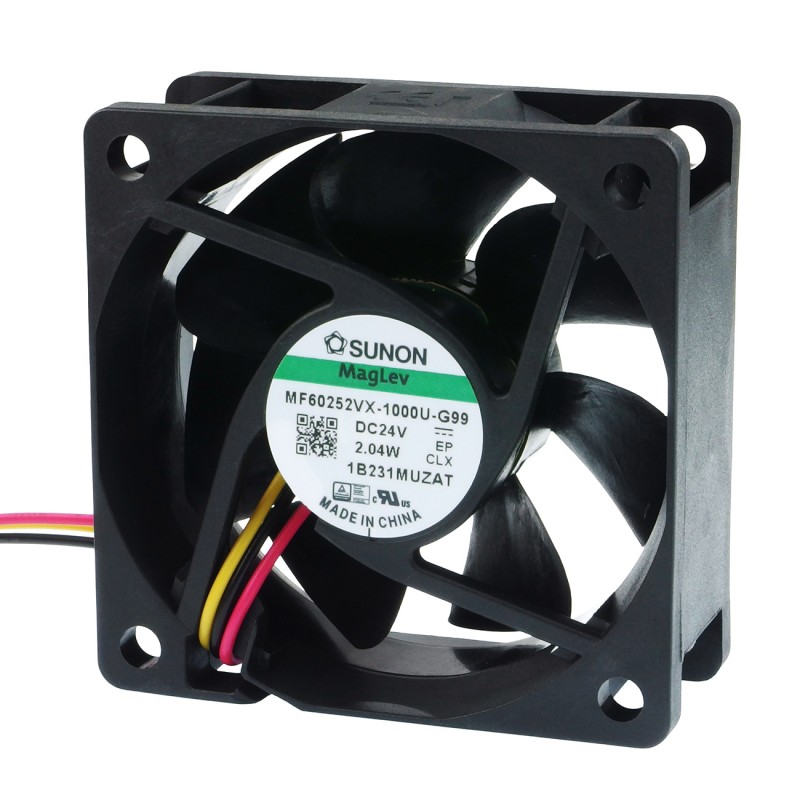

The SUNON fan with dimensions of 60x60x25 mm and an operating voltage of 8...27.6V offers high cooling efficiency and the ability to monitor the rotational speed thanks to the F-type signal output, which makes it an excellent choice for applications in demanding electronic systems. Sunon MF60252VX-1000U-G99

24h
Available
Available quantity: 8

Description

SUNON's 60x60x25mm axial DC fan, designed for efficient cooling in a wide range of electronic applications. The fan operates at a voltage of 8...27.6V, providing an efficiency of 45.63 m³/h with a low noise level of 27 dBA. Thanks to the rotation speed of 5200 rpm and the use of a Vapo bearing, the device guarantees stable and quiet operation. The housing and impeller made of thermoplastic meet UL94V-0 and ECE R-118 flammability standards, which ensures safe use. Additionally, the fan is equipped with an F-type signal output (Frequency Generator), which allows monitoring the rotational speed. The restart function increases operational reliability by protecting the device from damage in the event of power outages.

Properties

  • Operating voltage: 8...27.6V
  • Power consumption: 1.92W
  • Rated current: 80mA
  • Productivity: 45.63 m³/h
  • Noise level: 27 dBA
  • Rotational speed: 5200 rpm
  • Bearing type: Vapo
  • Static pressure: 7.87 mm H2O
  • Current and power consumption tolerance: ±15%
  • Insulation resistance: min. 10MΩ
  • Signal output: F type (Frequency Generator)
  • Housing and impeller material: thermoplastic
  • Insulation class: A
  • Flammability class: UL94V-0, ECE R-118
  • Pinouts: cable x3
  • Wire size: 26 AWG
  • Cable length: 0.29 m
  • Operating temperature: -10...70°C
  • Additional functions: autorestart
  • Motor: Brushless DC

1193657

Data sheet

Voltage
8 - 27,6 V
Power
1,92 W
Length
60 mm
Width
60 mm
Height
25 mm
Weight
Other
Noise level
27 dBA
Air flow efficiency
45,63 m³/h
Rated current
80 mA
Fan type
Axial
