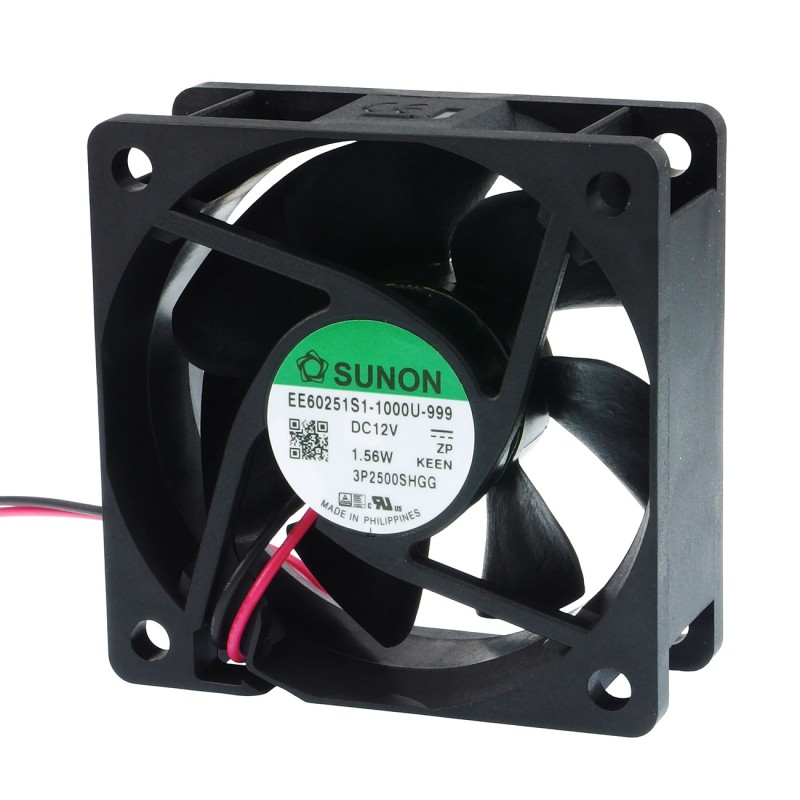

Sunon EE60251S1-1000U-999 – Axial DC Fan, 12VDC, 60×60×25 mm
ID: 1198647
5902186306905
zł13.06
Tax included
zł10.62 tax excl.
The Sunon EE60251S1-1000U-999 12 V DC fan provides quiet and efficient cooling in a compact 60 mm format. With sleeve bearings, a brushless motor, and compliance with fire safety standards, it is ideal for consumer electronics and environments requiring enhanced fire resistance.
Description
The Sunon EE60251S1-1000U-999 axial DC fan, measuring 60 × 60 × 25 mm, is designed for electronic and industrial applications requiring compact and quiet cooling. Operating within a voltage range of 4.5–13.8 V DC, it reaches a speed of 4500 RPM and delivers airflow of 39.72 m³/h with a low noise level of 27 dBA. The brushless motor and sleeve bearings ensure reliable operation with low power consumption. The fan’s housing and impeller are made from durable thermoplastic. It meets flammability standards UL94V-0 and ECE R-118.
Features
- fan type: DC
- design: axial
- operating voltage: 4.5–13.8 V DC
- rated voltage: 12 V DC
- dimensions: 60 × 60 × 25 mm
- power consumption: 1.56 W
- rated current: 0.122 A ±15%
- rotational speed: 4500 RPM
- airflow: 39.72 m³/h
- noise level: 27 dBA
- static pressure: 5.33 mm H₂O
- bearing type: sleeve
- housing and impeller material: thermoplastic
- insulation resistance: ≥10 MΩ
- insulation class: A
- motor type: brushless DC
- leads: 2 × 26 AWG wires, 0.29 m length
- operating temperature: -10°C to +70°C
- flammability rating: UL94V-0, ECE R-118
- gross weight: 45.38 g
1198647
Data sheet
- Voltage
- 4,5 - 13,8 V
- Power
- 1,56 W
- Length
- 60 mm
- Width
- 60 mm
- Height
- 25 mm
- Weight
- 45 g
- Noise level
- 27 dBA
- Air flow efficiency
- 39,72 m³/h
- Rated current
- 122 mA
- Fan type
- Axial
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
