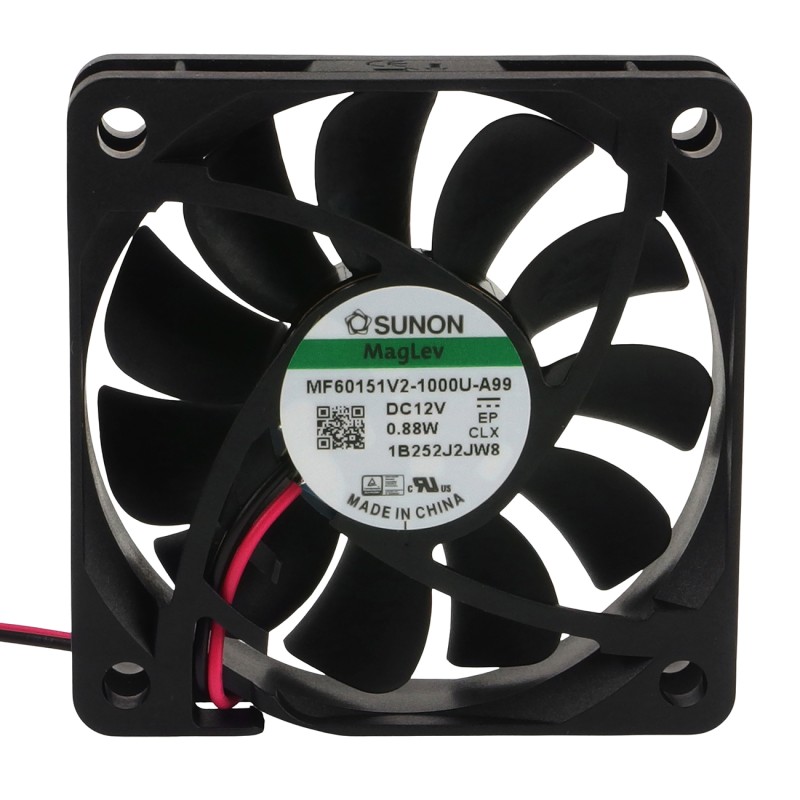

Sunon MF60151V2-1000U-A99 – Axial fan 60×60×15 mm 12 V DC
search
  • Sunon MF60151V2-1000U-A99 – Axial fan 60×60×15 mm 12 V DC
  • Sunon MF60151V2-1000U-A99 – Axial fan 60×60×15 mm 12 V DC
  • Sunon MF60151V2-1000U-A99 – Axial fan 60×60×15 mm 12 V DC
  • Sunon MF60151V2-1000U-A99 – Axial fan 60×60×15 mm 12 V DC
ID: 1199352
5902186329720
zł17.81
Tax included

zł14.48 tax excl.

Sunon MF60151V2-1000U-A99 is a quiet and energy-efficient 12 V DC axial fan with dimensions of 60×60×15 mm, equipped with a Vapo bearing and a brushless motor. It provides an airflow of 38.53 m³/h at a noise level of 29.2 dBA, making it a reliable solution for cooling compact electronic devices and industrial modules.

24h
Available
Available quantity: 8

Description

Sunon MF60151V2-1000U-A99 axial fan designed for cooling electronic, industrial, and automation systems. Powered by 12 V DC and operating within a range of 4.5…13.8 V DC, it ensures stable and quiet performance. The brushless motor with an auto-restart function guarantees reliable operation, while the Vapo bearing combines the advantages of sleeve and ball bearings, offering long service life and low vibration. The housing and impeller made of thermoplastic material with a UL94V-0 flammability rating ensure safe operation and resistance to elevated temperatures.

Features

  • Type: DC axial fan
  • Supply voltage: 12 V DC
  • Operating voltage range: 4.5…13.8 V DC
  • Current consumption: 68 mA (±15%)
  • Power consumption: 0.82 W (±15%)
  • Rotational speed: 3900 rpm
  • Airflow capacity: 38.53 m³/h
  • Static pressure: 3.56 mm H₂O
  • Noise level: 29.2 dBA
  • Bearing type: Vapo
  • Motor: brushless DC with auto-restart function
  • Insulation resistance: ≥10 MΩ
  • Insulation class: A
  • Impeller material: thermoplastic
  • Frame material: thermoplastic
  • Flammability rating: UL94V-0
  • Operating temperature: –10…70 °C
  • Leads: 2 wires, 26 AWG
  • Lead length: 0.29 m
  • Weight: 35.5 g
1199352

Data sheet

Voltage
4,5 - 13,8 V
Power
0,82 W
Length
60 mm
Width
60 mm
Height
15 mm
Weight
35,5 g
Noise level
29,2 dBA
Air flow efficiency
38,53 m³/h
Rated current
68 mA
Fan type
Axial
