Axial Fan Sunon 230VAC 120x120x38mm 165m3/h 45dBA
ID: 1195488
5906623495979
zł38.90
Tax included
zł31.63 tax excl.

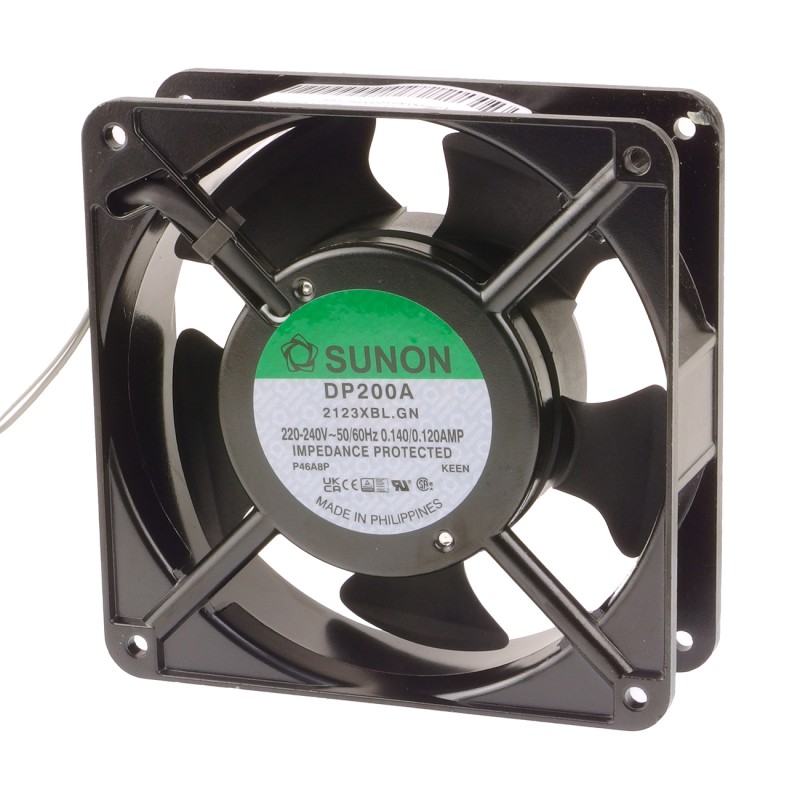

The Sunon DP200A2123XBL.GN fan is an axial AC model with dimensions of 120x120x38 mm, powered by 230 VAC. Equipped with ball bearings, it achieves a rotational speed of 2850 RPM, generating an airflow of 165 m³/h (±10%) at a noise level of 45 dBA. Its power consumption is 22 W, and the nominal current is 140 mA. The fan features two lead wires for connection.
Description
The Sunon DP200A2123XBL.GN fan is an axial AC model with dimensions of 120x120x38 mm, designed for efficient cooling. Powered by 230 VAC, it operates at a speed of 2850 RPM, generating an airflow of 165 m³/h (±10%) with a moderate noise level of 45 dBA. Featuring durable ball bearings, it consumes 22 W of power and a current of 0.14 A with a ±15% tolerance. With a minimum insulation resistance of 500 MΩ and an operating frequency of 50 Hz, the fan ensures reliable performance in demanding applications.
Features
- Fan Type: AC
- Fan Design: Axial
- Fan Dimensions: 120x120x38 mm
- Power Consumption: 22 W
- Nominal Current: 0.14 A
- Airflow: 165 m³/h (±10%)
- Noise Level: 45 dBA
- Rotational Speed: 2850 RPM
- Frequency: 50 Hz
- Insulation Resistance: Min. 500 MΩ
- Input Voltage: 230 V AC
1195488
Data sheet
- Voltage
- 230 V AC
- Power
- 22 W
- Length
- 120 mm
- Width
- 120 mm
- Height
- 38 mm
- Weight
- Other
- Noise level
- 45 dBA
- Air flow efficiency
- 165 m³/h
- Rated current
- 140 mA
- Fan type
- Axial
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
