DC axial fan 2,04W 60x60x15 mm
ID: 1193649
5902186302204
zł23.03
Tax included
zł18.72 tax excl.

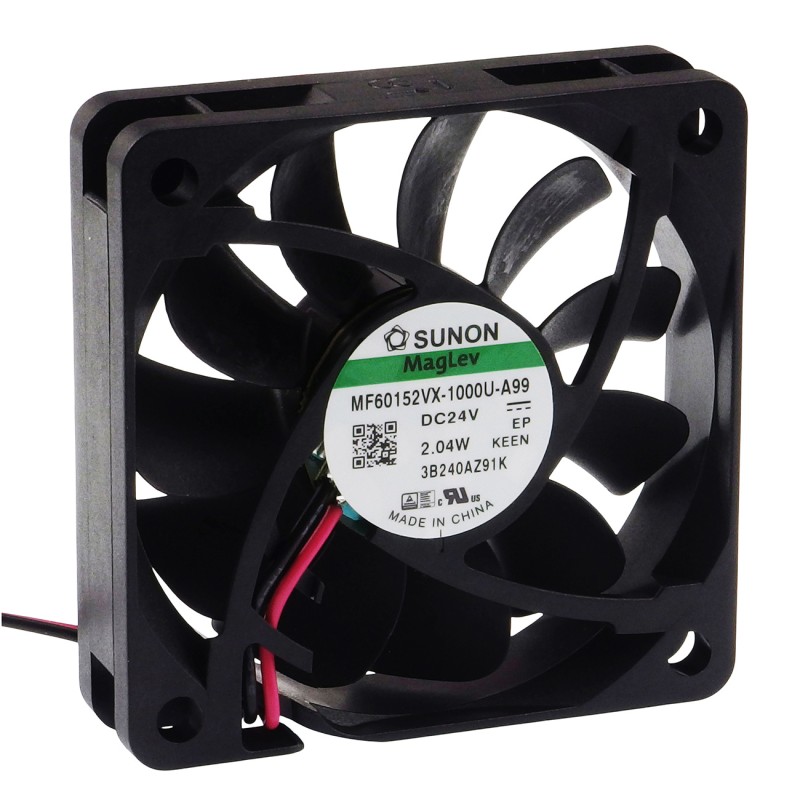

The SUNON fan with dimensions of 60x60x15 mm ensures high cooling efficiency and reliability thanks to its solid construction and auto-restart function, ideal for demanding electronic applications. Sunon MF60152VX-1000U-A99
Description
SUNON's 60x60x15mm axial DC fan, ideal for efficient cooling in a wide range of electronics applications. The fan operates at a voltage of 8 to 27.6V, offering high efficiency of 51.38 m³/h with a power consumption of 2.04W. With a rotation speed of 5400 rpm and a noise level of 36.2 dBA, the fan provides powerful cooling while maintaining a moderate noise level. Equipped with a Vapo bearing and a brushless DC motor, it guarantees long life and reliability. The housing and impeller made of thermoplastic meet UL94V-0 and ECE R-118 flammability standards, which increases safety of use in difficult conditions. An additional advantage is the autorestart function, which protects the device in the event of temporary power outages.
Properties
- Operating voltage: 8...27.6V
- Power consumption: 2.04W
- Rated current: 85mA
- Productivity: 51.38 m³/h
- Noise level: 36.2 dBA
- Rotational speed: 5400 rpm
- Bearing type: Vapo
- Static pressure: 5.59 mm H2O
- Insulation resistance: min. 10MΩ
- Housing and impeller material: thermoplastic
- Flammability class: UL94V-0, ECE R-118
- Pinouts: cable x2
- Wire size: 26 AWG
- Cable length: 0.29 m
- Operating temperature: -10...70°C
- Additional functions: autorestart
- Motor: Brushless DC
1193649
Data sheet
- Voltage
- 8 - 27,6 V
- Power
- 2,04 W
- Length
- 60 mm
- Width
- 60 mm
- Height
- 15 mm
- Weight
- Other
- Noise level
- 36,2 dBA
- Air flow efficiency
- 51,38 m³/h
- Rated current
- 85 mA
- Fan type
- Axial
