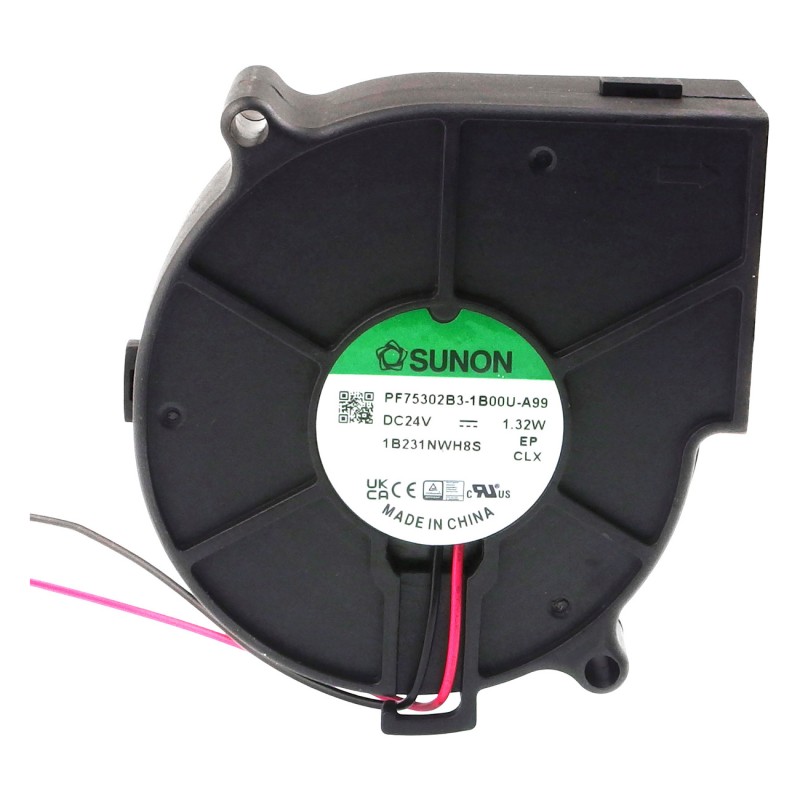

DC blower fan 1,13W 75x75x30 mm
ID: 1193662
5902186308077
zł36.90
Tax included
zł30.00 tax excl.
The SUNON blower fan with dimensions of 75x75x30 mm, with an operating voltage of 10...27.6V, offers efficiency, reliability and low noise level, ideal for precision cooling applications in various electronic devices. Sunon PF75302B3-A99-B
Description
SUNON blower fan with dimensions of 75x75x30 mm, designed for effective cooling in applications requiring precise air flow. The fan operates in the voltage range from 10 to 27.6V, offering an efficiency of 18.35 m³/h with a power consumption of 1.13W. With a rotation speed of 2400 rpm and a noise level of 32.9 dBA, the fan provides adequate cooling while maintaining a low noise level. Thanks to the use of a ball bearing and a brushless DC motor, the device is characterized by long service life and reliable operation. The housing and impeller made of thermoplastic meet the UL94V-0 and ECE R-118 flammability standards, which guarantees safe use. Additionally, the autorestart function ensures continuous operation of the fan in the event of temporary power outages.
Properties
- Operating voltage: 10...27.6V
- Power consumption: 1.13W
- Rated current: 47mA
- Productivity: 18.35 m³/h
- Noise level: 32.9 dBA
- Rotational speed: 2400 rpm
- Bearing type: ball
- Current and power consumption tolerance: ±15%
- Insulation resistance: min. 10MΩ
- Housing and impeller material: thermoplastic
- Insulation class: A
- Flammability class: UL94V-0, ECE R-118
- Pinouts: cable x2
- Cable length: 0.295 m
- Operating temperature: -10...70°C
- Additional functions: autorestart
- Motor: Brushless DC
1193662
Data sheet
- Voltage
- 10 - 27,6 V
- Power
- 1,13 W
- Length
- 75 mm
- Width
- 75 mm
- Height
- 30 mm
- Weight
- Other
- Noise level
- 32,9 dBA
- Air flow efficiency
- 18,35 m³/h
- Rated current
- 47 mA
- Fan type
- Blower
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
