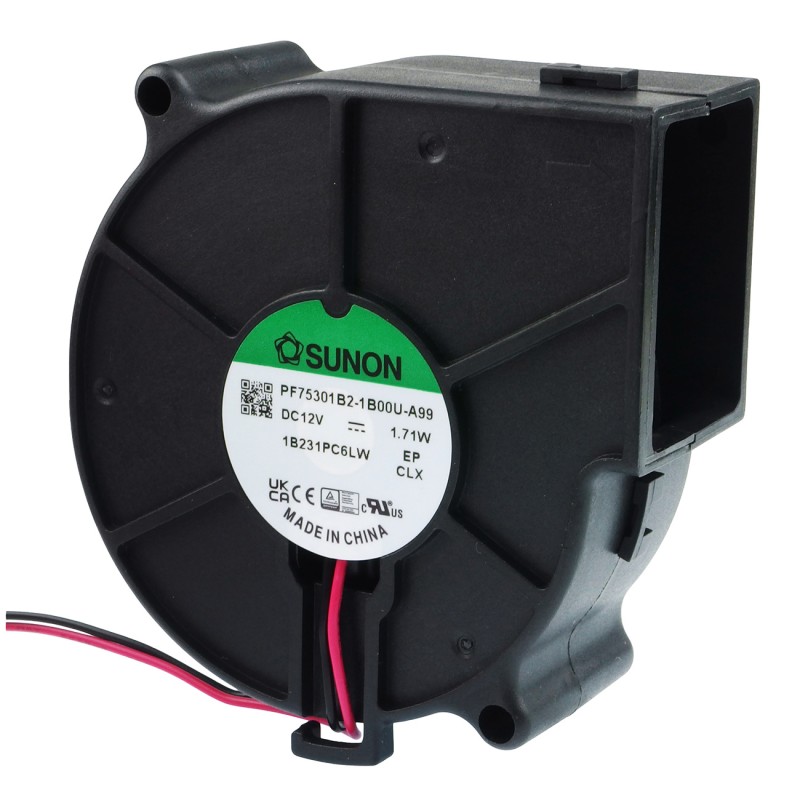

DC blower fan 1,71W 75x75x30 mm
ID: 1193665
5902186306608
zł59.04
Tax included
zł48.00 tax excl.
The SUNON blower fan with dimensions of 75x75x30 mm, with an operating voltage of 6...13.8V, offers efficiency and reliability in cooling electronic devices, ensuring concentrated air flow and safety of use thanks to meeting flammability standards. Sunon PF75301B2-A99-B
Description
SUNON blower fan with dimensions of 75x75x30 mm, designed for effective cooling in electronic devices that require concentrated air flow. The fan operates in the voltage range from 6 to 13.8V, offering an efficiency of 23.44 m³/h with a power consumption of 1.71W. With a rotation speed of 3000 rpm and a noise level of 38.6 dBA, the fan provides adequate cooling with a moderate noise level. Equipped with a ball bearing and a brushless DC motor, the device guarantees long service life and reliable operation. Both the impeller and housing are made of durable thermoplastic that meets UL94V-0 and ECE R-118 flammability standards. Additionally, the fan has an auto-restart function, which increases its reliability in the event of power outages.
Properties
- Operating voltage: 6...13.8V
- Power consumption: 1.71W
- Rated current: 0.142A
- Productivity: 23.44 m³/h
- Noise level: 38.6 dBA
- Rotational speed: 3000 rpm
- Bearing type: ball
- Current and power consumption tolerance: ±15%
- Insulation resistance: min. 10MΩ
- Housing and impeller material: thermoplastic
- Insulation class: A
- Flammability class: UL94V-0, ECE R-118
- Pinouts: cable x2
- Cable length: 0.295 m
- Operating temperature: -10...70°C
- Additional functions: autorestart
- Motor: Brushless DC
1193665
Data sheet
- Voltage
- 6 - 13,8 V
- Power
- 1,71 W
- Length
- 75 mm
- Width
- 75 mm
- Height
- 30 mm
- Weight
- Other
- Noise level
- 38,6 dBA
- Air flow efficiency
- 23,44 m³/h
- Rated current
- 142 mA
- Fan type
- Blower
