DC axial fan 1,92W 92x92x25 mm
ID: 1193596
5902186306561
zł18.91
Tax included
zł15.37 tax excl.

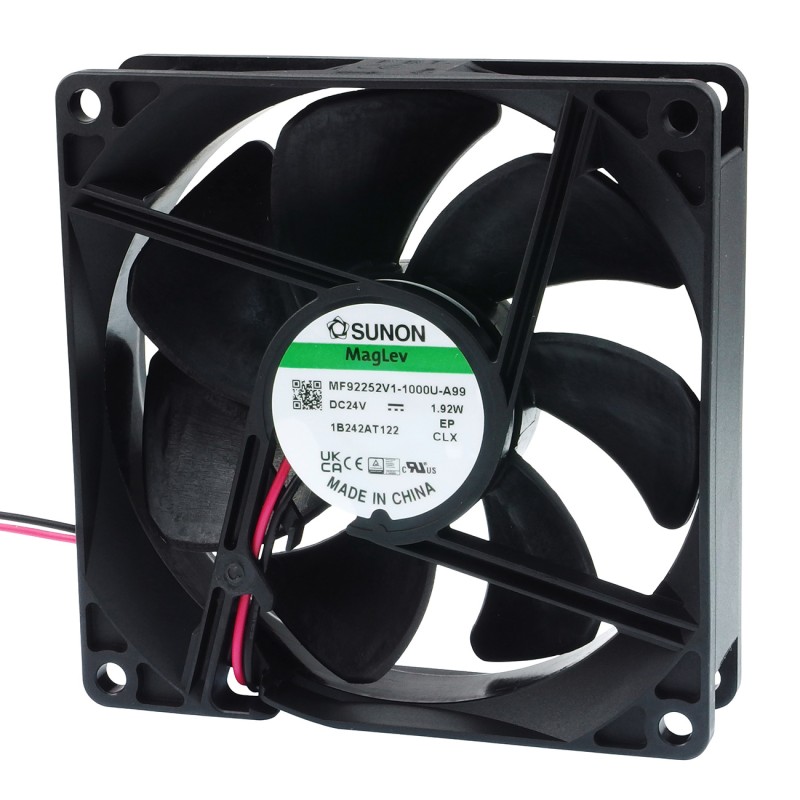

The SUNON 92x92x25mm DC axial fan provides effective cooling, low noise and reliability thanks to Vapo bearings and an autorestart function, making it an excellent choice for applications requiring durability and performance. Sunon MF92252V1-1000U-A99
Description
The SUNON axial fan with dimensions of 92x92x25 mm is a versatile cooling solution that is perfect for a variety of electronic and industrial applications. Designed to be powered by direct current (DC) in the voltage range from 8 to 27.6 V, the fan offers a capacity of 87.04 m³/h at a rotational speed of 3000 rpm, ensuring effective heat dissipation. It generates a low noise level of 34 dBA, making it suitable for quiet working environments. The fan is equipped with Vapo bearings, which ensure high reliability and long service life. The housing and impeller made of durable thermoplastic guarantee resistance to difficult operating conditions. An additional autorestart function and a brushless DC motor increase its reliability and durability. The fan meets the ECE R-118 and UL94V-0 flammability standards, which ensures its safe use.
Properties
- Fan type: DC axial
- Operating voltage: 8...27.6 V
- Size: 92x92x25 mm
- Power consumption: 1.92 W
- Rated current: 75 mA
- Efficiency: 87.04 m³/h
- Noise level: 34 dBA
- Rotational speed: 3000 rpm
- Bearing type: Vapo
- Insulation resistance: min. 10 MΩ
- Rotor material: Thermoplastic
- Housing material: Thermoplastic
- Pinouts: Cable x2 (length 0.31 m, size 24 AWG)
- Operating temperature: -10...70°C
- Static pressure: 3.81 mm H2O
- Flammability class: ECE R-118, UL94V-0
- Additional functions: Autorestart
- Fan motor: Brushless DC
1193596
Data sheet
- Voltage
- 8 - 27,6 V
- Power
- 1,92 W
- Length
- 92 mm
- Width
- 92 mm
- Height
- 25 mm
- Weight
- Other
- Noise level
- 34 dBA
- Air flow efficiency
- 87,04 m³/h
- Rated current
- 75 mA
- Fan type
- Axial
