DC blower fan 9,8W 120x120x32 mm
ID: 1193663
5902186304642
zł73.80
Tax included
zł60.00 tax excl.

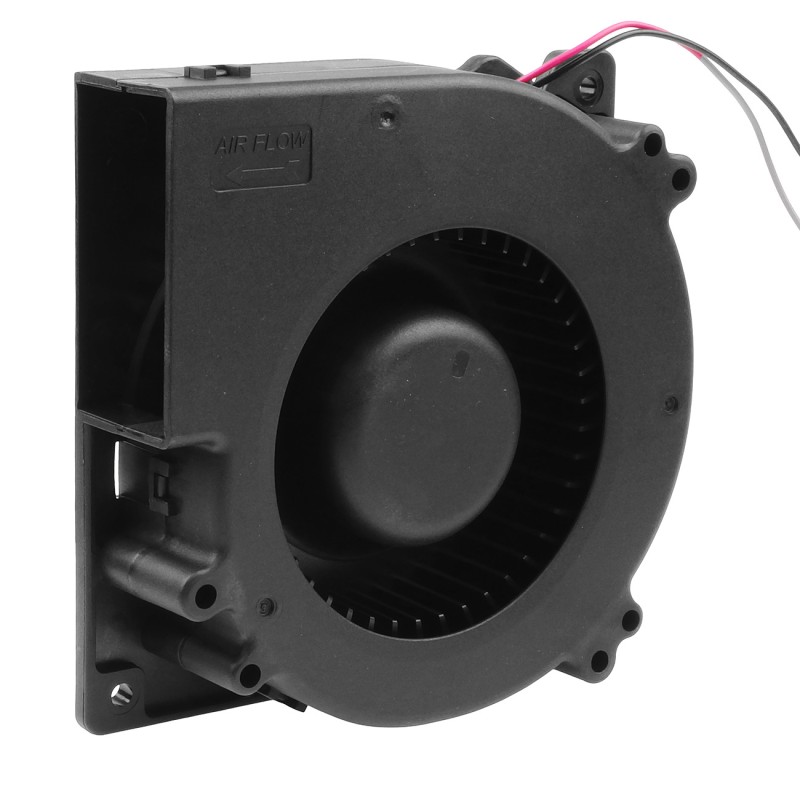

The SUNON blower fan with dimensions 120x120x32 mm and an operating voltage of 6...13.8V ensures intensive cooling and operational reliability, ideal for applications requiring high air flow, especially in difficult conditions. Sunon PMB1212PLB2A
Description
SUNON blower fan with dimensions 120x120x32 mm, designed for intensive cooling in demanding applications. The fan operates in the voltage range of 6...13.8V, offering high efficiency of 60.99 m³/h with a power consumption of 9.8W. With a rotation speed of 2500 rpm (±10%) and a noise level of 53.8 dBA, the fan provides effective cooling in places requiring high air flow. Equipped with a ball bearing and a brushless DC motor, the device is reliable and long-lasting. The housing and impeller made of thermoplastic meet UL94V-0 and ECE R-118 flammability standards, which guarantees safety in difficult working conditions. Additionally, the autorestart function increases the reliability of fan operation, especially in the event of power outages.
Properties
- Operating voltage: 6...13.8V
- Power consumption: 9.8W
- Rated current: 0.82A
- Efficiency: 60.99 m³/h
- Noise level: 53.8 dBA
- Rotational speed: 2500 rpm (±10%)
- Bearing type: ball
- Static pressure: 22.59 mm H2O
- Current and power consumption tolerance: ±15%
- Insulation resistance: min. 10MΩ
- Housing and impeller material: thermoplastic
- Insulation class: E
- Flammability class: UL94V-0, ECE R-118
- Pinouts: cable x2
- Wire size: 28 AWG
- Cable length: 0.3 m
- Operating temperature: -10...70°C
- Additional functions: autorestart
- Motor: Brushless DC
1193663
Data sheet
- Voltage
- 6 - 13,8 V
- Power
- 9,8 W
- Length
- 120 mm
- Width
- 120 mm
- Height
- 32 mm
- Weight
- Other
- Noise level
- 53,8 dBA
- Air flow efficiency
- 60,99 m³/h
- Rated current
- 82 mA
- Fan type
- Blower
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
ARK2 / 508 - 2pin mounting bracket 5.08mm
zł3.79
24h
Available quantity: 3766
Available
DC Barrel Jack to 2-Pin Terminal Block Adapter
zł15.90
24h
Available quantity: 23
Available
2-core cable, 20 cm long, with JST XH plug (2.50 mm pitch). The ends of the wires are isolated and tinned
zł2.10
24h
Available quantity: 82
Available
Cable (adapter) with a female DC 5.5x2.1 mm connector and alligator clips. It allows you to conveniently connect the device, e.g. to a power supply
zł3.74
24h
Available quantity: 14
Available
Switching Power Supply 12V/5A with simple DC plug 2.1/5.5 mm is a reliable power source for devices requiring a constant 12 V voltage. It offers high power, versatile application, and long-lasting durability, making it a suitable solution for home and semi-professional electronic installations. Especially recommended for surveillance systems, LED setups, and network devices.
zł24.60
24h
Available quantity: 6
Available
Other products in the same category (16)
Cooling fan with a Molex 51021-0200 connector designed for Odroid N2+ minicomputers
zł30.71
24h
Available quantity: 2
Available
Cooling fan powered with the voltage of 5 V with a lead out a cable with a two-pin connector with a pitch of 2.54 mm
zł9.66
24h
Available quantity: 9
Available
Large heat sink with two fans. It is designed for minicomputers Raspberry Pi 4 model B
zł21.73
4 weeks
No product available!
The compact SUNON axial fan offers high efficiency and low noise, ideal for space-constrained electronics and appliance applications. MF20080V2-A99-A
zł26.97
24h
Available quantity: 1
Available
YDM2006C05F micro fan with 5 VDC input and 20 x 20 x 6 mm dimensions, designed for efficient cooling of small electronic modules. Features low power consumption, quiet operation, and extended service life under continuous use
zł19.24
24h
Available quantity: 36
Available
The axial fan is an efficient and reliable cooling device with high air flow, low noise level, ideal for a variety of applications, guaranteeing the optimal operating temperature of components and a long life.
zł7.90
4 weeks
No product available!
The axial fan is an efficient and reliable cooling device with high air flow, low noise level, ideal for a variety of applications, guaranteeing the optimal operating temperature of components and a long life.
zł9.98
4 weeks
No product available!
The Sunon axial fan is an efficient and reliable cooling device with high airflow, low noise level, ideal for a variety of applications, guaranteeing the optimal operating temperature of components and long life. Sunon MEC0382V1-000U-A99
zł37.90
24h
Available quantity: 18
Available
The Sunon axial fan is a compact, efficient and quiet cooling solution, ideal for a variety of applications, ensuring the optimal operating temperature of components and long life. Sunon MF40101V2-1000U-A99
zł14.90
24h
Available quantity: 33
Available
The Sunon axial fan is a compact, quiet and efficient cooling solution, ideal for a variety of applications, ensuring the optimal operating temperature of components and long life. Sunon MF40202V2-1000U-A99
zł21.89
24h
Available quantity: 32
Available
The Sunon axial fan is an efficient and reliable cooling device with high airflow, low noise level, ideal for a variety of applications, guaranteeing the optimal operating temperature of components and long life
zł16.40
24h
Available quantity: 16
Available
The Sunon axial fan is a compact, quiet and efficient cooling solution, ideal for a variety of applications, ensuring optimal component operating temperatures and long service life. Sunon MF17080V1-1000U-G99
zł30.75
24h
Available quantity: 6
Available
Cooling fan for Nintendo Switch. It uses a 4-wire pin layout known from traditional PC fans. It is powered by 5 V and reaches a maximum speed of up to 8000 rpm. SparkFun SPX-18592
zł103.90
3 weeks
No product available!
The AC fan with dimensions of 120x120x38mm operates on 230V, offering an air flow of 148m3/h and a rotation speed of 2750 rpm. Constructed of a thermoplastic rotor and aluminum housing, it has a noise level of 45dBA and a ball bearing. Sunon DP201A2123HBT.GN
zł44.28
24h
Available quantity: 14
Available
The 230V AC axial fan with dimensions 120x120x38mm has a capacity of 161m3/h and power consumption of 22W. Made of a thermoplastic rotor and aluminum housing, it operates in the temperature range from -10 to 70°C. Sunon DP200A2123XST.GN
zł33.65
24h
Available quantity: 28
Available

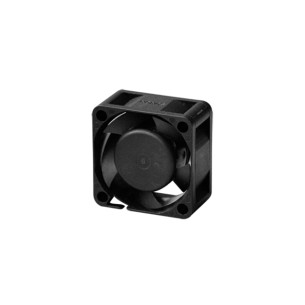

The DC fan with dimensions of 40x40x20mm operates at a voltage of 8-27.6V, offering an air flow of 18.25m3/h and a rotation speed of 8000rpm. Made of thermoplastic, it guarantees reliability thanks to the Vapo bearing and can operate at temperatures from -10 to 70°C.
