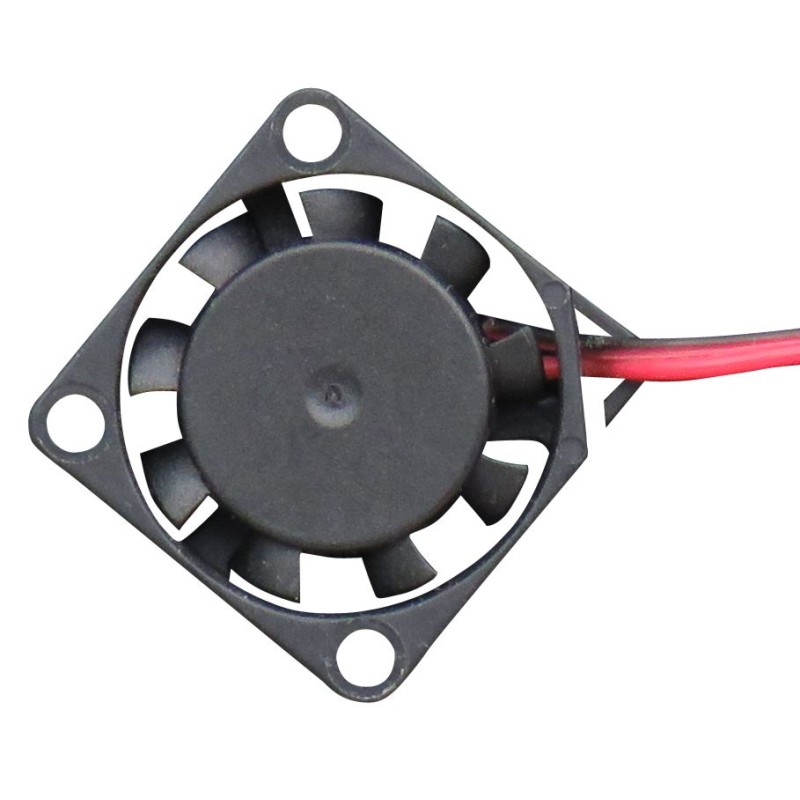

YDM2006C05F - Fan 20x20x6mm, 5V, 0.33CFM, 7.85dBA
ID: 588049
5906623495108
zł19.15
Tax included
zł15.57 tax excl.
YDM2006C05F micro fan with 5 VDC input and 20 x 20 x 6 mm dimensions, designed for efficient cooling of small electronic modules. Features low power consumption, quiet operation, and extended service life under continuous use
Description
Axial fan with dimensions of 20 x 20 x 6 mm designed for cooling electronic systems in compact enclosures. Powered by 5 VDC, it operates at a typical rotational speed of 10000 RPM, delivering approximately 0.55 CFM airflow at a static pressure of 1.6 mmH₂O. The maximum current draw is 55 mA, and power consumption does not exceed 0.3 W. The construction features a PBT frame (UL94V-0 flammability class) and an impeller made of glass fiber reinforced plastic, ensuring durability and resistance to environmental conditions. Suitable for operating temperatures from -10°C to +70°C, with a rated lifetime of 40000 hours under continuous operation at 25°C. Compatible with heatsink reference number 588049.
Specifications
- Supply voltage: 4.5 – 5.5 VDC
- Operating current: ≤55 mA
- Power consumption: ≤0.3 W
- Rotational speed: 10000 RPM (typical)
- Airflow: approx. 0.55 CFM
- Static pressure: 1.6 mmH₂O
- Noise level: ≤18 dBA
- Operating temperature range: -10°C to +70°C
- Expected lifetime: 40000 hours @25°C
- Dimensions: 20 x 20 x 6 mm
- Frame material: PBT (UL94V-0)
- Impeller material: glass fiber reinforced plastic
588049
Data sheet
- Voltage
- 5 V
- Power
- Other
- Length
- 20 mm
- Width
- 20mm
- Height
- 6 mm
- Weight
- 3 g
- Noise level
- 18 dBA
- Air flow efficiency
- 0,93 m³/h
- Rated current
- 30 mA
- Fan type
- Axial
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
