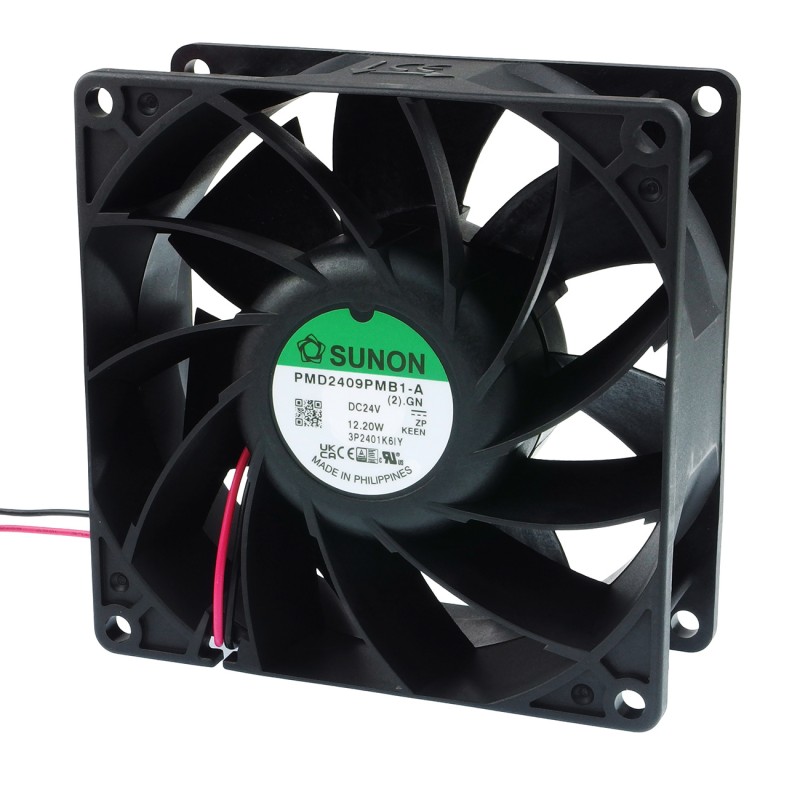

Sunon PMD2409PMB1-A(2).GN – Axial DC Fan, 24VDC, 92×92×38 mm
ID: 1198648
5902186306912
zł71.91
Tax included
zł58.46 tax excl.
The Sunon PMD2409PMB1-A(2).GN 24 V DC fan delivers high cooling performance, making it ideal for systems requiring strong airflow. Equipped with ball bearings, a brushless motor, and auto-restart, it is suitable for industrial and electronic applications that demand heat and flame resistance.
Description
The Sunon PMD2409PMB1-A(2).GN axial DC fan, measuring 92 × 92 × 38 mm, is designed for intensive cooling of electronic and industrial components. It operates at 24 V DC with a wide voltage range of 10 to 27.6 V, and its brushless motor ensures high reliability and efficiency. The fan delivers 204.21 m³/h airflow at a speed of 4900 RPM and a noise level of 57.6 dBA. Built with a thermoplastic frame and impeller, it uses ball bearings for extended service life and stable operation. The fan includes an auto-restart function and meets flammability standards UL94V-0 and ECE R-118.
Features
- fan type: DC
- design: axial
- operating voltage: 10–27.6 V DC
- rated voltage: 24 V DC
- dimensions: 92 × 92 × 38 mm
- power consumption: 12.2 W
- rated current: 0.51 A ±15%
- rotational speed: 4900 RPM ±10%
- airflow: 204.21 m³/h
- noise level: 57.6 dBA
- static pressure: 18.02 mm H₂O
- bearing type: ball
- housing and impeller material: thermoplastic
- insulation resistance: ≥10 MΩ
- insulation class: A
- auto-restart function
- motor type: brushless DC
- leads: 2 × 28 AWG wires, 0.3 m length
- operating temperature: -10°C to +70°C
- flammability rating: UL94V-0, ECE R-118
- gross weight: 185.75 g
1198648
Data sheet
- Voltage
- 10 - 27,6 V
- Power
- 12,2 W
- Length
- 92 mm
- Width
- 92 mm
- Height
- 38 mm
- Weight
- 185 g
- Noise level
- 57,6 dBA
- Air flow efficiency
- 204,21 m³/h
- Rated current
- 510 mA
- Fan type
- Axial
