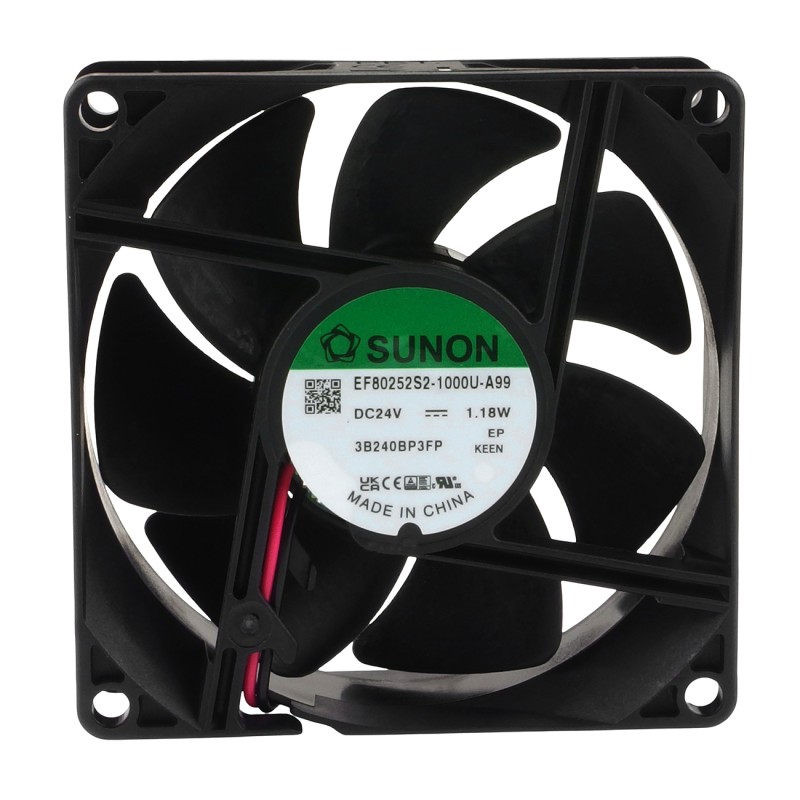

Sunon EF80252S2-1000U-A99 – Axial fan 80×80×25 mm 24 V DC
ID: 1198651
5902186329898
zł18.91
Tax included
zł15.37 tax excl.
Sunon EF80252S2-1000U-A99 is a compact 24 V DC axial fan with dimensions of 80×80×25 mm, equipped with a sleeve bearing and a brushless motor with auto-restart. It features quiet operation (30 dBA), an airflow capacity of 62.86 m³/h, and a durable construction, making it a reliable solution for cooling industrial and electronic devices.
Description
Sunon EF80252S2-1000U-A99 axial fan designed for cooling electronic, industrial, and automation systems. Powered by 24 V DC, it operates within a wide voltage range of 8…27.6 V DC, ensuring stable and reliable performance under various conditions. Equipped with a brushless DC motor with an auto-restart function and a sleeve bearing, it combines high durability with quiet operation. The housing and impeller are made of temperature-resistant thermoplastic compliant with the UL94V-0 flammability standard, guaranteeing operational safety and resistance to environmental factors.
Features
- Type: DC axial fan
- Supply voltage: 24 V DC
- Operating voltage range: 8…27.6 V DC
- Current consumption: 42 mA (±15%)
- Power consumption: 1.18 W (±15%)
- Rotational speed: 2900 rpm (±10%)
- Airflow capacity: 62.86 m³/h
- Static pressure: 3.81 mm H₂O
- Noise level: 30 dBA
- Bearing type: sleeve
- Motor: brushless DC with auto-restart function
- Insulation resistance: ≥10 MΩ
- Insulation class: A
- Impeller material: thermoplastic
- Frame material: thermoplastic
- Flammability rating: UL94V-0
- Operating temperature: –10…70 °C
- Leads: 2 wires
- Lead length: 0.315 m
- Weight: 77.6 g
1198651
Data sheet
- Voltage
- 8 - 27,6 V
- Power
- 1,18 W
- Length
- 80 mm
- Width
- 80 mm
- Height
- 25 mm
- Weight
- 77,6 g
- Noise level
- 30 dBA
- Air flow efficiency
- 62,86 m³/h
- Rated current
- 42 mA
- Fan type
- Axial
