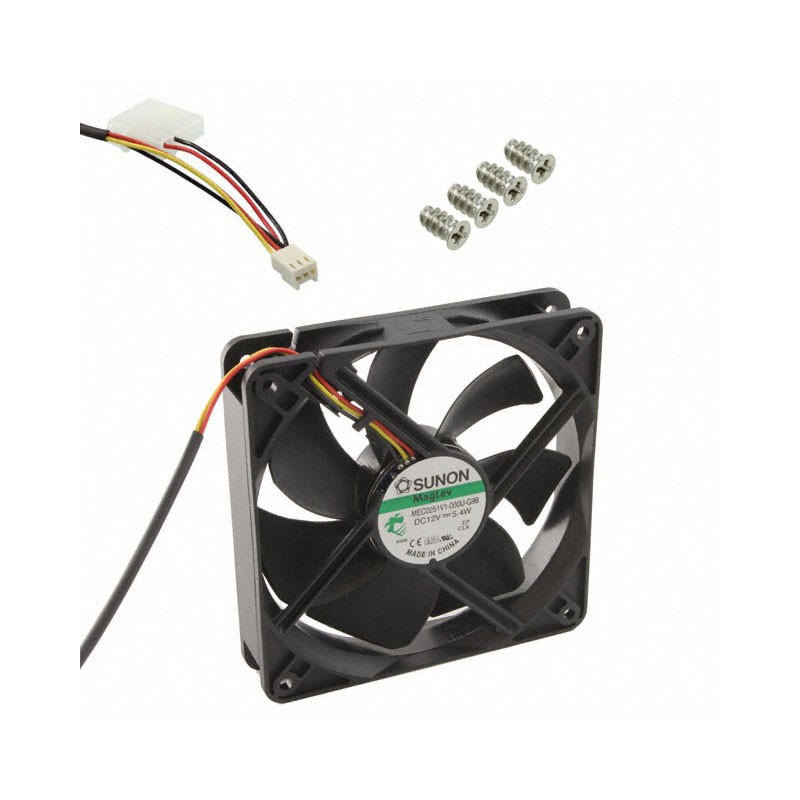

DC axial fan 5,4W 120x120x25 mm
ID: 1193600
5902186302181
zł41.91
Tax included
zł34.07 tax excl.
The SUNON 120x120x25mm DC axial fan provides exceptional cooling performance and reliability with advanced Vapo bearings and an autorestart function, making it an excellent solution for applications requiring high performance and durability. Sunon MEC0251V1-000U-A99
Description
The SUNON axial fan with dimensions of 120x120x25 mm is a high-performance cooling solution, designed to operate with a DC voltage in the range of 6 to 13.8 V. With a power of 5.4 W and a rotation speed of 3100 rpm (±10%), the fan reaches a capacity of 183.8 m³/h, which makes it an ideal choice for intensive applications requiring effective heat dissipation. Despite its high efficiency, it generates a noise level of 44.5 dBA. The fan uses Vapo bearings, which offer excellent stability and long life. The housing and impeller made of thermoplastic ensure durability and resistance to difficult operating conditions. Additional functions such as autorestart and a brushless DC motor emphasize its reliability. The fan meets stringent ECE R-118 and UL94V-0 flammability standards, making it a safe choice for a wide range of applications.
Properties
- Fan type: DC axial
- Operating voltage: 6...13.8 V
- Size: 120x120x25 mm
- Power consumption: 5.4 W
- Rated current: 0.451 A
- Capacity: 183.8 m³/h
- Noise level: 44.5 dBA
- Rotational speed: 3100 rpm (±10%)
- Bearing type: Vapo
- Insulation resistance: min. 10 MΩ
- Rotor material: Thermoplastic
- Housing material: Thermoplastic
- Insulation class: A
- Pinouts: Cable x2 (length 0.33 m, size 24 AWG)
- Operating temperature: -10...70°C
- Static pressure: 7.11 mm H2O
- Flammability class: ECE R-118, UL94V-0
- Additional functions: Autorestart
- Fan motor: Brushless DC
1193600
Data sheet
- Voltage
- 6 - 13,8 V
- Power
- 5,4 W
- Length
- 120 mm
- Width
- 120 mm
- Height
- 25 mm
- Weight
- Other
- Noise level
- 44,5 dBA
- Air flow efficiency
- 183,8 m³/h
- Rated current
- 451 mA
- Fan type
- Axial
