DC axial fan 1,44W 80x80x25 mm
ID: 1193217
5902186328945
zł17.90
Tax included
zł14.55 tax excl.
The SUNON 80x80x25mm DC axial fan offers quiet and effective operation, reliability thanks to Vapo bearings and the autorestart function, and advanced rotational speed control, which makes it an ideal solution for compact cooling systems. Sunon MF80251V1-1000U-G99
Description
The 80x80x25 mm SUNON axial fan is a compact and effective cooling solution, ideal for a variety of electronic and industrial applications. The fan, powered by direct current (DC) in the voltage range from 4.5 to 13.8 V, offers a capacity of 69.29 m³/h at a rotational speed of 3200 rpm, ensuring effective heat dissipation. The device operates quietly, generating a noise level of 33 dBA, making it suitable for environments requiring quiet operation. The fan is equipped with Vapo bearings, which ensure reliability and long service life. Additionally, thanks to the F-type signal output (Frequency Generator), it is possible to monitor the rotational speed, which increases control over the operation of the device. The housing and impeller are made of thermoplastic, which ensures resistance to changing operating conditions. The product also has an auto-restart function, which increases its reliability. The fan meets the ECE R-118 and UL94V-0 flammability standards, ensuring safety of use.
Properties
- Fan type: DC axial
- Operating voltage: 4.5...13.8 V
- Size: 80x80x25 mm
- Power consumption: 1.44 W
- Rated current: 0.12 A
- Productivity: 69.29 m³/h
- Noise level: 33 dBA
- Rotational speed: 3200 rpm
- Bearing type: Vapo
- Signal output: F-type (Frequency Generator)
- Insulation resistance: min. 10 MΩ
- Rotor material: Thermoplastic
- Housing material: Thermoplastic
- Pinouts: Cable x3 (length 0.315 m, size 24 AWG)
- Operating temperature: -10...70°C
- Static pressure: 4.57 mm H2O
- Flammability class: ECE R-118, UL94V-0
- Additional functions: Autorestart
- Fan motor: Brushless DC
1193217
Data sheet
- Voltage
- 4,5 - 13,8 V
- Power
- 1,44 W
- Length
- 80 mm
- Width
- 80 mm
- Height
- 25 mm
- Weight
- Other
- Noise level
- 33 dBA
- Air flow efficiency
- 69,29 m³/h
- Rated current
- 120 mA
- Fan type
- Axial
Manufacturer
- BTC Korporacja sp. z o. o.
- Ludwinowo Zegrzyńskie 52G
- 05-140 Ludwinowo Zegrzyńskie
- Poland
- [email protected]
- 22 767 36 20
Responsible person
- BTC Korporacja sp. z o. o.
- Ludwinowo Zegrzyńskie 52G
- 05-140 Ludwinowo Zegrzyńskie
- Poland
- [email protected]
- 22 767 36 20
You might also like
DC Barrel Jack to 2-Pin Terminal Block Adapter
zł16.59
24h
Available quantity: 14
Available
A 20 cm long 3-pin cable with a JST XH2.5 female plug on one side
zł2.78
24h
Available quantity: 186
Available
Switching Power Supply 12V/5A with simple DC plug 2.1/5.5 mm is a reliable power source for devices requiring a constant 12 V voltage. It offers high power, versatile application, and long-lasting durability, making it a suitable solution for home and semi-professional electronic installations. Especially recommended for surveillance systems, LED setups, and network devices.
zł30.41
24h
Available quantity: 2
Available
Other products in the same category (16)

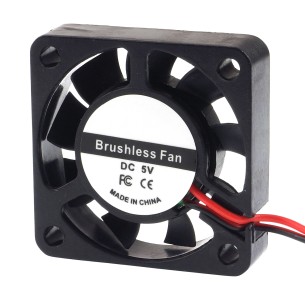

An axial DC fan with dimensions of 40x40x10mm operates in the voltage range of 4.5-13.8V with a rotational speed of 7000 rpm. The device has a low noise level of 27.3dBA and is made of thermoplastic with an operating temperature range from -10 to 70°C.
