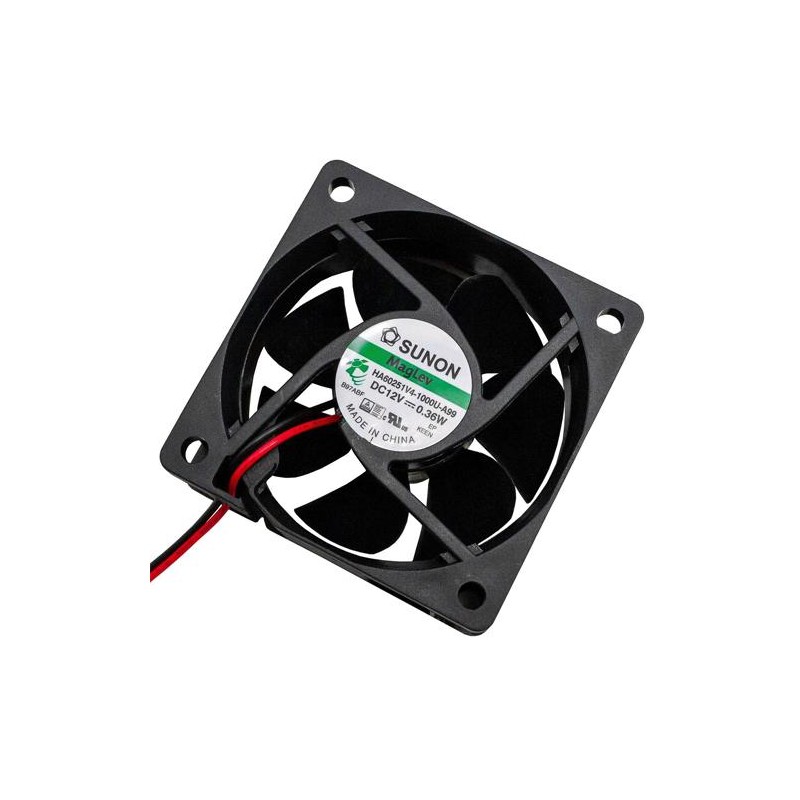

DC axial fan 0,36W 60x60x25 mm
ID: 1193659
5902186302228
zł12.90
Tax included
zł10.49 tax excl.
The SUNON 60x60x25 mm DC fan is an ideal solution for applications requiring quiet, energy-saving cooling while maintaining high reliability and safety. Sunon HA60251V4-1000U-A99
Description
The SUNON DC axial fan with dimensions of 60x60x25 mm is an energy-saving and extremely quiet device, ideal for cooling electronic devices where low noise level is crucial. The fan operates at a voltage of 4.5 to 13.8V, consuming 0.36W of power and a rated current of 20 mA. It generates an air flow of 23.32 m³/h at a rotation speed of 2500 rpm, while maintaining a very low noise level of only 10.7 dBA. Thanks to the use of innovative Vapo bearings, the fan offers reliable operation and long service life. Both the impeller and the housing are made of resistant thermoplastic that meets the stringent flammability standards ECE R-118 and UL94V-0. The fan has a brushless DC motor with an autorestart function, which increases its reliability. The pins are two wires 0.29 m long and 26AWG in size.
Properties
- Fan type: DC, axial
- Dimensions: 60x60x25 mm
- Operating voltage: 4.5-13.8V
- Power consumption: 0.36W
- Rated current: 20 mA
- Productivity: 23.32 m³/h
- Noise level: 10.7 dBA
- Rotational speed: 2500 rpm
- Static pressure: 1.52 mm H2O
- Bearing type: Vapo
- Insulation resistance: min. 10 MΩ
- Rotor material: thermoplastic
- Housing material: thermoplastic
- Insulation class: A
- Terminals: 2x 26AWG cable, length 0.29 m
- Operating temperature: -10...70°C
- Flammability class: ECE R-118, UL94V-0
- Fan motor: brushless DC
- Additional functions: autorestart
1193659
Data sheet
- Voltage
- 4,5 - 13,8 V
- Power
- 0,36 W
- Length
- 60 mm
- Width
- 60 mm
- Height
- 25 mm
- Weight
- Other
- Noise level
- 10,7 dBA
- Air flow efficiency
- 23,32 m³/h
- Rated current
- 20 mA
- Fan type
- Axial
