Sunon PF38281B1-000U-S99 Axial Fan 12 V DC, 38 × 38 × 28 mm
ID: 1198653
5902186309548
zł66.42
Tax included
zł54.00 tax excl.
The Sunon PF38281B1-000U-S99 is a high-performance, compact 12 V DC axial fan with PWM control, speed detection, and auto-restart. Designed for demanding cooling applications in electronics and automation, it offers reliable operation and meets stringent material safety standards.
Description
The Sunon PF38281B1-000U-S99 axial fan is designed for 12 V DC systems, operating within a voltage range of 10.2 to 13.2 V. It delivers high cooling performance (30.75 m³/h) in a compact 38 × 38 × 28 mm format. The brushless DC motor with auto-restart and ball bearings ensures long service life and reliable operation. The fan includes signal outputs: Frequency Generator (F) and Rotation Detector (R), as well as PWM control for speed regulation. The thermoplastic impeller and housing are rated UL94V-0, meeting flammability standards for electronics and automotive use.
Specifications
- type: axial fan
- supply voltage: 12 V DC (range 10.2–13.2 V)
- power consumption: 3.78 W
- rated current: 0.315 A (±15%)
- dimensions: 38 × 38 × 28 mm
- airflow: 30.75 m³/h
- static pressure: 36.05 mm H₂O
- speed: 16000 RPM (±10%)
- noise level: 51.8 dBA
- bearing type: ball bearing
- motor: brushless DC
- features: auto-restart, PWM, F and R type signal output
- leads: 4 wires, 150 mm, 28 AWG
- housing and impeller material: thermoplastic (UL94V-0)
- insulation class: A
- insulation resistance: ≥10 MΩ
- operating temperature: −10 °C to +70 °C
- flame resistance standard: ECE R-118 compliant
- gross weight: 40.49 g
1198653
Data sheet
- Voltage
- 10,2 – 13,2 V
- Power
- 3,78 W
- Length
- 38 mm
- Width
- 38 mm
- Height
- 28 mm
- Weight
- 40,49 g
- Noise level
- 51,8 dBA
- Air flow efficiency
- 30,75 m³/h
- Rated current
- 315 mA
- Fan type
- Axial
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Other products in the same category (16)
Wentylator SUNON o wymiarach 60x60x10 mm zapewnia efektywne chłodzenie i niski poziom hałasu, idealny do zastosowań w kompaktowych urządzeniach elektronicznych, oferując niezawodność i bezpieczeństwo dzięki funkcji autorestartu i solidnym materiałom. Sunon MF60101V2-1000U-A99
zł17.90
24h
Available quantity: 24
Available
Sunon EF92251S1-1000U-A99 is a reliable 12 V DC axial fan with dimensions of 92×92×25 mm and an airflow capacity of 87.04 m³/h. Thanks to its brushless motor, auto-restart function, and quiet operation (34 dBA), it is ideal for electronic systems that require effective and stable cooling.
zł12.30
24h
Available quantity: 9
Available
The 50x50x10mm SUNON fan is an advanced cooling device that combines quiet operation, high efficiency and durability, making it an ideal choice for demanding electronic and mechanical applications. Sunon EE50101S2-1000U-999
zł11.89
24h
Available quantity: 25
Available

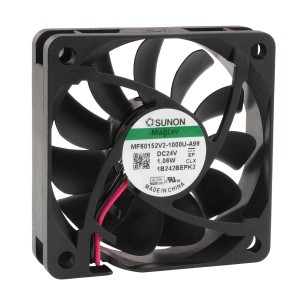

Sunon MF60152V1-1000U-A99 is a high-performance 60 mm axial fan with 24 V DC power supply, equipped with durable Vapo bearings and a brushless motor with auto-restart function. Designed for efficient cooling in industrial, electronic, and automotive systems, with high temperature and fire resistance.
