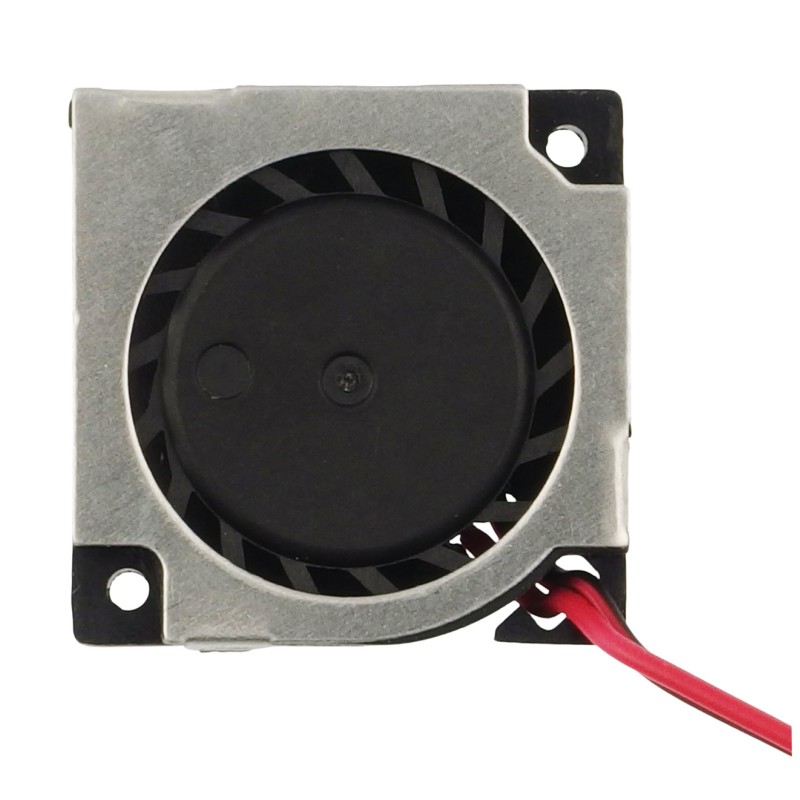

YB2006H05L - 5V DC turbine fan, XH2.54 connector
search
  • YB2006H05L - 5V DC turbine fan, XH2.54 connector
  • YB2006H05L - 5V DC turbine fan, XH2.54 connector
  • YB2006H05L - 5V DC turbine fan, XH2.54 connector
  • YB2006H05L - 5V DC turbine fan, XH2.54 connector
  • YB2006H05L - 5V DC turbine fan, XH2.54 connector
  • YB2006H05L - 5V DC turbine fan, XH2.54 connector
  • YB2006H05L - 5V DC turbine fan, XH2.54 connector
ID: 1198141
5902186329058
zł19.73
Tax included

zł16.04 tax excl.

The YB2006H05L 5V DC radial airflow fan with XH2.54 connector enables efficient cooling of electronic components in confined spaces. Suitable for 3D printers, miniature controllers, and microcontroller modules requiring stable airflow

24h
Available
Available quantity: 109

Description

The YB2006H05L 5V DC turbine fan is designed for cooling electronic components in compact enclosures, control modules, and 3D printers. The radially directed airflow allows for effective heat dissipation from heat sink surfaces and the interior of enclosed spaces. A slide bearing ensures quiet and stable operation in continuous operation. Cables terminated with XH2.54 connectors facilitate quick connection to control boards or power modules.

Features

  • Power supply voltage: 5 V DC
  • Fan type: turbine (blower)
  • Dimensions: 20 × 20 × 6 mm
  • Rated current: approx. 0.1 A
  • Rotation speed: approx. 10,000 rpm
  • Air flow: approx. 1.5 CFM
  • Noise level: approx. 25 dB
  • Bearing type: plain
  • Cable length: approx. 15 cm
  • Connector: XH2.54 2-pin
  • Air exhaust direction: side
1198141

Data sheet

Voltage
5 V
Power
0,1 W
Length
20 mm
Width
20mm
Height
6 mm
Noise level
25 dBA
Air flow efficiency
2,21 m³/h
Rated current
100 mA
Fan type
Blower
