DC axial fan 0,96W 40x40x20 mm
ID: 1193661
5902186309081
zł16.61
Tax included
zł13.50 tax excl.

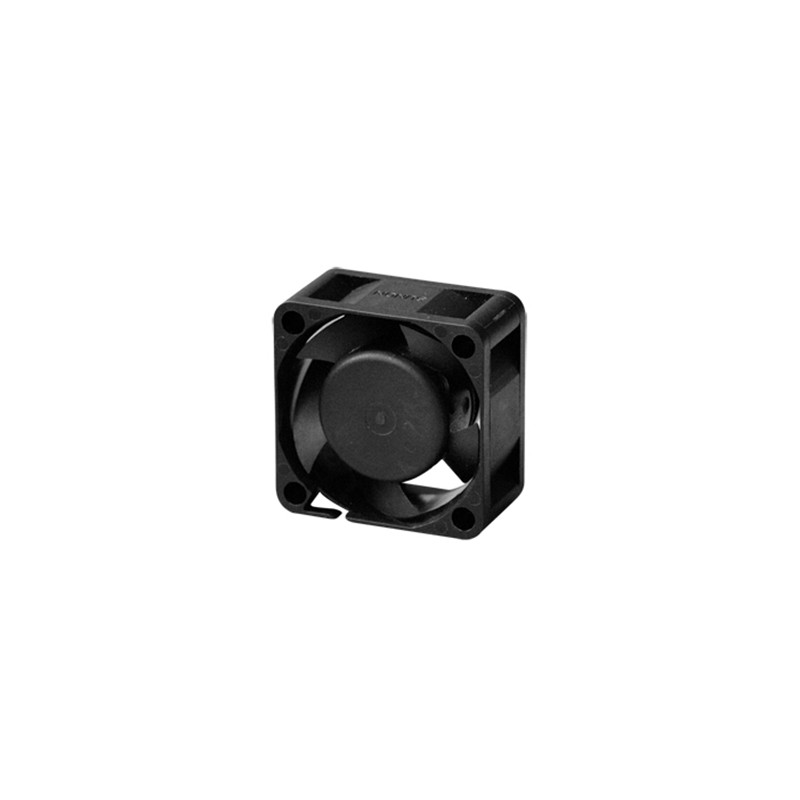

The SUNON 40x40x20 mm DC fan is a robust and reliable cooling solution, offering high performance and safety in compact electronic applications. Sunon MF40201VX-1000U-A99
Description
The SUNON DC axial fan with dimensions of 40x40x20 mm is an efficient cooling device, ideal for compact electronic systems requiring reliable heat dissipation. The fan operates in the voltage range of 4.5-13.8V, consuming 0.96W of power and a rated current of 80 mA. At a rotational speed of 8000 rpm, the fan generates an air flow of 18.25 m³/h, with a noise level of 27.5 dBA. The use of Vapo bearings ensures quiet operation and long life of the device. Both the impeller and the fan casing are made of durable thermoplastic that meets ECE R-118 and UL94V-0 flammability standards, ensuring high safety of use. The fan has a brushless DC motor with an autorestart function, which increases its reliability and durability. It is equipped with a 0.305 m long and 26AWG cable, which facilitates installation and integration with devices.
Properties
- Fan type: DC, axial
- Dimensions: 40x40x20 mm
- Operating voltage: 4.5-13.8V
- Power consumption: 0.96W
- Rated current: 80 mA
- Capacity: 18.25 m³/h
- Noise level: 27.5 dBA
- Rotational speed: 8000 rpm
- Static pressure: 7.37 mm H2O
- Bearing type: Vapo
- Insulation resistance: min. 10 MΩ
- Rotor material: thermoplastic
- Housing material: thermoplastic
- Insulation class: A
- Terminals: 2x 26AWG cable, length 0.305 m
- Operating temperature: -10...70°C
- Flammability class: ECE R-118, UL94V-0
- Fan motor: brushless DC
- Additional functions: autorestart
1193661
Data sheet
- Voltage
- 4,5 - 13,8 V
- Power
- 0,96 W
- Length
- 40mm
- Width
- 40mm
- Height
- 20 mm
- Weight
- Other
- Noise level
- 27,5 dBA
- Air flow efficiency
- 18,25 m³/h
- Rated current
- 80 mA
- Fan type
- Axial
