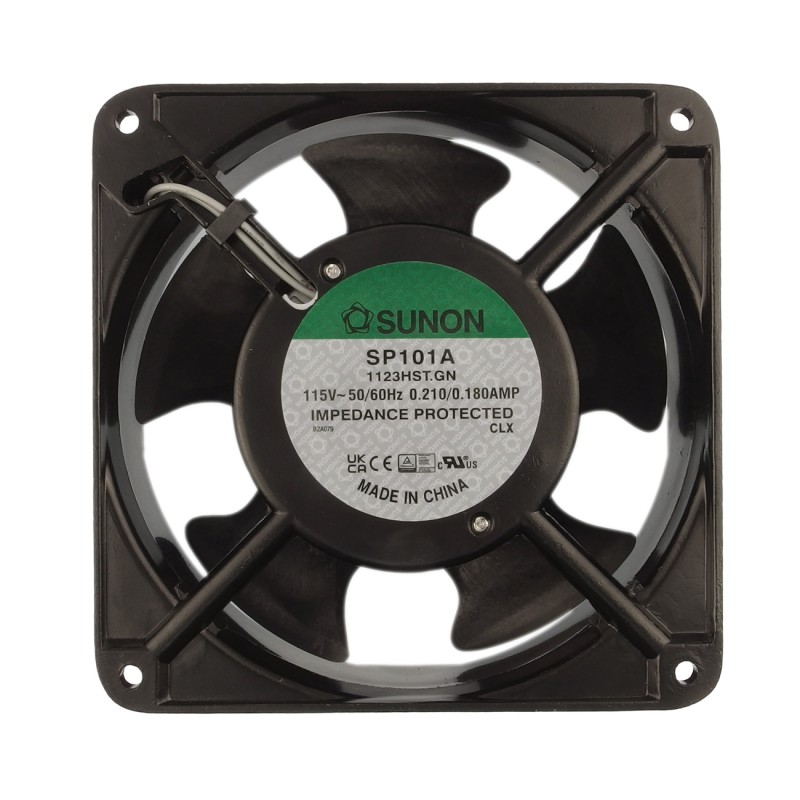

AC axial fan 20W 120x120x38 mm
ID: 1193607
zł66.42
Tax included
zł54.00 tax excl.
The SUNON 120x120x38mm AC axial fan is a solid cooling solution that combines high performance with reliability, thanks to its solid construction and compliance with safety standards, ideal for industrial and electronic applications that require durability and effective cooling. Sunon SP101A1123HST.GN
Description
The SUNON axial fan with dimensions of 120x120x38 mm is designed for effective cooling in industrial and electronic applications requiring alternating current (AC) power. The fan has a power consumption of 20 W and a rated current of 0.21 A, offering a capacity of 144.41 m³/h at a rotational speed of 2550 rpm. Despite its efficiency, it generates a noise level of 48 dBA, which ensures the right balance between power and acoustic comfort. The fan is equipped with sliding bearings that ensure reliable operation in a wide temperature range from -10°C to 70°C. The casing is made of aluminum and the rotor is made of thermoplastic, ensuring resistance to difficult operating conditions. Additionally, the fan meets the stringent flammability standards ECE R-118 and UL94V-0, which proves its high quality and safety. The device operates at a frequency of 50...60 Hz and uses a single-phase motor.
Properties
- Fan type: AC axial
- Size: 120x120x38 mm
- Power consumption: 20 W
- Rated current: 0.21 A
- Productivity: 144.41 m³/h
- Noise level: 48 dBA
- Rotational speed: 2550 rpm
- Bearing type: Sliding
- Frequency: 50...60 Hz
- Insulation resistance: min. 500 MΩ
- Rotor material: Thermoplastic
- Housing material: Aluminum
- Pinouts: 2.8x0.5 mm connectors
- Operating temperature: -10...70°C
- Static pressure: 6.3 mm H2O
- Motor type: 1-phase
- Flammability class: ECE R-118, UL94V-0
1193607
Data sheet
- Voltage
- 230 V AC
- Power
- 20W
- Length
- 120 mm
- Width
- 120 mm
- Height
- 38 mm
- Weight
- Other
- Noise level
- 48 dBA
- Air flow efficiency
- 144,41 m³/h
- Rated current
- 210 mA
- Fan type
- Axial
