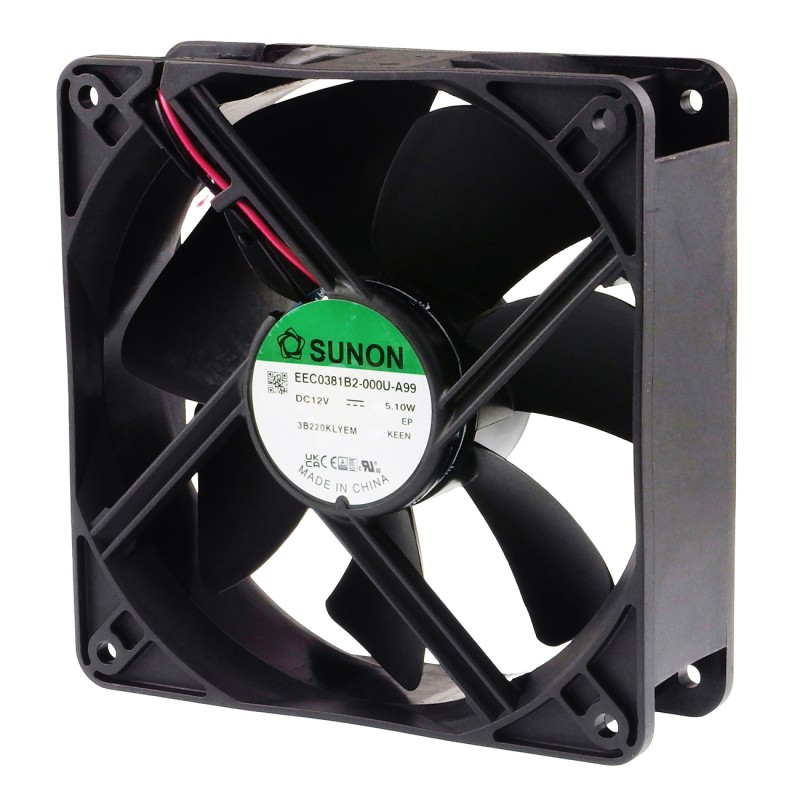

The DC SUNON axial fan with dimensions of 120x120x38 mm is a high-performance device designed for advanced cooling systems. It operates in the voltage range from 6 to 13.8V, power consumption 5.1W and rated current 0.421A. With a rotation speed of 2600 rpm (±10%), it generates an air flow of 197.2 m³/h, ensuring effective cooling even in demanding applications. Equipped with durable ball bearings, it offers long service life and reliable operation in a wide temperature range from -10 to 70°C. Despite its high performance, the noise level is 44 dBA, which makes it relatively quiet considering its power. The housing and rotor are made of resistant thermoplastic, and the brushless DC motor with autorestart function ensures reliability and safety of use. The fan meets ECE R-118 and UL94V-0 flammability standards, which makes it suitable for use in automotive and other applications where high fire resistance is required.
