AC axial fan 11W 120x120x38 mm
ID: 1193608
5902186304635
zł70.90
Tax included
zł57.64 tax excl.

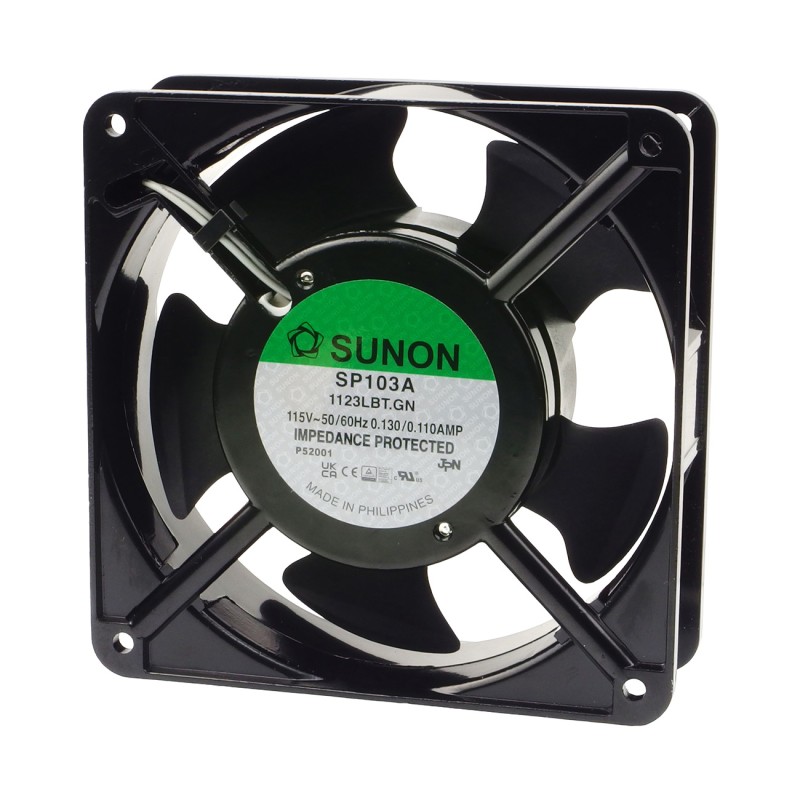

Compact SUNON axial fan with dimensions of 120x120x38 mm, designed for efficient cooling in industrial and automotive applications. Sunon SP103A1123LBT.GN
Description
The SUNON axial fan with dimensions of 120x120x38 mm is a solid device designed for effective cooling in various applications. Powered by alternating current (AC), it offers a capacity of 122 m³/h at a rotation speed of 2150 rpm, ensuring effective heat dissipation. Thanks to the use of a ball bearing, the fan is characterized by long life and reliable operation. The housing made of durable aluminum and the rotor made of thermoplastic guarantee durability and resistance to various operating conditions. The fan is equipped with a 31 cm power cord with two wires for easy installation. The device meets the UL94V-0 and ECE R-118 flammability standards, which confirms its safety in automotive and industrial applications.
Properties
- Fan type: AC, axial
- Dimensions: 120x120x38 mm
- Power consumption: 11 W
- Rated current: 0.13 A
- Capacity: 122 m³/h
- Noise level: 37 dBA
- Bearing type: ball
- Rotational speed: 2150 rpm
- Current and power consumption tolerance: ±15%
- Frequency: 50 Hz
- Insulation resistance: min. 500 MΩ
- Rotor material: thermoplastic
- Housing material: aluminum
- Operating temperature: -10...70°C
- Cable length: 0.31 m
- Flammability class: UL94V-0, ECE R-118
- Static pressure: 2.29 mm H2O
- Wire size: 24 AWG
- Motor type: 1-phase
1193608
Data sheet
- Voltage
- 230 V AC
- Power
- 11 W
- Length
- 120 mm
- Width
- 120 mm
- Height
- 38 mm
- Weight
- Other
- Noise level
- 37 dBA
- Air flow efficiency
- 122 m³/h
- Rated current
- 130 mA
- Fan type
- Axial
