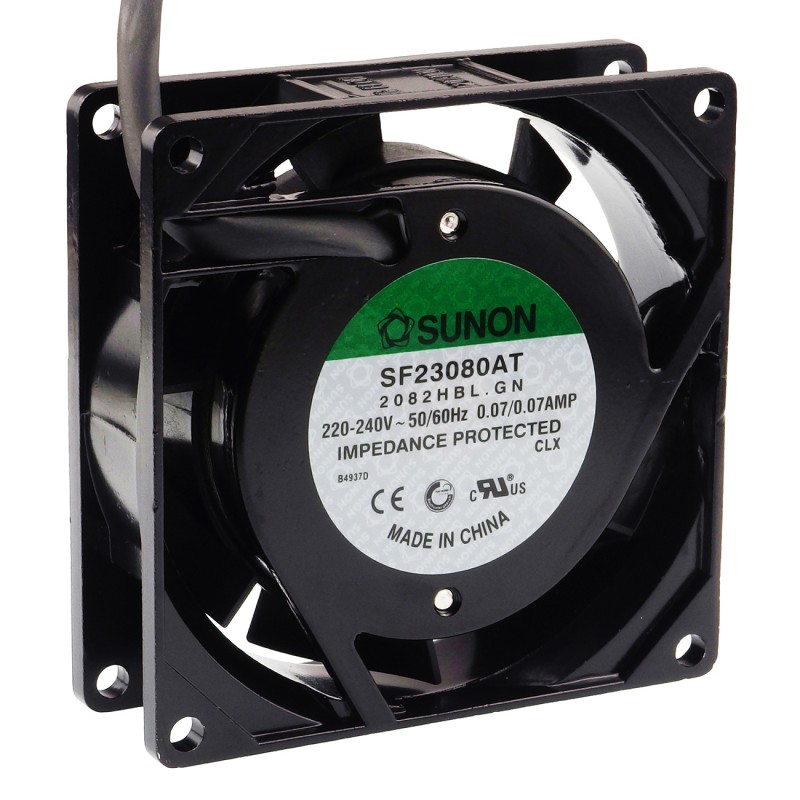

AC axial fan 14W 80x80x25 mm
ID: 1193610
5902186302198
zł41.51
Tax included
zł33.75 tax excl.
The SUNON 80x80x25mm AC axial fan provides quiet and efficient cooling and high reliability thanks to its ball bearings and solid construction, making it an excellent choice for a wide range of industrial and electronics applications. Sunon SF23080AT2082HBL.GN
Description
The SUNON axial fan with dimensions of 80x80x25 mm is an efficient and reliable cooling solution intended for industrial and electronic applications. The fan powered by alternating current (AC) has a power of 14 W and a rated current of 70 mA, which allows it to achieve a capacity of 30.6 m³/h at a rotational speed of 2450 rpm. With a low noise level of 30 dBA, the device is ideal for environments requiring quiet operation. Equipped with ball bearings, the fan ensures durability and long life. The housing made of aluminum and the rotor made of thermoplastic guarantee resistance to difficult operating conditions, including operating temperatures from -10°C to 70°C. The product meets the ECE R-118 and UL94V-0 flammability standards, which proves its safety and compliance with industry requirements.
Properties
- Fan type: AC axial
- Size: 80x80x25 mm
- Power consumption: 14 W
- Rated current: 70 mA
- Efficiency: 30.6 m³/h (±5%)
- Noise level: 30 dBA
- Rotational speed: 2450 rpm
- Bearing type: Ball
- Frequency: 50 Hz
- Insulation resistance: min. 500 MΩ
- Rotor material: Thermoplastic
- Housing material: Aluminum
- Pinouts: Cable x2 (length 0.33 m, size 24 AWG)
- Operating temperature: -10...70°C
- Static pressure: 3.3 mm H2O
- Flammability class: ECE R-118, UL94V-0
1193610
Data sheet
- Voltage
- 230 V AC
- Power
- 14 W
- Length
- 80 mm
- Width
- 80 mm
- Height
- 25 mm
- Weight
- Other
- Noise level
- 30 dBA
- Air flow efficiency
- 30,6 m³/h
- Rated current
- 70 mA
- Fan type
- Axial
