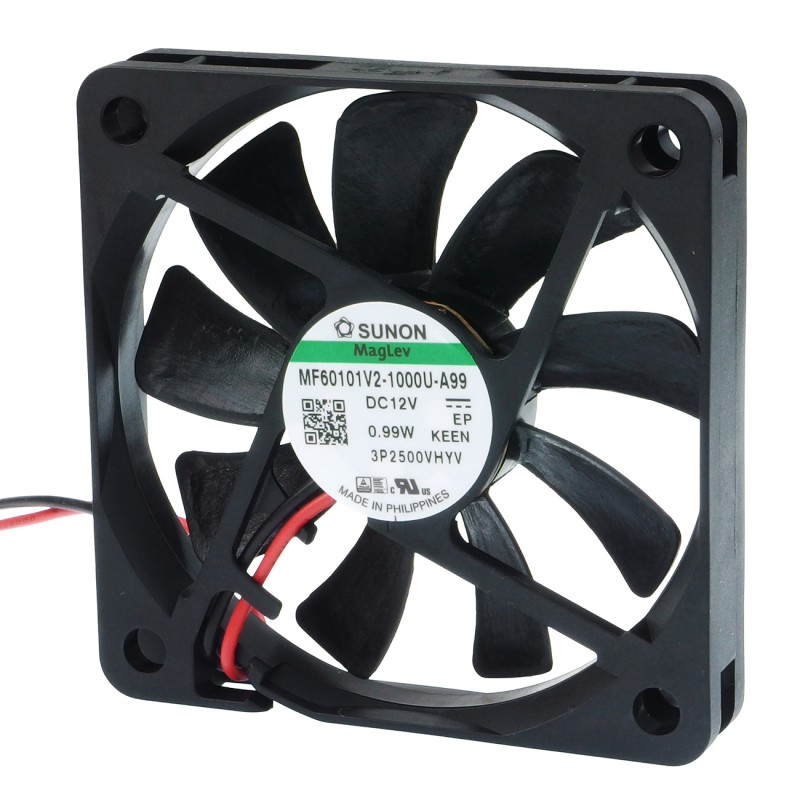

DC axial fan 0,9W 60x60x10 mm
ID: 1193652
5902186306578
zł17.90
Tax included
zł14.55 tax excl.
Wentylator SUNON o wymiarach 60x60x10 mm zapewnia efektywne chłodzenie i niski poziom hałasu, idealny do zastosowań w kompaktowych urządzeniach elektronicznych, oferując niezawodność i bezpieczeństwo dzięki funkcji autorestartu i solidnym materiałom. Sunon MF60101V2-1000U-A99
Description
SUNON axial fan with dimensions of 60x60x10 mm, designed to provide effective cooling in compact electronic devices. It operates in a wide voltage range from 4.5 to 13.8V, offering an efficiency of 24.17 m³/h with a power consumption of 0.9W. The fan speed is 3500 rpm, which allows for effective cooling while maintaining a low noise level of 25 dBA. Equipped with a brushless DC motor and a Vapo bearing, the fan ensures long service life and reliable operation. The thermoplastic housing and impeller meet stringent UL94V-0 and ECE R-118 flammability standards, which increases safety of use. Additionally, the fan has an auto-start function, which is important in the event of temporary power outages.
Properties
- Operating voltage: 4.5...13.8V
- Power consumption: 0.9W
- Rated current: 75mA
- Productivity: 24.17 m³/h
- Noise level: 25 dBA
- Rotational speed: 3500 rpm
- Current and power consumption tolerance: ±15%
- Bearing type: Vapo
- Static pressure: 2.54 mm H2O
- Insulation resistance: min. 10MΩ
- Housing and impeller material: thermoplastic
- Insulation class: A
- Flammability class: UL94V-0, ECE R-118
- Pinouts: cable x2
- Wire size: 26 AWG
- Cable length: 0.29 m
- Operating temperature: -10...70°C
- Additional functions: autorestart
- Motor: Brushless DC
1193652
Data sheet
- Voltage
- 4,5 - 13,8 V
- Power
- 0,9 W
- Length
- 60 mm
- Width
- 60 mm
- Height
- 10
- Weight
- Other
- Noise level
- 25 dBA
- Air flow efficiency
- 24,17 m³/h
- Rated current
- 75 mA
- Fan type
- Axial
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
