- New

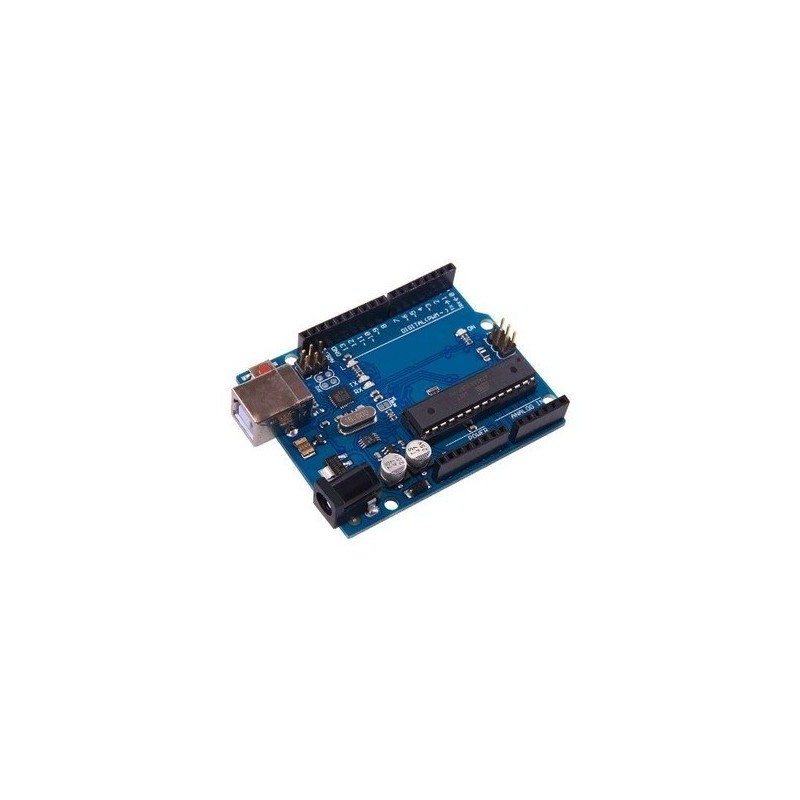

Płytka z mikrokontrolerem ATmega328P - zgodna z Arduino Uno R3
ID: 1196987
5906623498048
zł27.59
Tax included
zł22.43 tax excl.
Board with Atmel ATmega328P microcontroller from the AVR family, there are 14 I / O lines, 6 PWM channels and 6 analog inputs. The additional ATmega16U4 microcontroller realizes communication via the USB interface
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
Board with Atmel ATmega328P microcontroller from the AVR family, there are 14 I / O lines, 6 PWM channels and 6 analog inputs. The additional ATmega16U4 microcontroller realizes communication via the USB interface.
Features
- ATmega328P microcontroller (including 32 kB Flash memory - 2 kB occupied by the bootloader, 2 kB RAM, 1kB EEPROM memory)
- 14 digital input / output lines (6 of them can work in PWM mode)
- 6 analogue input lines
- 6-pin ISP programming connector
- Possibility to power from USB or from an additional power supply
- Reset microcontroller button
- Quartz resonator 16 MHz
Dimensions
Included
- Board with ATmega328P microcontroller
- USB A / USB B cable
1196987
Data sheet
- Microcontroller
- ATmega328P
- Core
- AVR
- Frequency
- 16MHz
- Flash memory
- 32kB
- RAM
- 2kB
- EEPROM memory
- 1kB
- Number of digital pins
- 20
- Number of PWM channels
- 6
- Ilość wejść analogowych
- 6
- ADC
- 1x 10bit
- DAC
- none
- CAN
- none
- USB
- 1
- Ethernet
- none
- WiFi/BT module
- No
- Bluetooth module
- No
- GSM/GPRS module
- No
- Logic voltage
- 5 V
- MicroSD slot
- No
- Supply voltage min
- 7
- Supply voltages max
- 12 V
